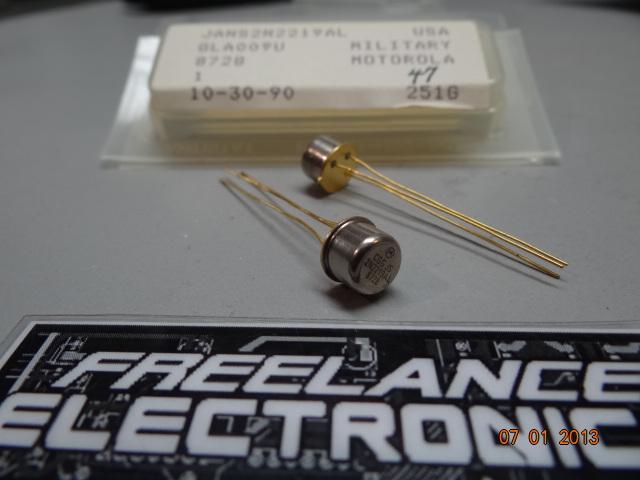

Motorola Corp JANS2N2219
Cross Number:
Item Description:
Trans GP BJT NPN 30V 0.8A 3-Pin TO-39
Additional Information:
- Category: TRANSISTOR
- Is Military Spec.: Yes
- Availability: In Stock
- Qty Available: 18
| Qty | Price |
|---|---|
| 1 - 1 | $464.60040 |
| 2 - 2 | $369.56850 |
| 3 - 3 | $348.45030 |
| 4 - 6 | $323.81240 |
| 7 + | $288.61540 |
Related Items
Technical Document
DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.
TECHNICAL DATA
NPN SWITCHING SILICON TRANSISTOR
Qualified per MIL-PRF-19500/251
Devices Qualified Level
2N2218
2N2218A
2N2218AL
2N2219
2N2219A
2N2219AL
JAN
JANTX
JANTXV
JANS
MAXIMUM RATINGS
Ratings Symbol
2N2218
2N2219
2N2218A; L
2N2219A; L
Unit
Collector-Emitter Voltage
V
CEO
30 50 Vdc
Collector-Base Voltage
V
CBO
60 75 Vdc
Emitter-Base Voltage
V
EBO
5.0 6.0 Vdc
Collector Current
I
C
800 mAdc
Total Power Dissipation @ T
A
= +25
0
C
(1)
@ T
C
= +25
0
C
(2)
P
T
0.8
3.0
W
W
Operating & Storage Junction Temp. Range
T
op
,
T
stg
-55 to +200
0
C
THERMAL CHARACTERISTICS
Characteristics Symbol Max. Unit
Thermal Resistance, Junction-to-Case
R
θJC
59
0
C/W
1) Derate linearly 4.6 mW/
0
C above T
A
> +25
0
C
2) Derate linearly 17.0 mW/
0
C above T
C
> +25
0
C
TO- 39* (TO-205AD)
2N2218, 2N2218A
2N2219, 2N2219A
TO-5*
2N2218AL,
2N2219AL
*See appendix A for
package outline
ELECTRICAL CHARACTERISTICS (T
A
= 25
0
C unless otherwise noted)
Characteristics Symbol Min. Max. Unit
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
I
E
= 10 mAdc 2N2218; 2N2219
2N2218A; L; 2N2219A; L
V
(BR)CEO
30
50
Vdc
Emitter-Base Cutoff Current
V
EB
= 5.0 Vdc 2N2218; 2N2219
V
EB
= 6.0 Vdc 2N2218A; L; 2N2219A; L
V
EB
= 4.0 Vdc All Types
I
EBO
10
10
10
µAdc
ηAdc
Collector-Base Cutoff Current
V
CE
= 30 Vdc 2N2218; 2N2219
V
CE
= 50 Vdc 2N2218A; L; 2N2219A; L
I
CES
10
10
ηAdc
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803
120101
Page 1 of 2
2N2218; A; AL; 2N2219; A; AL JAN SERIES
ELECTRICAL CHARACTERISTICS (con’t)
Characteristics Symbol Min. Max. Unit
Collector-Base Cutoff Current
V
CB
= 50 Vdc 2N2218; 2N2219
V
CB
= 60 Vdc 2N2218A; L; 2N2219A; L
V
CB
= 60 Vdc 2N2218; 2N2219
V
CB
= 75 Vdc 2N2218A; L, 2N2219A; L
I
CBO
10
10
10
10
ηAdc
µAdc
ON CHARACTERISTICS (3)
Forward-Current Transfer Ratio
I
C
= 0.1 mAdc, V
CE
= 10Vdc 2N2218
2N2219
2N2218A; 2N2218AL
2N2219A; 2N2219AL
I
C
= 1.0 mAdc, V
CE
= 10 Vdc 2N2218
2N2219
2N2218A; 2N2218AL
2N2219A; 2N2219AL
I
C
= 10 mAdc, V
CE
= 10 Vdc 2N2218
2N2219
2N2218A; 2N2218AL
2N2219A; 2N2219AL
I
C
= 150 mAdc, V
CE
= 10 Vdc 2N2218; A; 2N2218AL
2N2219; A; 2N2219AL
I
C
= 500 mAdc, V
CE
=10 Vdc 2N2218; A; 2N2218AL
2N2219; A; 2N2219AL
h
FE
20
35
30
50
25
50
35
75
35
75
40
100
40
100
20
30
150
325
150
325
120
300
Collector-Emitter Saturation Voltage
I
C
= 150 mAdc, I
B
= 15 mAdc 2N2218; 2N2219
2N2218A; L; 2N2219A; L
I
C
= 500 mAdc, I
B
= 50 mAdc 2N2218; 2N2219
2N2218; L; 2N2219A; L
V
CE(sat)
0.4
0.3
1.6
1.0
Vdc
Base-Emitter Saturation Voltage
I
C
= 150 mAdc, I
B
= 15 mAdc 2N2218; 2N2219
2N2218A; L, 2N2219A, L
I
C
= 500 mAdc, I
B
= 50 mAdc 2N2218; 2N2219
2N2218A; L; 2N2219A; L
V
BE(sat)
0.6
0.6
1.3
1.2
2.6
2.0
Vdc
DYNAMIC CHARACTERISTICS
Magnitude of Small-Signal Forward Current Transfer Ratio
I
C
= 20 mAdc, V
CE
= 20 Vdc, f = 100 MHz
h
fe
2.5 12
Small-Signal Forward Current Transfer Ratio
I
C
= 1.0 mAdc, V
CE
= 10 Vdc, f = 1.0 kHz 2N2218
2N2219
2N2218A, L
2N2219A, L
h
fe
25
50
35
75
Output Capacitance
V
CB
= 10 Vdc, I
E
= 0, 100 kHz ≤ f ≤ 1.0 MHz
C
obo
8.0 pF
Input Capacitance
V
EB
= 0.5 Vdc, I
C
= 0, 100 kHz ≤ f ≤ 1.0 MHz
C
ibo
25 pF
SWITCHING CHARACTERISTICS
V
CC
= 30 Vdc; I
C
= 150 mAdc; I
B1
= 15 mAdc
Turn-On Time 2N2218, 2N2219
(See Figure 3 of MIL-PRF-19500/251) 2N2218A, L, 2N2219A, L
t
on
40
35
ηs
Turn-Off Time 2N2218, 2N2219
(See Figure 4 of MIL-PRF-19500/251) 2N2218A, L, 2N2219A, L
t
off
250
300
ηs
(3) Pulse Test: Pulse Width = 300µs, Duty Cycle ≤ 2.0%.
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803
120101
Page 2 of 2
