MAX3100
SPI/Microwire-Compatible
UART in QSOP-16
10 ______________________________________________________________________________________

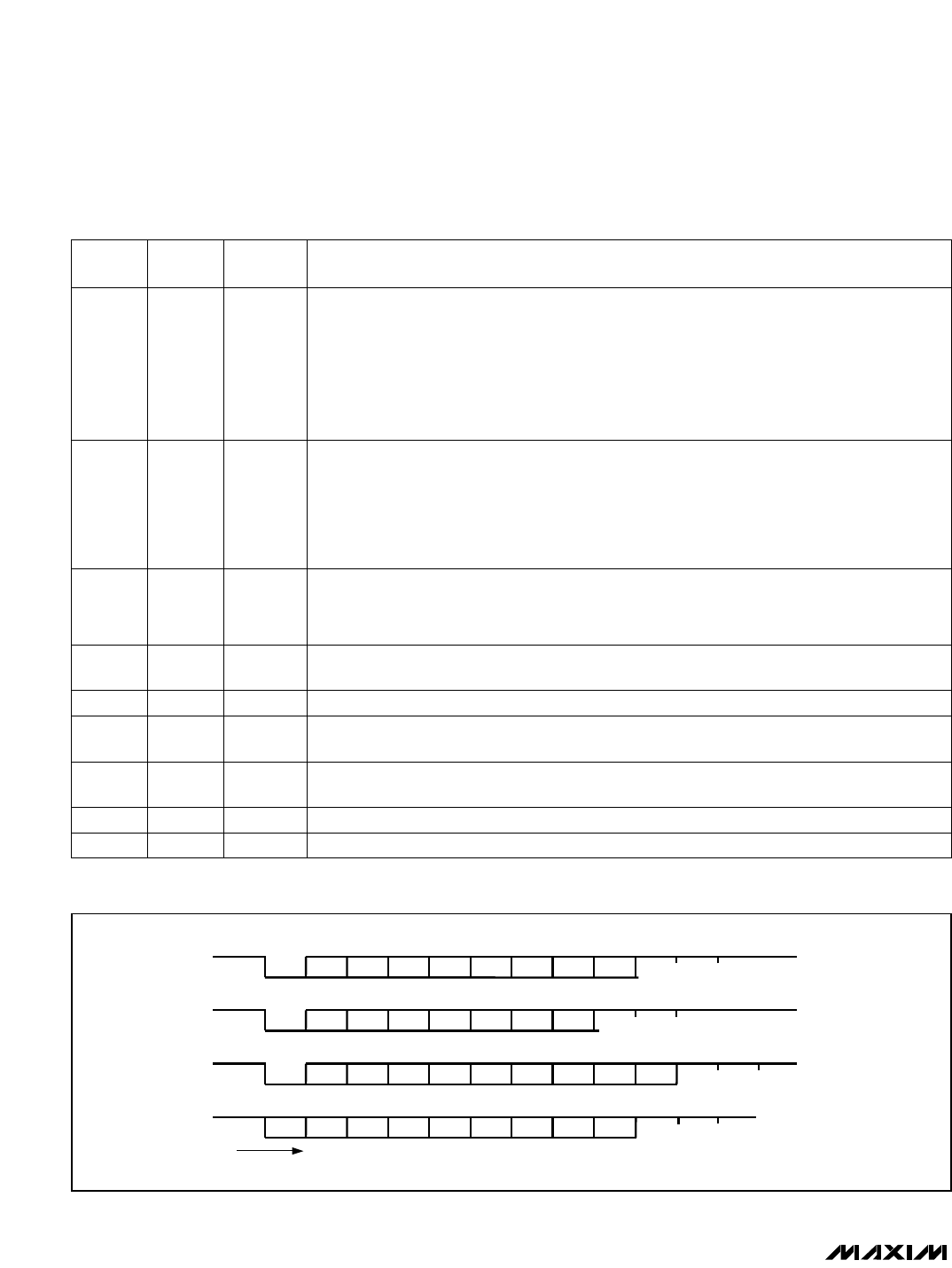

Table 5. Bit Descriptions (continued)
POR
STATE
DESCRIPTION
READ/
WRITE
BIT
NAME
0SHDNi w
Software-Shutdown Bit. Enter software shutdown with a write configuration where SHDNi = 1.
Software shutdown takes effect after CS goes high, and causes the oscillator to stop as soon
as the transmitter becomes idle. Software shutdown also clears R, T, RA/FE, D0r–D7r,
D0t–D7t, Pr, Pt, and all data in the receive FIFO. RTS and CTS can be read and updated
while in shutdown. Exit software shutdown with a write configuration where SHDNi = 0. The
oscillator restarts typically within 50ms of CS going high. RTS and CTS are unaffected. Refer
to the
Pin Description
for hardware shutdown (SHDN input).
0SHDNo r
Shutdown Read-Back Bit. The read-configuration register outputs SHDNo = 1 when the UART
is in shutdown. Note that this bit is not sent until the current byte in the transmitter is sent (T =
1). This tells the processor when it may shut down the RS-232 driver. This bit is also set imme-
diately when the device is shut down through the SHDN pin.
0RA/FE r
Receiver-Activity/Framing-Error Bit. In shutdown mode, this is the RA bit. In normal operation,
this is the FE bit. In shutdown mode, a transition on RX sets RA = 1. In normal mode, a fram-
ing error sets FE = 1. A framing error occurs if a zero is received when the first stop bit is
expected. FE is set when a framing error occurs, and cleared upon receipt of the next proper-
ly framed character independent of the FIFO being enabled. When the device wakes up, it is
likely that a framing error will occur. This error can be cleared with a write configuration. The
FE bit is not cleared on a Read Data operation. When an FE is encountered, the UART resets
itself to the state where it is looking for a start bit.
0ST w
Transmit-Stop Bit. One stop bit will be transmitted when ST = 0. Two stop bits will be transmit-
ted when ST = 1. The receiver only requires one stop bit.
0ST r Reads the value of the ST bit.
0
TM
w
Mask for T bit. IRQ is asserted if TM = 1 and T = 1 (Table 6).
0
TM
r
Reads the value of the TM bit (Table 6).
1T r
Transmit-Buffer-Empty Flag. T = 1 means that the transmit buffer is empty and ready to
accept another data word.
0
TE
w
Transmit-Enable Bit. If TE = 1, then only the RTS pin will be updated on CS’s rising edge. The
contents of RTS, Pt, and D0t–D7t transmit on CS’s rising edge when TE = 0.
IDLE
SECOND STOP BIT IS OMITTED IF ST = 0.
PE = 1, L = 1
TIME
D0START D1 D2 D3 D4 D5 D6 Pt
STOPSTOP
IDLE
IDLE
PE = 1, L = 0
D0START D1 D2 D3 D4 D5 D6 D7 Pt STOP STOP IDLE
IDLE
PE = 0, L = 1
D0START D1 D2 D3 D4 D5 D6 STOP STOP IDLE
IDLE
PE = 0, L = 0
D0START D1 D2 D3 D4 D5 D6 D7 STOP STOP IDLE
Figure 5. Parity and Word-Length Control
MAX3100
SPI/Microwire-Compatible
UART in QSOP-16
______________________________________________________________________________________ 11
IRQ
N
RM MASK
TM MASK
PM MASK
TRANSITION ON RX
SHUTDOWN
RAM MASK
FRAMING ERROR
SHUTDOWN
RAM MASK
R
S
Q
R
NEW DATA AVAILABLE
DATA READ
TRANSMIT BUFFER EMPTY
DATA READ
PE = 1 AND RECEIVED PARITY BIT = 1
PE = 0 OR RECEIVED PARITY BIT = 0
T
Pr
RA
FE
R
S
Q
R
S
Q
Figure 6. Interrupt Sources and Masks Functional Diagram

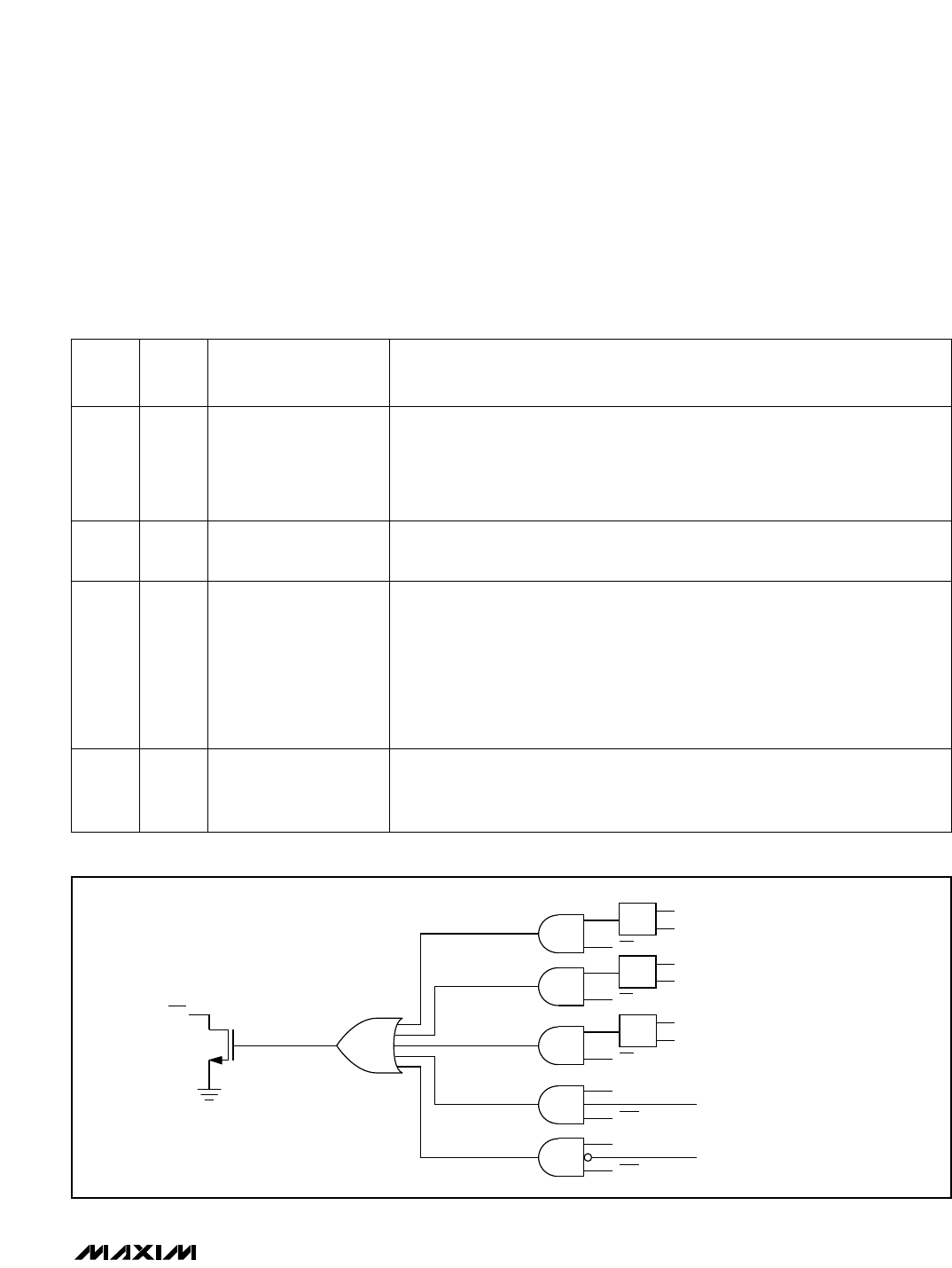

Table 6. Interrupt Sources and Masks—Bit Descriptions
MEANING
WHEN SET
DESCRIPTION
Received parity bit = 1
Transition on RX when
in shutdown; framing
error when not in
shutdown
RA/FE
RAM
This is the RA (RX-transition) bit in shutdown, and the FE (framing-error) bit in
operating mode. RA is set if there has been a transition on RX since entering
shutdown. RA is cleared when the MAX3100 exits shutdown. IRQ is asserted
when RA is set and RAM = 1.
FE is determined solely by the currently received data, and is not stored in FIFO.
The FE bit is set if a zero is received when the first stop bit is expected. FE is
cleared upon receipt of the next properly framed character. IRQ is asserted
when FE is set and RAM = 1.
MASK
BIT
Pr
PM
The Pr bit reflects the value in the word currently in the receive-buffer register
(oldest data available). The Pr bit is set when parity is enabled (PE = 1) and the
received parity bit is 1. The Pr bit is cleared either when parity is not enabled (PE
= 0), or when parity is enabled and the received bit is 0. An interrupt is issued
based on the oldest Pr value in the receiver FIFO. The oldest Pr value is the next
value that will be read by a Read Data operation.
BIT
NAME
Data availableR
RM
The R bit is set when new data is available to be read from the receive register/
FIFO. FIFO is cleared when all data has been read. An interrupt is asserted as long
as R = 1 and RM = 1.
Transmit buffer is
empty
T
TM
The T bit is set when the transmit buffer is ready to accept data. IRQ is asserted
low if TM = 1 and the transmit buffer becomes empty. This source is cleared on
CS’s rising edge during a Read Data operation. Although the interrupt is cleared,
T may be polled to determine transmit-buffer status.
Interrupt Sources and Masks
A Read Data operation clears the interrupt IRQ. Table
6 gives the details for each interrupt source. Figure 6
shows the functional diagram for the interrupt sources
and mask blocks.
Clock-Oscillator Baud Rates
Bits B0–B3 of the write-configuration register determine
the baud rate. Table 7 shows baud-rate divisors for given
input codes, as well as the given baud rate for
1.8432MHz and 3.6864MHz crystals. Note that the baud
rate = crystal frequency / 16x division ratio.
Shutdown Mode
In shutdown, the oscillator turns off to reduce power
dissipation (I
CC
< 10µA). The MAX3100 enters shut-
down in one of two ways: by a software command
(SHDNi bit = 1) or by a hardware command (SHDN =
logic low). The hardware shutdown is effective immedi-
ately and will immediately terminate any transmission in
progress. The software shutdown, requested by setting
SHDNi bit = 1, is entered upon completing the trans-
mission of the data in both the transmit register and the
transmit-buffer register. The SHDNo bit is set when the
MAX3100 enters shutdown (either hardware or soft-
ware). The microcontroller (µC) can monitor the SHDNo
bit to determine when all data has been transmitted,
and shut down any external circuitry (such as RS-232
transceivers) at that time.
Shutdown clears the receive FIFO, R, A, RA/FE,
D0r–D7r, Pr, and Pt registers and sets the T bit high.
Configuration bits (RM, TM, PM, RAM, IR, ST, PE, L,
B0-3, and RTS) can be modified when SHDNo = 1 and
CTS can also be read. Even though RA is reset upon
entering shutdown, it will go high when any transitions
are detected on the RX pin. This allows the UART to
monitor activity on the receiver when in shutdown.
The command to power up (SHDNi = 0) turns on the
oscillator when CS goes high if SHDN pin = logic high,
with a start-up time of about 25ms. This is done through
a write configuration, which clears all registers but RTS
and CTS. Since the crystal oscillator typically requires
25ms to start, the first received characters will be gar-
bled, and a framing error may occur.
__________Applications Information
Driving Opto-Couplers
Figure 7 shows the MAX3100 in an isolated serial inter-
face. The MAX3100 Schmitt-trigger inputs are driven
directly by opto-coupler outputs. Isolated power is pro-
vided by the MAX845 transformer driver and linear reg-
ulator shown. A significant feature of this application is
that the opto-coupler’s skew does not affect the asyn-
chronous serial output’s timing. Only the set-up and
hold times of the SPI interface need to be met.
Figure 8 shows a bidirectional opto-isolated interface
using only two opto-isolators. Over 81% power savings
is realized using IrDA mode due to its 3/16-wide baud
periods.
Crystal-Oscillator Operation—
X1, X2 Connection
The MAX3100 includes a crystal oscillator for baud-rate
generation. For standard baud rates, use a 1.8432MHz
or 3.6864MHz crystal. The 1.8432MHz crystal results in
lower operating current; however, the 3.6864MHz crys-
tal may be more readily available in surface mount.
Ceramic resonators are low-cost alternatives to crystals
and operate similarly, though the “Q” and accuracy are
lower. Some ceramic resonators are available with inte-
gral load capacitors, which can further reduce cost.
The tradeoff between crystals and ceramic resonators
is in initial frequency accuracy and temperature drift.
The total error in the baud-rate generator should be
kept below 1% for reliable operation with other sys-
tems. This is accomplished easily with a crystal, and in
most cases can be achieved with ceramic resonators.
Table 8 lists the different types of crystals and res-
onators and their suppliers.
MAX3100
SPI/Microwire-Compatible
UART in QSOP-16
12 ______________________________________________________________________________________
Table 7. Baud-Rate Selection Table*
*Standard baud rates shown in bold
**Default baud rate
115.2k
230.4k**
BAUD
RATE
(f
OSC
=
3.6864MHz)
BAUD
B3 B2 B1 B0
20 0 0 1
10 0 0 0**
DIVISION
RATIO
57.6k
115.2k**
BAUD
RATE
(f
OSC
=
1.8432MHz)
28.8k
57.6k
80 0 1 1
40 0 1 0
14.4k
28.8k
7200
14.4k
1800
3600
1280 1 1 1
640 1 1 0
900
1800
320 1 0 1
160 1 0 0
3600
7200
38.4k
76.8k
9600
19.2k
241 0 1 1
121 0 1 0
4800
9600
2400
4800
600
1200
3841 1 1 1
1921 1 1 0
300
600
961 1 0 1
481 1 0 0
1200
2400
61 0 0 1
31 0 0 0
19.2k
38.4k
