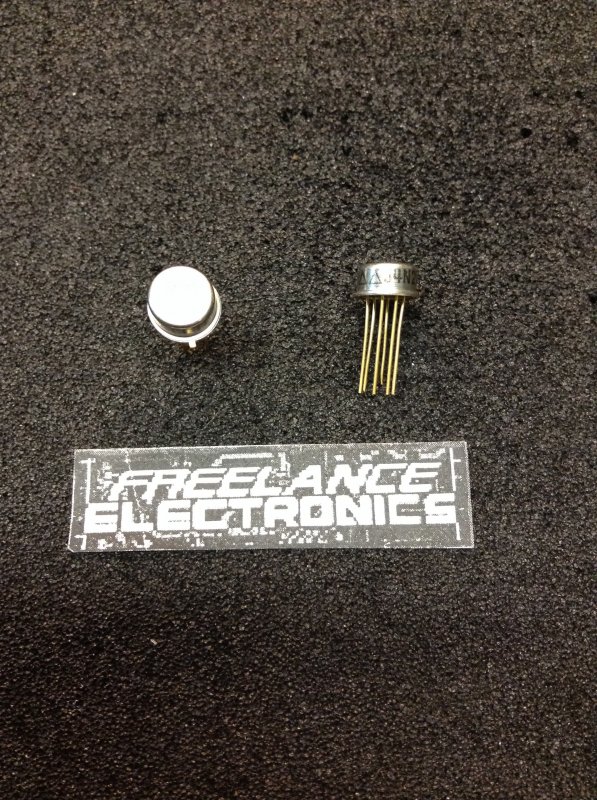

Item Description: OPTOISO 1KV TRANS W/BASE TO78-6

Qty Price
1 - 3 $19.80000
4 - 7 $15.45000
8 - 10 $13.50000
11 - 14 $13.05000
15 + $11.70000



Other Cross Reference

Manufacturer Date Code Qty Available Qty
OPTEK 8040
  • Freelance Stock: 1
    Ships Immediately


MICROPAC INDUSTRIES INC 8351
  • Freelance Stock: 14
    Ships Immediately


OPTEK 9029
  • Freelance Stock: 2
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION
725 E. Walnut St., Garland, TX 75040
(972) 272-3571
Fax (972) 487-6918
www.micropac.com
E-MAIL: optosales@microropac.com
3 - 10
4N22A
4N23A
JAN, JANTX, JANTXV,
SINGLE CHANNEL OPTOCOUPLERS
4N24A
Mii
OPTOELECTRONIC PRODUCTS
DIVISION
Features:
Collector is electrically isolated from the case.
Overall current gain...1.5 typical (4N24A)
Base lead provided for conventional transistor
biasing
Rugged package
High gain, high voltage transistor
+1kV electrical isolation
Applications:
Eliminate ground loops
Level shifting
Line receiver
Switching power supplies
Motor control
DESCRIPTION
Gallium Aluminum Arsenide (GaAlAs) infrared LED and a high gain N-P-N silicon phototransistor packaged in a hermetically
sealed metal case. The 4N22A, 4N23A and 4N24A can be tested to customer specifications, as well as to MIL-PRF-19500
JAN, JANS, JANTX, and JANTXV quality levels.
*ABSOLUTE MAXIMUM RATINGS
Input to Output Voltage.............................................................................................................................................................
±
1kV
Emitter-Collector Voltage..............................................................................................................................................................4V
Collector-Emitter Voltage............................................................................................................................................................35V
Collector-Base Voltage ...............................................................................................................................................................35V
Reverse Input Voltage .................................................................................................................................................................2V
Input Diode Continuous Forward Current at (or below) 65°C Free-Air Temperature (see note 1) ....................................... 40mA
Peak Forward Input Current (Value applies for tw
<
1
µ
s, PRR
<
300 pps) .................................................................................1A
Continuous Collector Current ................................................................................................................................................. 50mA
Continuous Transistor Power Dissipation at (or below) 25°C Free-Air Temperature (see Note 2) ................................... 300mW
Storage Temperature............................................................................................................................................. -65°C to +125°C
Operating Free-Air Temperature Range ............................................................................................................... -55°C to +125°C
Lead Solder Temperature (1/16” (1.6mm) from case for 10 seconds) ..................................................................................240°C
Notes:
1. Derate linearly to 125°C free-air temperature at the rate of 0.67 mA/°C above 65°C.
2. Derate linearly to 125°C free-air temperature at the rate of 5 mW/°C.
* JEDEC registered data
Package Dimensions Schematic Diagram
NOTE: ALL LINEAR DIMENSIONS ARE IN INCHES (MILLIMETERS)
6 LEADS
0.016Ø [0.41]
0.019Ø [0.48]
1
2
3
5
6
7
0.335 [8.51]
0.305 [7.75]
MIN.
0.040 [1.02]
MAX.
0.500 [12.70]
0.155 [3.94]
0.185 [4.70]
0.045 [1.14]
0.029 [0.73]
0.034 [0.864]
0.028 [0.711]
45°
TO5
0.022Ø [5.08]
7
K
A
5
2
B
E
1
3
C
MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION
725 E. Walnut St., Garland, TX 75040
(972) 272-3571
Fax (972) 487-6918
www.micropac.com
E-MAIL: optosales@microropac.com
3 - 11
4N22A, 4N23A, and 4N24A
JAN, JANTX, JANTXV, SINGLE CHANNEL OPTOCOUPLERS
*ELECTRICAL CHARACTERISTICS INPUT LED
T
A
= 25
°
C Unless otherwise specified
PARAMETER SYMBOL MIN MAX UNITS TEST CONDITIONS NOTE
Input Diode Static Reverse Current I
R
100 µA V
R
= 2V
Input Diode Static Forward Voltage -55
°
C
+25
°
C
+125
°
C
V
F
1
0.8
0.7
1.5
1.3
1.2
VI
F
= 10mA
*OUTPUT TRANSISTOR
T
A
= 25
°
C Unless otherwise specified
PARAMETER SYMBOL MIN MAX UNITS TEST CONDITIONS NOTE
Collector-Base Breakdown Voltage V
(BR)CBO
35 V I
C
= 100
µ
A, I
B
= 0, I
F
= 0
Collector-Emitter Breakdown Voltage V
(BR)CEO
35 V I
C
= 1mA, I
B
= 0, I
F
= 0
Emitter-Base Breakdown Voltage V
(BR)EBO
4VI
C
= 0, I
E
= 100
µ
A, I
F
= 0
*COUPLED CHARACTERISTICS
T
A
= 25
°
C Unless otherwise specified
PARAMETER SYMBOL MIN MAX UNITS TEST CONDITIONS NOTE
On State Collector Current 4N22A
4N23A
4N24A
I
C(ON)
0.15
0.2
0.4
mA V
CE
= 5V, I
B
= 0, I
F
= 2mA
On State Collector Current 4N22A
4N23A
4N24A
I
C(ON)
2.5
6
10
mA
V
CE
= 5V, I
B
= 0, I
F
= 10mA
On State Collector Current 4N22A
-55
°
C 4N23A
4N24A
I
C(ON)
1
2.5
4
mA
V
CE
= 5V, I
B
= 0, I
F
= 10mA
On State Collector Current 4N22A
+100
°
C 4N23A
4N24A
I
C(ON)
1
2.5
4
mA
V
CE
= 5V, I
B
= 0, I
F
= 10mA
Off State Collector Current +25
°
CI
C(OFF)
100 nA V
CE
= 20V, I
B
= 0, I
F
= 0mA
Off State Collector Current +100
°
CI
C(OFF)
100
µ
AV
CE
= 20V, I
B
= 0, I
F
= 0mA
Collector-Emitter Saturation Voltage 4N22A
4N23A
4N24A
V
CE(SAT)
V
CE(SAT)
V
CE(SAT)
0.3
0.3
0.3
V
V
V
I
C
= 2.5mA, I
B
= 0, I
F
= 20mA
I
C
= 5mA, I
B
= 0, I
F
= 20mA
I
C
= 10mA, I
B
= 0, I
F
= 20mA
Input to Output Resistance
R
I-O
10
11
V
IN-OUT
= 1kV
1
Input to Output Capacitance
C
I-O
5pF
F = 1MHz, V
IN-OUT
= 1kV
1
Rise Time 4N22A
4N23A
4N24A
t
r
t
r
t
r
15
15
20
µ
s
µs
µ
s
V
CC
= 10V, I
F
= 10mA, R
L
= 100
Fall Time 4N22A
4N23A
4N24A
t
f
t
f
t
f
15
15
20
µ
s
µs
µ
s
V
CC
=10V, I
F
= 10mA, R
L
= 100
NOTES:
1. These parameters are measured between all phototransistor leads shorted together and with both input diode leads shorted together.
MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION
725 E. Walnut St., Garland, TX 75040
(972) 272-3571
Fax (972) 487-6918
www.micropac.com
E-MAIL: optosales@microropac.com
3 - 12
4N22A, 4N23A, and 4N24A
JAN, JANTX, JANTXV, SINGLE CHANNEL OPTOCOUPLERS
RECOMMENDED OPERATING CONDITIONS:
PARAMETER SYMBOL MIN MAX UNITS
Input Current, Low Level I
FL
0100
µ
A
Input Current, High Level I
FH
210mA
Supply Voltage V
CE
510 V
SELECTION GUIDE
PART NUMBER PART DESCRIPTION
JAN4N22A 4N22A Optocoupler, JAN Screening level
JAN4N23A 4N23A Optocoupler, JAN Screening level
JAN4N24A 4N24A Optocoupler, JAN Screening level
JANTX4N22A 4N22A Optocoupler, JANTX Screening level
JANTX4N23A 4N23A Optocoupler, JANTX Screening level
JANTX4N24A 4N24A Optocoupler, JANTX Screening level
JANTXV4N22A 4N22A Optocoupler, JANTXV Screening level
JANTXV4N23A 4N23A Optocoupler, JANTXV Screening level
JANTXV4N24A 4N24A Optocoupler, JANTXV Screening level
