PACKAGE

SCHEMATIC

1/21/04

Page 1 of 12

6-PIN DIP OPTOCOUPLERS FOR

POWER SUPPLY APPLICATIONS

(NO BASE CONNECTION)

MOC8101 MOC8102 MOC8103 MOC8104

MOC8105 MOC8106 MOC8107 MOC8108

CNY17F-1 CNY17F-2 CNY17F-3 CNY17F-4

FEATURES

The MOC810X and CNY17F-X devices consist of a gallium arsenide LED optically coupled to a silicon phototransistor in a dual-in-

line package.

• Closely Matched Current Transfer Ratio (CTR) Minimizes Unit-to-Unit Variation

• Narrow (CTR) Windows that Translate to a Narrow and Predictable Open Loop Gain Window

•Very Low Coupled Capacitance along with No Chip to Pin 6 Base Connection for Minimum Noise Susceptibility

•To order devices that are tested and marked per VDE 0884 requirements, the sufﬁx “.300” must be included at the end

of part number. e.g. MOC8101.300 VDE 0884 is a test option.

APPLICATIONS

• Switchmode Power Supplies (Feedback Control)

•AC Line/Digital Logic Isolation

• Interfacing and coupling systems of different potentials and impedances

6

1

6

1

6

1

2

1

3NC

5

6NC

PIN 1. ANODE

2. CATHODE

3. NO CONNECTION

4. EMITTER

5. COLLECTOR

6. NO CONNECTION

4

1/21/04

Page 2 of 12

6-PIN DIP OPTOCOUPLERS FOR

POWER SUPPLY APPLICATIONS

(NO BASE CONNECTION)

MOC8101 MOC8102 MOC8103 MOC8104

MOC8105 MOC8106 MOC8107 MOC8108

CNY17F-1 CNY17F-2 CNY17F-3 CNY17F-4

ABSOLUTE MAXIMUM RATINGS

(T

A

=25°C Unless otherwise speciﬁed)

Parameter Symbol Value Unit

INPUT LED

Forward Current - Continuous I

F

100 mA

Forward Current - Peak (PW = 1µs, 300pps) I

F

(pk) 1 A

Reverse Voltage V

R

6Volts

LED Power Dissipation @ T

A

= 25°C

P

D

150 mW

Derate above 25°C 2.0 mW/°C

OUTPUT TRANSISTOR

Collector-Emitter Voltage

MOC8106/7/8, CNY17F-1/2/3/4

V

CEO

70

Volts

MOC8101/2/3/4/5 30

Emitter-Collector Voltage V

ECO

7Volts

Detector Power Dissipation @ T

A

= 25°C

P

D

150 mW

Derate above 25°C 2.0 mW/°C

TOTAL DEVICE

Input-Output Isolation Voltage

V

ISO

5300 Vac(rms)

(f = 60 Hz, t = 1 min.)

Total Device Power Dissipation @ T

A

= 25°C

P

D

250 mW

Derate above 25°C 3.3 mW/°C

Ambient Operating Temperature Range T

OPR

-55 to +100 °C

Storage Temperature Range T

STG

-55 to +150 °C

Lead Soldering Temperature

T

SOL

260 °C

(1/16” from case, 10 sec. duration)

1/21/04

Page 3 of 12

6-PIN DIP OPTOCOUPLERS FOR

POWER SUPPLY APPLICATIONS

(NO BASE CONNECTION)

MOC8101 MOC8102 MOC8103 MOC8104

MOC8105 MOC8106 MOC8107 MOC8108

CNY17F-1 CNY17F-2 CNY17F-3 CNY17F-4

** All typicals at T

A

= 25°C

ELECTRICAL CHARACTERISTICS

(T

A

=25°C Unless otherwise speciﬁed)

(1)

Characteristic Symbol Min Typ** Max Unit

INPUT LED

Forward Voltage (I

F

= 60 mA) CNY17F-X V

F

— 1.40 1.65 V

(I

F

= 10 mA) MOC810X 1.0 1.18 1.5

Reverse Leakage Current (V

R

= 5.0 V) I

R

— 0.001 10 µA

Capacitance C — 18 — pF

OUTPUT TRANSISTOR

Collector-Emitter Dark Current (V

CE

= 10 V, T

A

= 25°C) I

CEO1

— 1.0 50 nA

(V

CE

= 10 V, T

A

= 100°C) I

CEO2

— 1.0 — µA

Collector-Emitter Breakdown Voltage

MOC8101/2/3/4/5 (I

C

= 1.0 mA)

V

(BR) CEO

30 100 —

V

MOC8106/7/8, CNY17F-1/2/3/4 (I

C

= 1.0 mA) 70 100 —

Emitter-Collector Breakdown Voltage (I

E

= 100 µA) V

(BR) ECO

7.0 10 — V

Collector-Emitter Capacitance (f = 1.0 MHz, V

CE

= 0) C

CE

—8—pF

COUPLED

Output Collector Current

(I

F

= 10 mA, V

CE

= 10 V)

MOC8101

(CTR)

(2)

50—80

%

MOC8102 73 — 117

MOC8103 108 — 173

MOC8104 160 — 256

MOC8105 65 — 133

MOC8106 50 — 150

MOC8107 100 — 300

MOC8108 250 — 600

(I

F

= 10 mA, V

CE

= 5 V)

CNY17F-1 40 — 80

CNY17F-2 63 — 125

CNY17F-3 100 — 200

CNY17F-4 160 — 320

Collector-Emitter Saturation Voltage

CNY17F-1/2/3/4 (I

C

= 2.5 mA, I

F

= 10 mA)

V

CE(sat)

——0.4 V

MOC8101/2/3/4/5/6/7/8 (I

C

= 500 µA, I

F

= 5.0 mA)

Isolation Voltage (f = 60 Hz, t = 1.0 min.)

(4)

V

ISO

5300 — — Vac(rms)

Isolation Resistance (V

I-O

= 500 V)

(4)

R

ISO

10

11

——

Ω

Isolation Capacitance (V

I-O

= 0, f = 1.0 MHz)

(4)

C

ISO

— 0.5 — pF

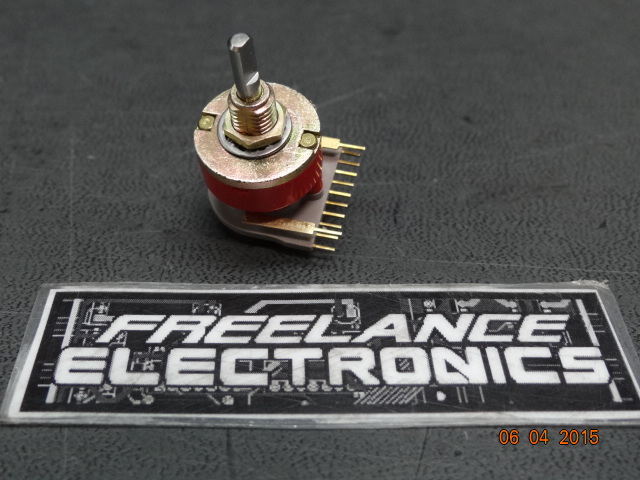

Part #	81073
