Part Number:
0191930184
Status:
Active
Description: VersaKrimp™ Ring Tongue Terminal for 8 AWG Wire
Documents:
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Agency Certification
CSA LR18689
UL E32244
General
Product Family Ring and Spade Terminals
Series 19193
Crimp Quality Equipment Yes
Mil-Spec N/A
Product Name VersaKrimp™
Type Ring
Physical
Barrel Type Closed - Brazed
Insulation None
Material - Plating Mating Tin
Packaging Type Bag
Stud Size 3/8" (M9)
Termination Interface: Style Crimp or Compression
Wire Size AWG 8
Wire Size mm² 0.60 - 10.5
Material Info
Old Part Number D-352-38
Reference - Drawing Numbers
Sales Drawing SD-19193-036
Series

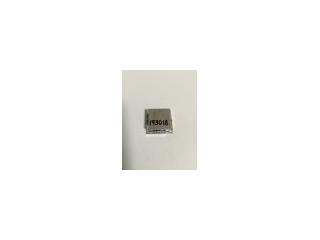

image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19193Series
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Putt Pump Dieless
Head System
0192860065
Manual Putt Pump
Hydraulic System,
Die set required
0192860117
Die Set (large) for
the HHLS Hydralic
Crimper
0192900001
Hand Crimp Tool 0640013900
Crimp Head for the
AT-200™ Pneumatic
Hand Tool
0640074400
