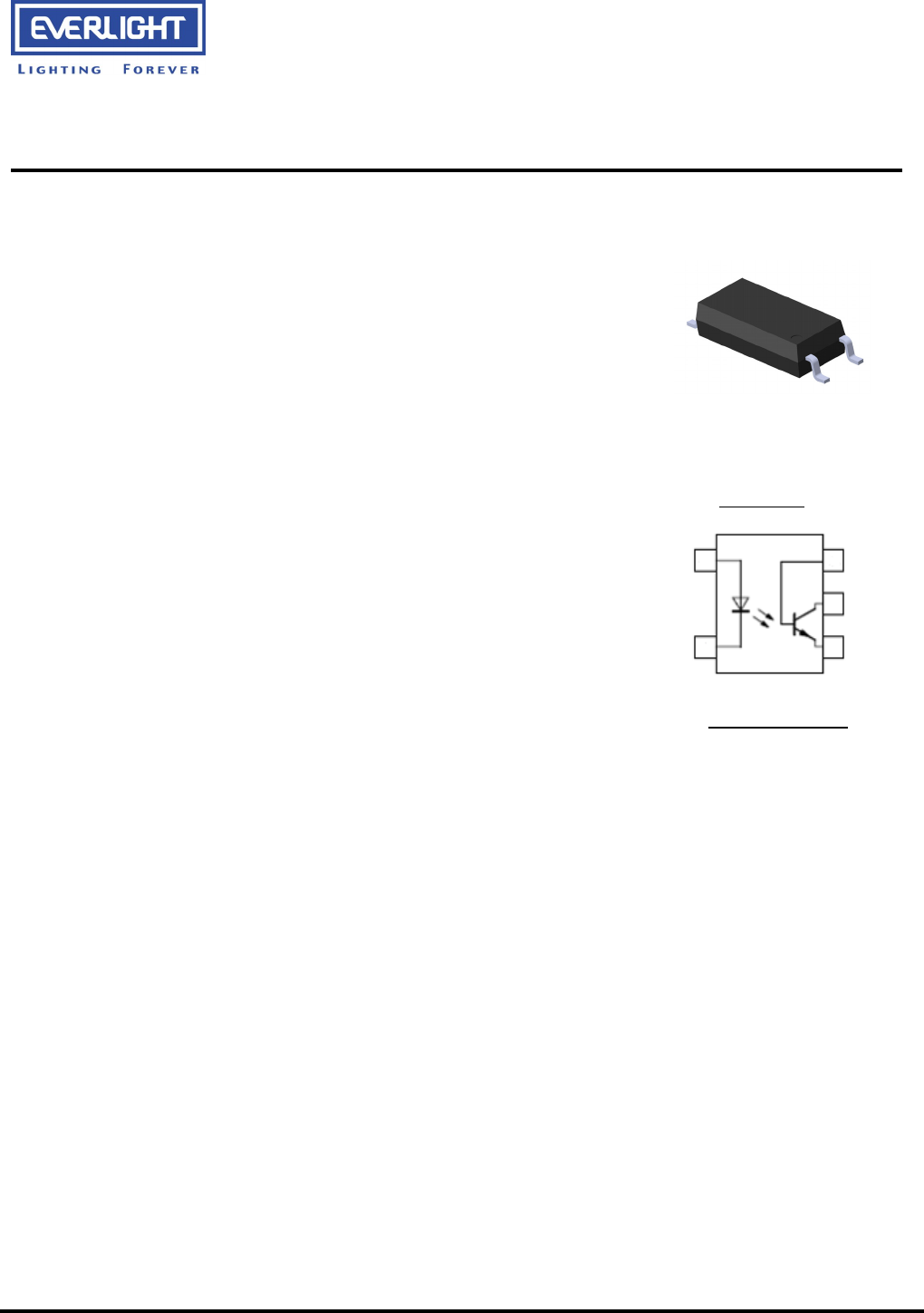

5 PIN LONG CREEPAGE SOP
PHOTOTRANSISTOR PHOTOCOUPLER
Everlight Electronics Co., Ltd. 1 http://www.everlight.com
Document NoDPC-0000040 Rev. 2 February 2, 2010
EL111X-G Series
Features:
Free halogens compliant
Current transfer ratio
(CTR: 50~600% at I
F
=5mA, V
CE
=5V)
(CTR: 63~320% at I
F
=10mA, V
CE
=5V)
High isolation voltage between input
and output (Viso=5000 V rms )
Compact 5 Pin SOP with a 2.0 mm profile
8mm long creepage distance
Pb free and RoHS compliant.
CUL approval (No. E214129)
VDE approval (No. 40028391)
SEMKO approved (pending)
NEMKO approved (pending)
DEMKO approved (pending)
FIMKO approved (pending)
Description
The EL111X-G series devices consist of an infrared
emitting diode, optically coupled to a phototransistor
detector. Compound use free halogens and Sb
2
O
3.
They are packaged in a 5-pin SOP package.
Applications
Programmable controllers
System appliances, measuring instruments
Telecommunication equipments
Home appliances, such as fan heaters, etc.
Signal transmission between circuits of different potentials and impedances
Pin Configuration
1. Anode
2. Cathode
3. Emitter
4. Collector
5. Base
Schematic
1
5
4
2
3
5 PIN LONG CREEPAGE SOP
PHOTOTRANSISTOR PHOTOCOUPLER
Everlight Electronics Co., Ltd. 2 http://www.everlight.com
Document NoDPC-0000040 Rev. 2 February 2, 2010
EL111X-G Series
Absolute Maximum Ratings (T
a
=25°C)
Parameter Symbol Rating Unit
Forward current
I
F
60 mA
Peak forward current (1us, pulse)
I
FP
1.5 A
Reverse voltage
V
R
6 V
Input
Power dissipation
P
D
100 mW
Power dissipation
P
C
150 mW
Collector current
I
C
50 mA
Collector-Emitter voltage
V
CEO
80 V
Output
Emitter-Collector voltage
V
ECO
7 V
Total power dissipation
P
TOT
250 mW
Isolation voltage
*1
V
ISO
5000 V rms
Operating temperature
T
OPR
-55 ~ +110 °C
Storage temperature
T
STG
-55 ~ +125 °C
Soldering temperature
*2
T
SOL
260 °C
Notes
*1
AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1 & 2 are shorted together, and pins 3 & 4
are shorted together.
*2
For 10 seconds.
5 PIN LONG CREEPAGE SOP
PHOTOTRANSISTOR PHOTOCOUPLER
Everlight Electronics Co., Ltd. 3 http://www.everlight.com
Document NoDPC-0000040 Rev. 2 February 2, 2010
EL111X-G Series
Electrical Characteristics (T
a
=25°C unless specified otherwise)
Input
Parameter Symbol Min. Typ.* Max. Unit Condition
Forward voltage
V
F
- - 1.5 V
I
F
= 50mA
Reverse current
I
R
- - 10 µA
V
R
= 6V
Input capacitance
C
in
- 50 - pF V = 0, f = 1kHz
Output
Parameter Symbol Min. Typ.* Max. Unit Condition
Collector-Emitter dark
current
I
CEO
- - 100 nA
V
CE
= 20V, I
F
= 0mA
Collector-Emitter
breakdown voltage
BV
CEO
80 - -
V
I
C
= 0.1mA
Emitter-Collector
breakdown voltage
BV
ECO
7 - - V
I
E
= 0.1mA
Transfer Characteristics (T
a
=25°C unless specified otherwise)
Parameter Symbol Min. Typ.* Max. Unit Condition
EL1110 50 - 600
EL1116 100 - 300
EL1117 80 - 160
EL1118 130 - 260
EL1119
CTR
200 - 400
%
I
F
= 5mA ,V
CE
= 5V
EL1112 63 - 125
EL1113 100 - 200
EL1114 160 - 320
I
F
= 10mA ,V
CE
= 5V
EL1112 22 - -
EL1113 34 - -
Current Transfer
ratio
EL1114
CTR
56 - -
%
I
F
= 1mA ,V
CE
= 5V
Collector-Emitter
saturation voltage
V
CE(sat)
- - 0.4
V
I
F
= 10mA ,I
C
= 1mA
Isolation resistance
R
IO
5×10
10
- -
Ω
V
IO
= 500Vdc,
40~60% R.H.
Floating capacitance
C
IO
- - 1.0 pF
V
IO
= 0, f = 1MHz
