Li-SO
2
primary battery system
BA 5599 A/U
Assembled from 3 LO 26 SX cells
connected in series.
Key features
A non-replaceable fuse is
incorporated in the negative leg.
A normally closed thermal fuse
(TCO) is incorporated in the
battery. It is non-replaceable
and non-resetable.
A diode is incorporated to
prevent charging or flow of
current into the battery.
A device consisting of a
manually activated switch and
resistor designed to discharge
the battery to 0 V is built into
the battery.
Made in the USA
Typical applications
AN/PAS-9 Mine Detector
AN/PAS-6 Metascope
Mar
ch 2006
Electrical Characteristics
Typical OCV (V) 9.0
Nominal voltage (at 500mA) (V) 8.1
Cut-off (V) 6.0
Typical Capacity (Ah) +21 °C / + 70 °F 7.5
(at 250 mA discharge current)
Operating temperature -40° C to 71° C
-40° F to 160° F
Storage Recommended max +35°C/ +95°F
Possible -40° C to 71° C / -40° F to 160° F
Physical Characteristics
T
ypical W
eight (g/oz) 450 / 15.9
Weight of Li metal content (g/oz) 7.2 / 0.25
Max. W
idth (mm/ in)
152 / 6.0
Max. Height (mm/ in) 64 / 2.5
Max. Depth (mm/ in) 38 / 1.5
Battery Case Plastic
Refer
ences
Mating Connector ITT Cannon CA110821-6
Reference specifications MIL PRF 49471B (CR) or Saft Standard Specifications
NSN Reference 6135-01-069-8575
Saft
Specialty Battery Group
12, rue Sadi Carnot
93170 Bagnolet - France
Tel: +33 (0)1 49 93 19 18
Fax: +33 (0)1 49 93 19 69
313 Crescent Street
Valdese NC 28690 - USA
T
el: +1
(828) 874 4111
Fax: +1 (828) 874 2431
www.saftbatteries.com
Doc N° 31068-2-0306
Data in this document is subject to change without notice and
becomes contractual only after written
confirmation.

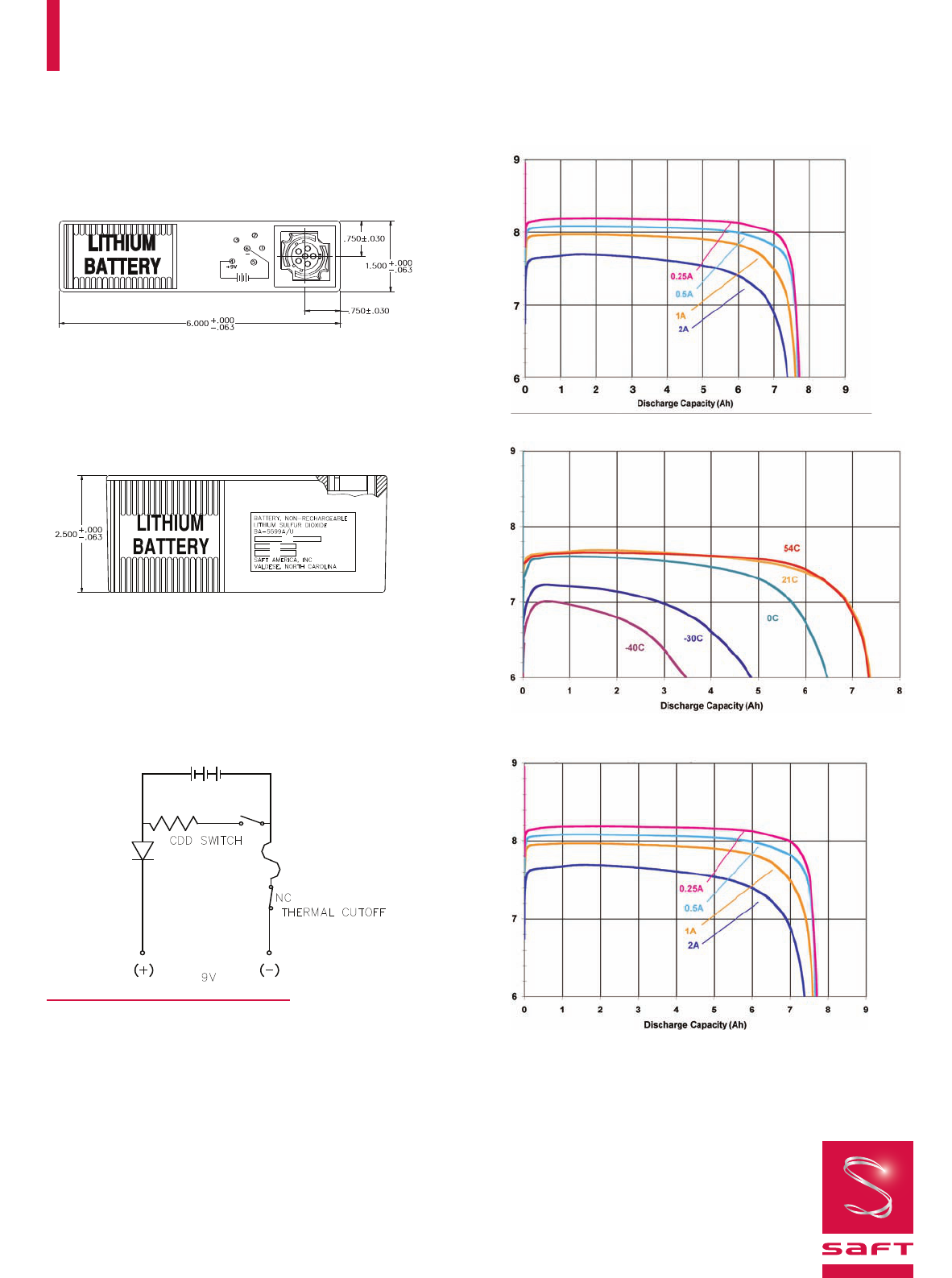

BA 5599 A/U dimensions Capacity vs rate at various temperatures
*
All measurements in inches
2 A discharge typical curves at various temperatures
Electrical schematic Typical discharge curves at various rates at +21ºC/+70ºF
Voltage (V)
Voltage (V)
Voltage (V)
