KINGBRIGHT AA3528SURCK

Cross Number:

Item Description: 1.95 V Chip LED Lamp SMT

Qty Price
1 - 1,050 $0.10890
1,051 - 2,100 $0.08498
2,101 - 3,150 $0.07425
3,151 - 4,200 $0.06930
4,201 + $0.06435



Other Cross Reference

Manufacturer Date Code Qty Available Qty
KINGBRIGHT 1006
  • Freelance Stock: 5000
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

SPEC NO: DSAA6808 REV NO: V.6 DATE: MAR/21/2005 PAGE: 1 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU ERP:1201000394

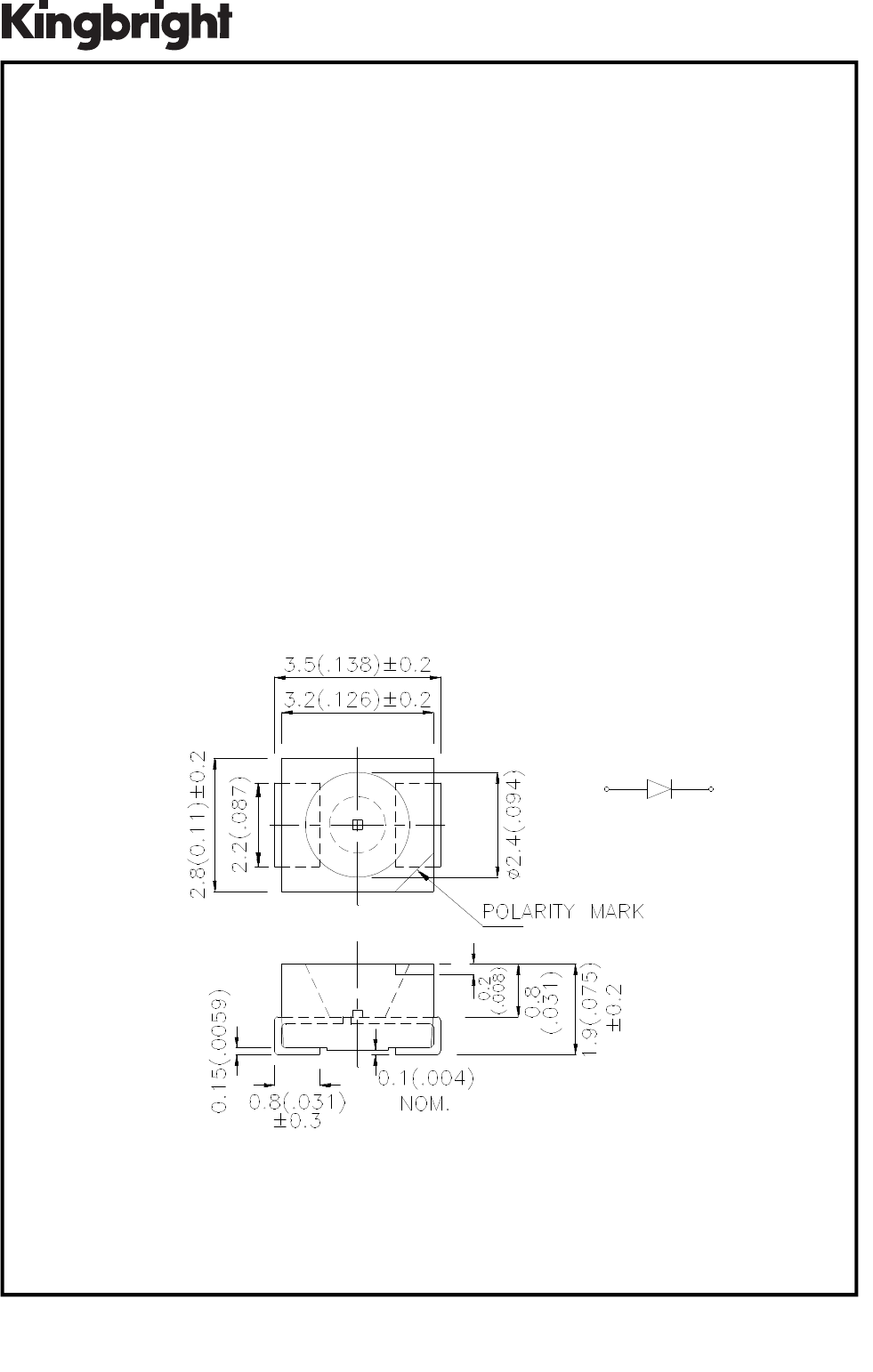

Package Dimensions
AA3528SURCK HYPER RED
Description
The Hyper Red source color devices are made with DH
InGaAlP on GaAs substrate Light Emitting Diode.
3.5x2.8 mm SMD CHIP LED LAMP
Features
SINGLE COLOR.
SUITABLE FOR ALL SMT ASSEMBLY AND SOLDER
PROCESS.
AVAILABLE ON TAPE AND REEL.
IDEAL FOR BACKLIGHTING.
PACKAGE : 1500PCS / REEL.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAA6808 REV NO: V.6 DATE: MAR/21/2005 PAGE: 2 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU ERP:1201000394
Selection Guide
Part No. Dice Lens Type
Iv (mcd)
@ 20mA
Viewing
Angle
Min. Typ. 2θ
θθ
θ1/2
AA3528SURCK HYPER RED (InGaAlP) WATER CLEAR
70 200
120°
Note:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at TA=25°C
Symbol Parameter Device Typ. Max. Units Test Conditions
λpeak
Peak Wavelength Hyper Red 650 nm IF=20mA
λD
Dominant Wavelength Hyper Red 635 nm IF=20mA
∆λ1/2
Spectral Line Half-width Hyper Red 28 nm IF=20mA
C Capacitance Hyper Red 35 pF VF=0V;f=1MHz
VF Forward Voltage Hyper Red 1.95 2.5 V IF=20mA
IR Reverse Current Hyper Red 10 uA VR = 5V
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Parameter Hyper Red Units
Power dissipation 75 mW
DC Forward Current 30 mA
Peak Forward Current [1] 185 mA
Reverse Voltage 5 V
Operating / storage Temperature -40°C To +85°C
Absolute Maximum Ratings at TA=25°C
SPEC NO: DSAA6808 REV NO: V.6 DATE: MAR/21/2005 PAGE: 3 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU ERP:1201000394

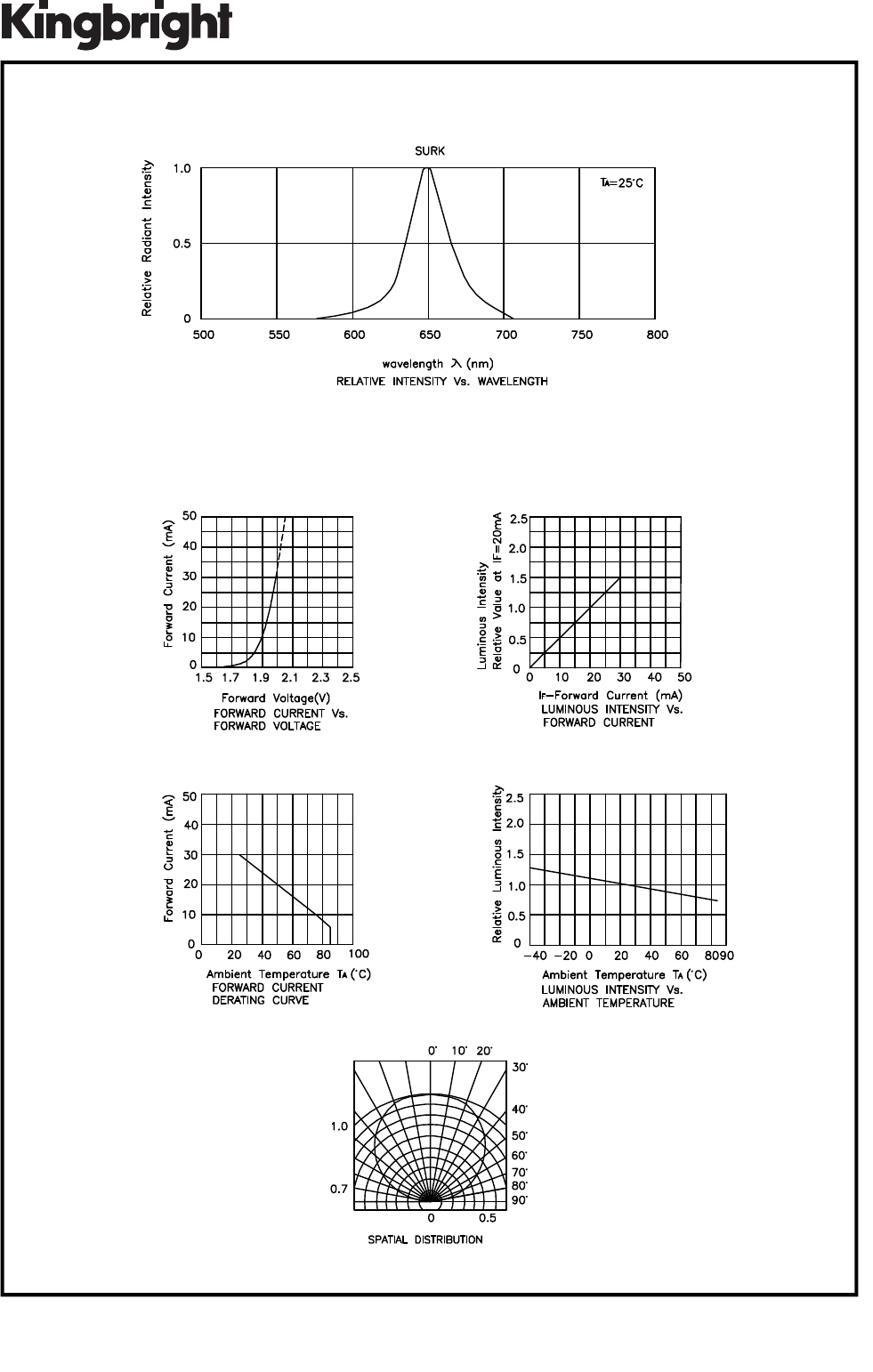

Hyper Red AA3528SURCK
