KINGBRIGHT AA3528SECK

Cross Number: SML10O3KHT-TR

Item Description: LED, 3.5X2.8MM ORANGE SMD LED, SMD LED, T&R

Qty Price
1 - 300 $0.13852
301 - 610 $0.10809
611 - 920 $0.09445
921 - 1,230 $0.08815
1,231 + $0.08185



Other Cross Reference

Manufacturer Date Code Qty Available Qty
KINGBRIGHT
  • Freelance Stock: 1475
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

SPEC NO: DSAD1230 REV NO: V.4 DATE: MAR/21/2005 PAGE: 1 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU ERP:1201000361

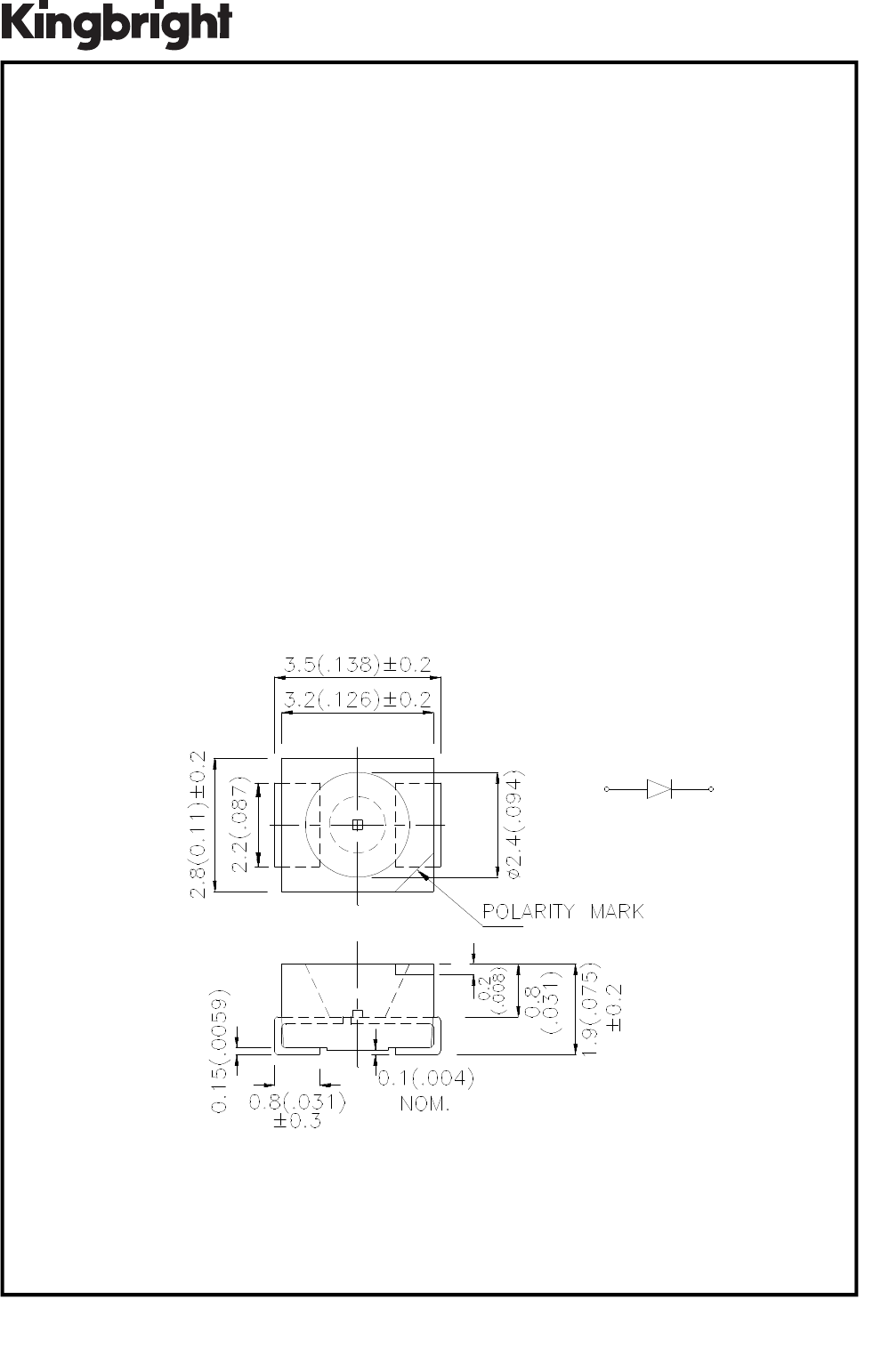

Package Dimensions
AA3528SECK SUPER BRIGHT ORANGE
Description
The Super Bright Orange source color devices are
made with DH InGaAlP on GaAs substrate Light Emit-
ting Diode.
3.5x2.8 mm SMD CHIP LED LAMP
Features
SINGLE COLOR.
SUITABLE FOR ALL SMT ASSEMBLY AND SOLDER
PROCESS.
AVAILABLE ON TAPE AND REEL.
IDEAL FOR BACKLIGHTING.
PACKAGE : 1500PCS / REEL.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAD1230 REV NO: V.4 DATE: MAR/21/2005 PAGE: 2 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU ERP:1201000361
Selection Guide
Note:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Part No. Dice Lens Type
Iv (mcd)
@ 20 mA
Viewing
Angle
Min. Typ.
2θ
θθ
θ1/2
AA3528SECK SUPER BRIGHT ORANGE (InGaAlP) WATER CLEAR
70 300
120°
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Electrical / Optical Characteristics at TA=25°C
Absolute Maximum Ratings at T
A=25°C
Symbol Parameter Device Typ. Max. Test ConditionsUnits
λpeak
Peak Wavelength Super Bright Orange 610 nm IF=20mA
λD
Dominant Wavelength Super Bright Orange 601 nm IF=20mA
∆λ1/2
Spectral Line Half-width Super Bright Orange 29 nm IF=20mA
C Capacitance Super Bright Orange 15 pF VF=0V;f=1MHz
VF Forward Voltage Super Bright Orange 2.1 2.5 V IF=20mA
IR Reverse Current Super Bright Orange 10 uA VR = 5V
Parameter Super Bright Orange Units
Power dissipation 75 mW
DC Forward Current 30 mA
Peak Forward Current [1] 195 mA
Reverse Voltage 5 V
Operating/Storage Temperature -40°C To +85°C

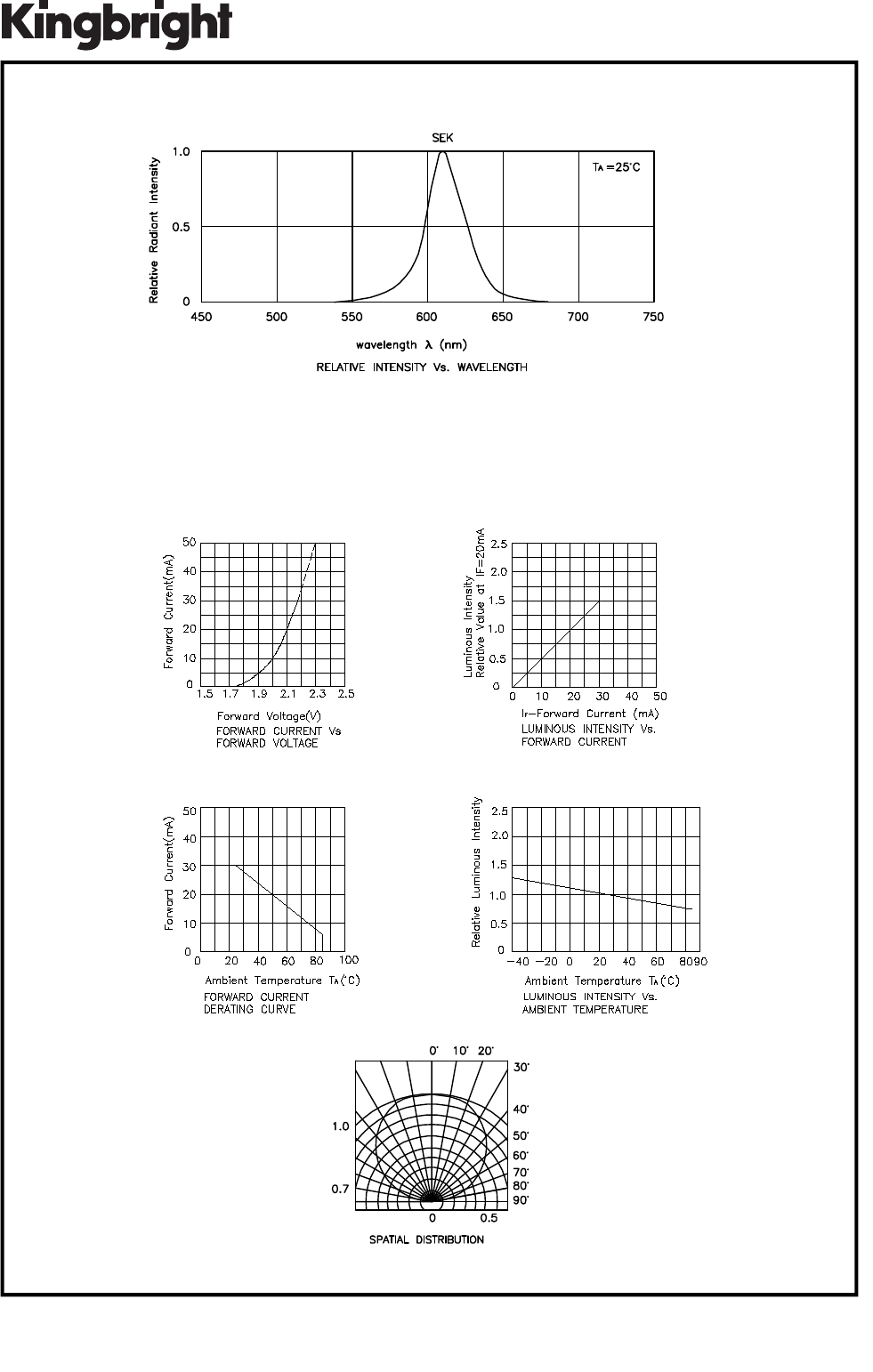

SPEC NO: DSAD1230 REV NO: V.4 DATE: MAR/21/2005 PAGE: 3 OF 4
APPROVED: J. Lu CHECKED: Allen Liu DRAWN: W.J.ZHU ERP:1201000361
Super Bright Orange AA3528SECK
