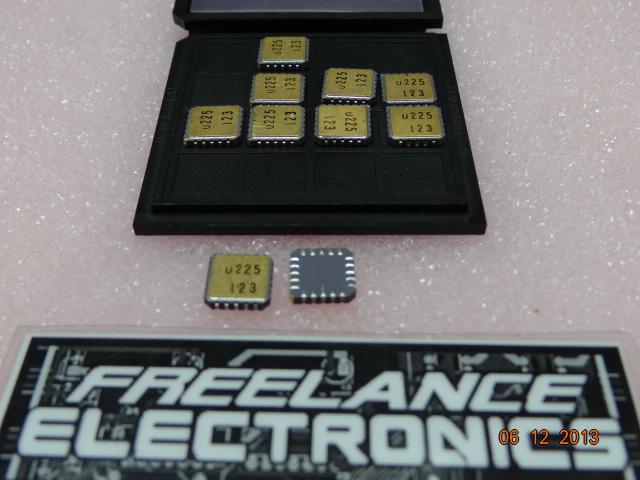

032-123

Part # 032-123
Description
Category IC
Availability Out of Stock
Qty 0
Qty Price
1 + $473.00000



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

TECHNICAL DATA SHEET
CABLE ASSEMBLY
MICRO RF / FAKRA-MICRO COAX
LH1-032-XXX-Y
.
RF_35/11.05/3.1
All dimensions are in mm; tolerances according to ISO 2768 c-H
Length “a”
Type
(mm)
LH1-032-120-B 120 ±3
LH1-032-67-B 67±3
Documents
Technical data sheet Fakra connector 59S50E-1H1A4-Y
Technical data sheet Micro RF connector 15S201-1H1L5
Technical data sheet Cable RTK 013aaz
Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel.: +49 8684 18-0 Page
P.O.Box 1260 D-84526 Tittmoning Germany Fax: +49 8684 18-499
www.rosenberger.de email: info@rosenberger.de 1 / 2
TECHNICAL DATA SHEET
CABLE ASSEMBLY
MICRO RF / FAKRA-MICRO COAX
LH1-032-XXX-Y
Electrical data
Impedance 50 Ω
Frequency DC to 3 GHz
Return loss 15 dB, DC to 3 GHz (*)
Insertion loss 1 dB to 3 GHz (*)
(*) Limitations are possible; exact values have to be measured.
Mechanical data
Minimum bend radius repeated 8xØ,single 4xØ
Environmental data
Temperature range -40°C to +90°
Packing
Standard 50 pcs. in plastic bag
While the information has been carefully compiled to the best of our knowled
g
e, nothin
g
is intended as representation or
warranty on our part and no statement herein shall be construed as recommendation to infrin
g
e existin
g
patents. In the effor
t
to improve our products, we reserve the right to make changes judged to be necessary.
Draft Date Approved Date Rev. Engineering change number Name Date
Manfred Ruf 13/01/09 Thomas Höfling 11/03/10 100 09-v309 Manfred Ruf 11/03/10
