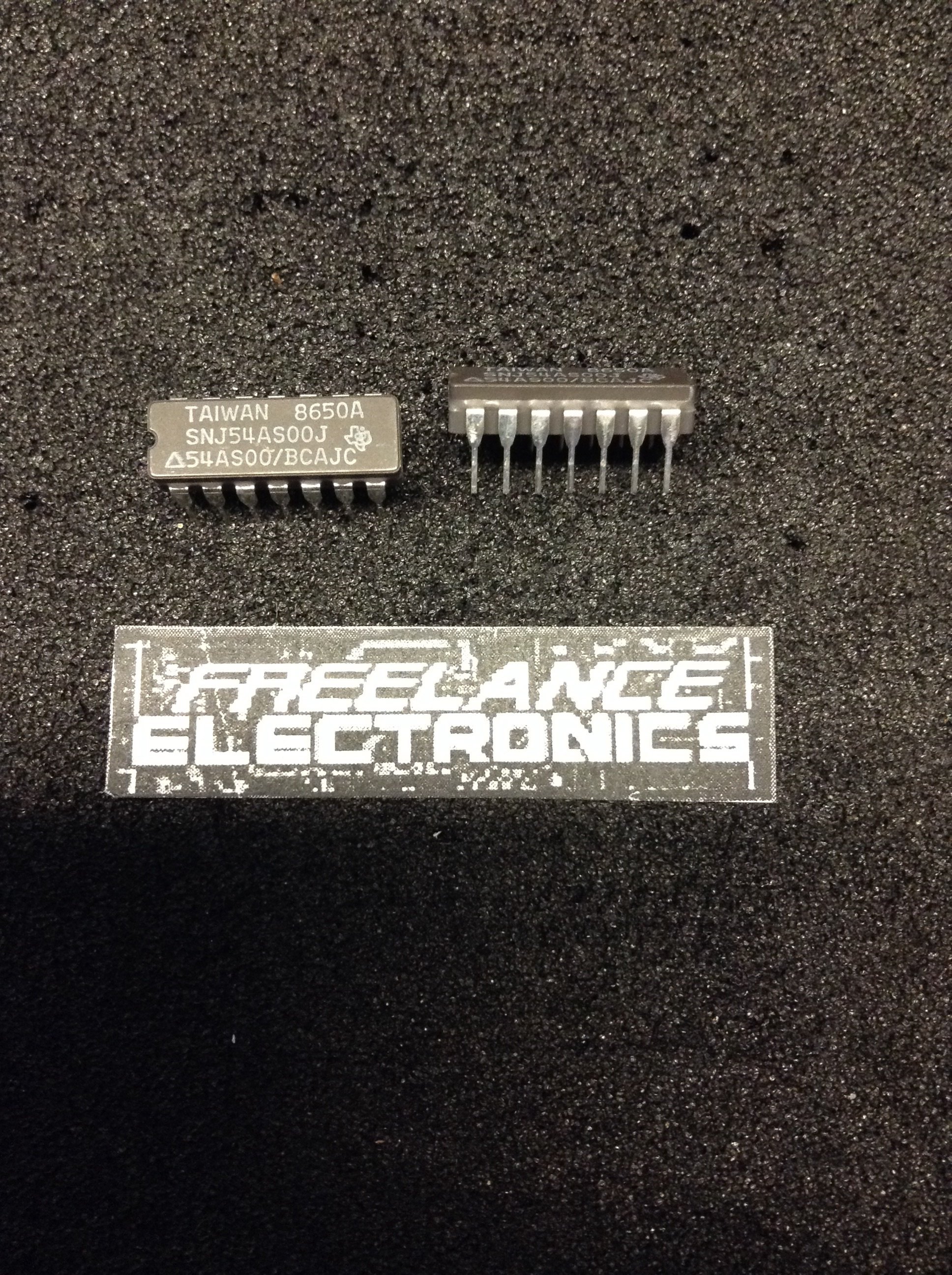

SNJ54AS00J

Part # SNJ54AS00J
Description QUAD 2-INPUT NAND GATE - Rail/Tube
Category IC
Availability In Stock
Qty 25
Qty Price
1 - 5 $7.18931
6 - 10 $5.71877
11 - 15 $5.39199
16 - 21 $5.01073
22 + $4.46609
Manufacturer Available Qty
Texas Instruments
Date Code: 8640
  • Shipping Freelance Stock: 7
    Ships Immediately
Texas Instruments
Date Code: 9826
  • Shipping Freelance Stock: 12
    Ships Immediately
Texas Instruments
Date Code: 8651
  • Shipping Freelance Stock: 1
    Ships Immediately
Texas Instruments
Date Code: 9236
  • Shipping Freelance Stock: 2
    Ships Immediately
Texas Instruments
Date Code: 8650
  • Shipping Freelance Stock: 2
    Ships Immediately
Texas Instruments
Date Code: 9703
  • Shipping Freelance Stock: 1
    Ships Immediately

Related Items

SNJ5400W
Texas Instruments
IC
SNJ5400W
$11.63320
SNJ5401J
Texas Instruments
IC
SNJ5401J
$8.02689
SNJ5401W
Texas Instruments
IC
SNJ5401W
$10.60761
SNJ5402J
Texas Instruments
IC
SNJ5402J
$3.06137
SNJ5405J
Texas Instruments
IC
SNJ5405J
$7.58055
SNJ5405W
Texas Instruments
IC
SNJ5405W
$10.71477


Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

SN54ALS00A, SN54AS00, SN74ALS00A, SN74AS00
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
SDAS187A – APRIL 1982 – REVISED DECEMBER 1994
Copyright 1994, Texas Instruments Incorporated
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
• Package Options Include Plastic
Small-Outline (D) Packages, Ceramic Chip
Carriers (FK), and Standard Plastic (N) and
Ceramic (J) 300-mil DIPs
description
These devices contain four independent 2-input
positive-NAND gates. They perform the Boolean
functions Y = A
• B or Y = A + B in positive logic.
The SN54ALS00A and SN54AS00 are
characterized for operation over the full military
temperature range of –55°C to 125°C. The
SN74ALS00A and SN74AS00 are characterized
for operation from 0°C to 70°C.
FUNCTION TABLE
(each gate)
INPUTS
OUTPUT
A B
Y
H H L
L XH
XLH
logic symbol
†
1
1A
2
1B
4
2A
5
2B
9
3A
10
3B
12
4A
13
4B
&
1Y
3
2Y
6
3Y
8
4Y
11
†
This symbol is in accordance with ANSI/IEEE Std 91-1984 and
IEC Publication 617-12.
Pin numbers shown are for the D, J, and N packages.
SN54ALS00A, SN54AS00 ...J PACKAGE
SN74ALS00A, SN74AS00 ...D OR N PACKAGE
(TOP VIEW)
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1A
1B
1Y
2A
2B
2Y
GND
V
CC
4B
4A
4Y
3B
3A
3Y
SN54ALS00A, SN54AS00 . . . FK PACKAGE
(TOP VIEW)
3 2 1 20 19
9 10 11 12 13
4
5
6
7
8
18
17
16
15
14
4A
NC
4Y
NC
3B
1Y
NC
2A
NC
2B
1B
1A
NC
3Y
3A
V
4B
2Y
NC
CC
NC – No internal connection
GND
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
SN54ALS00A, SN54AS00, SN74ALS00A, SN74AS00
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
SDAS187A – APRIL 1982 – REVISED DECEMBER 1994
2
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
logic diagram (positive logic)
1Y
3
1
1A
2
1B
2Y
6
4
2A
5
2B
3Y
8
9
3A
10
3B
4Y
11
12
4A
13
4B
Pin numbers shown are for the D, J, and N packages.
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
†
Supply voltage, V
CC
7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage, V
I
7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating free-air temperature range, T
A
: SN54ALS00A –55°C to 125°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SN74ALS00A 0°C to 70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range –65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
†
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
recommended operating conditions
SN54ALS00A SN74ALS00A
UNIT
MIN NOM MAX MIN NOM MAX
UNIT
V
CC
Supply voltage 4.5 5 5.5 4.5 5 5.5 V
V
IH
High-level input voltage 2 2 V
V
IL
Low level in
p
ut voltage
0.8
‡
0.8
V
V
IL
Lo
w-
le
v
el
inp
u
t
v
oltage
0.7
§
V
I
OH
High-level output current –0.4 –0.4 mA
I
OL
Low-level output current 4 8 mA
T
A
Operating free-air temperature –55 125 0 70 °C
‡
Applies over temperature range –55°C to 70°C
§
Applies over temperature range 70°C to 125°C
SN54ALS00A, SN54AS00, SN74ALS00A, SN74AS00
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
SDAS187A – APRIL 1982 – REVISED DECEMBER 1994
3
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)
PARAMETER
TEST CONDITIONS
SN54ALS00A SN74ALS00A
UNIT
PARAMETER
TEST
CONDITIONS
MIN TYP
†
MAX MIN TYP
†
MAX
UNIT
V
IK
V
CC
= 4.5 V, I
I
= –18 mA –1.2 –1.5 V
V
OH
V
CC
= 4.5 V to 5.5 V, I
OH
= –0.4 mA V
CC
–2 V
CC
–2 V
V
OL
V
CC
=45V
I
OL
= 4 mA 0.25 0.4 0.25 0.4
V
V
OL
V
CC
=
4
.
5
V
I
OL
= 8 mA 0.35 0.5
V
I
I
V
CC
= 5.5 V, V
I
= 7 V 0.1 0.1 mA
I
IH
V
CC
= 5.5 V, V
I
= 2.7 V 20 20 µA
I
IL
V
CC
= 5.5 V, V
I
= 0.4 V –0.1 –0.1 mA
I
O
‡
V
CC
= 5.5 V, V
O
= 2.25 V –20 –112 –30 –112 mA
I
CCH
V
CC
= 5.5 V, V
I
= 0 0.5 0.85 0.5 0.85 mA
I
CCL
V
CC
= 5.5 V, V
I
= 4.5 V 1.5 3 1.5 3 mA
†
All typical values are at V
CC
= 5 V, T
A
= 25°C.
‡
The output conditions have been chosen to produce a current that closely approximates one half of the true short-circuit output current, I
OS
.
switching characteristics (see Figure 1)
PARAMETER
FROM
(
INPUT
)
TO
(
OUTPUT
)
V
CC
= 4.5 V to 5.5 V,
C
L
= 50 pF,
R
L
= 500 Ω,
T
A
= MIN to MAX
§
UNIT
(INPUT)
(OUTPUT)
SN54ALS00A SN74ALS00A
MIN MAX MIN MAX
t
PLH
AorB
Y
3 15 3 11
ns
t
PHL
A
or
B
Y
2 9 2 8
ns
§
For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.
123NEXT
