MSP430F2274TRHAT

Part # MSP430F2274TRHAT
Description MCU 16-bit MSP430 MSP430 RISC32KB Flash 2.5V/3.3V 40-Pin
Category IC
Availability In Stock
Qty 214
Qty Price
1 - 44 $3.57032
45 - 89 $2.84003
90 - 134 $2.67774
135 - 179 $2.48841
180 + $2.21793
Manufacturer Available Qty
Texas Instruments
Date Code: 0706
  • Shipping Freelance Stock: 198
    Ships Immediately
Texas Instruments
Date Code: 0712
  • Shipping Freelance Stock: 16
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

MSP430x22x2, MSP430x22x4
MIXED SIGNAL MICROCONTROLLER
SLAS504B − JULY 2006 − REVISED JULY 2007
1
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
POST OFFICE BOX 1443 HOUSTON, TEXAS 77251−1443
D Low Supply Voltage Range 1.8 V to 3.6 V
D Ultralow-Power Consumption
− Active Mode: 270 μA at 1 MHz, 2.2 V
− Standby Mode: 0.7 μA
− Off Mode (RAM Retention): 0.1 μA
D Ultrafast Wake-Up From Standby Mode in
Less Than 1 μs
D 16-Bit RISC Architecture, 62.5-ns
Instruction Cycle Time
D Basic Clock Module Configurations:
− Internal Frequencies up to 16 MHz With
Four Calibrated Frequencies to ±1%
− Internal Very-Low-Power Low-Frequency
Oscillator
− 32-kHz Crystal
− High-Frequency Crystal up to 16 MHz
− Resonator
− External Digital Clock Source
− External Resistor
D 16-Bit Timer_A With Three
Capture/Compare Registers
D 16-Bit Timer_B With Three
Capture/Compare Registers
D Universal Serial Communication Interface
− Enhanced UART Supporting
Auto-Baudrate Detection (LIN)
− IrDA Encoder and Decoder
− Synchronous SPI
− I
2
CE
D 10-Bit, 200-ksps A/D Converter With
Internal Reference, Sample-and-Hold,
Autoscan, and Data Transfer Controller
D Two Configurable Operational Amplifiers
(MSP430x22x4 Only)
D Brownout Detector
D Serial Onboard Programming,
No External Programming Voltage Needed
Programmable Code Protection by
Security Fuse
D Bootstrap Loader
D On Chip Emulation Module
D Family Members Include:
MSP430F2232: 8KB + 256B Flash Memory
512B RAM
MSP430F2252: 16KB + 256B Flash Memory
512B RAM
MSP430F2272: 32KB + 256B Flash Memory
1KB RAM
MSP430F2234: 8KB + 256B Flash Memory
512B RAM
MSP430F2254: 16KB + 256B Flash Memory
512B RAM
MSP430F2274: 32KB + 256B Flash Memory
1KB RAM
Available in a 38-Pin Thin Shrink
Small-Outline Package (TSSOP) and 40-Pin
QFN Package
D For Complete Module Descriptions, Refer
to the MSP430x2xx Family User’s Guide
description
The Texas Instruments MSP430 family of ultralow-power microcontrollers consist of several devices featuring
different sets of peripherals targeted for various applications. The architecture, combined with five low-power
modes is optimized to achieve extended battery life in portable measurement applications. The device features
a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code
efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less
than 1 μs.
The MSP430x22xx series is an ultralow-power mixed signal microcontroller with two built-in 16-bit timers, a
universal serial communication interface, 10-bit A/D converter with integrated reference and data transfer
controller (DTC), two general-purpose operational amplifiers in the MSP430x22x4 devices, and 32 I/O pins.
Typical applications include sensor systems that capture analog signals, convert them to digital values, and then
process the data for display or for transmission to a host system. Stand-alone radio-frequency (RF) sensor front
ends are another area of application.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright © 2007 Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
All trademarks are the property of their respective owners.
MSP430x22x2, MSP430x22x4
MIXED SIGNAL MICROCONTROLLER
SLAS504B − JULY 2006 − REVISED JULY 2007
2
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
POST OFFICE BOX 1443 HOUSTON, TEXAS 77251−1443
AVAILABLE OPTIONS
PACKAGED DEVICES
T
A
PLASTIC
38-PIN TSSOP
(DA)
PLASTIC
40-PIN QFN
(RHA)
−40°C to 85°C
MSP430F2232IDA
MSP430F2252IDA
MSP430F2272IDA
MSP430F2234IDA
MSP430F2254IDA
MSP430F2274IDA
MSP430F2232IRHA
MSP430F2252IRHA
MSP430F2272IRHA
MSP430F2234IRHA
MSP430F2254IRHA
MSP430F2274IRHA
−40°C to 105°C
MSP430F2232TDA
MSP430F2252TDA
MSP430F2272TDA
MSP430F2234TDA
MSP430F2254TDA
MSP430F2274TDA
MSP430F2232TRHA
MSP430F2252TRHA
MSP430F2272TRHA
MSP430F2234TRHA
MSP430F2254TRHA
MSP430F2274TRHA
Product Preview
MSP430x22x2, MSP430x22x4
MIXED SIGNAL MICROCONTROLLER
SLAS504B − JULY 2006 − REVISED JULY 2007
3
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
POST OFFICE BOX 1443 HOUSTON, TEXAS 77251−1443

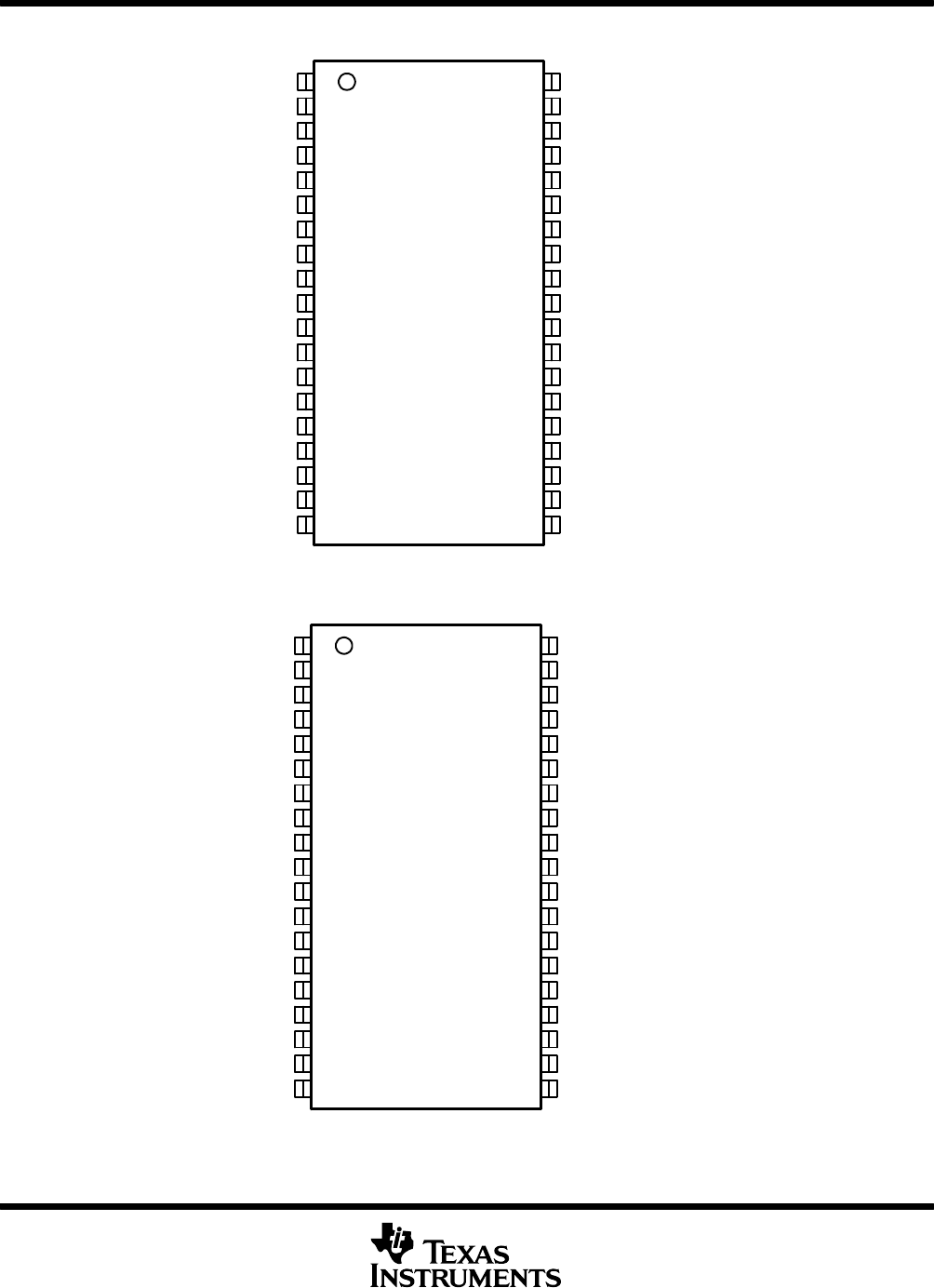

MSP430x22x2 device pinout, DA package
1TEST/SBWTCK
2DVCC
3P2.5/Rosc
4
XOUT /P2.7 5
XIN /P2.6 6
RST /NMI /SBWTDIO 7
P2.0/ACLK /A0 8
P2.1/TAINCLK /SMCLK /A1 9
P2.2/TA 0/A2
10
P3.0/UCB 0STE /UCA 0CLK /A5
11
P3.1/UCB 0SIMO /UCB 0SDA 12
P3.2/UCB 0SOMI /UCB 0SCL 13
P3.3/UCB 0CLK /UCA 0STE 14
P4.0/TB0
15
P4.1/TB1
16
P4.2/TB2
17
P4.3/TB0/A12
18 P4.4/TB1/A13
19
38 P1.7/TA 2/TDO /TDI
37 P1.6/TA 1/TDI
36 P1.5/TA 0/TMS
35 P1.4/SMCLK/TCK
34 P1.3/TA 2
33 P1.2/TA 1
32 P1.1/TA 0
31 P1.0/TACLK /ADC 10CLK
30 P2.4/TA 2/A4/VREF+/ VeREF +
29 P2.3/TA 1/A3/VREF−/VeREF
28 P3.7/A7
27 P3.6/A6
26 P3.5/UCA 0RXD /UCA0SOMI
25 P3.4/UCA 0TXD /UCA0SIMO
24
23AVCC
22
AVSS
21
P4.7/TBCLK
20
P4.6/TBOUTH /A15
DVSS
P4.5/TB2/A14
MSP430x22x4 device pinout, DA package
1TEST/SBWTCK
2DVCC
3P2.5/Rosc
4
XOUT/P2.7 5
XIN /P2.6 6
RST /NMI /SBWTDIO 7
P2.0/ACLK /A0/OA 0I0 8
P2.1/TAINCLK /SMCLK /A1/OA 0O 9
P2.2/TA 0/A2/OA0I1 10
P3.0/UCB 0STE /UCA 0CLK /A5 11
P3.1/UCB 0SIMO/UCB 0SDA 12
P3.2/UCB 0SOMI/UCB 0SCL 13
P3.3/UCB 0CLK /UCA 0STE 14
P4.0/TB0
15
P4.1/TB1
16
P4.2/TB2
17
P4.3/TB0/A12/OA0O
18 P4.4/TB1/A13/OA1O
19
38 P1.7/TA 2/TDO /TDI
37 P1.6/TA 1/TDI
36 P1.5/TA 0/TMS
35 P1.4/SMCLK/TCK
34 P1.3/TA 2
33 P1.2/TA 1
32 P1.1/TA 0
31 P1.0/TACLK /ADC 10CLK
30 P2.4/TA 2/A4/VREF +/VeREF +/OA 1I0
29 P2.3/TA 1/A3/VREF −/VeREF /OA1I1/OA 1O
28 P3.7/A7/OA 1I2
27 P3.6/A6/OA 0I2
26 P3.5/UCA 0RXD /UCA0SOMI
25 P3.4/UCA 0TXD /UCA0SIMO
24
23AVCC
22
AVSS
21
P4.7/TBCLK
20
P4.6/TBOUTH/A15/OA1I3
DVSS
P4.5/TB2/A14/OA0I3
