tm

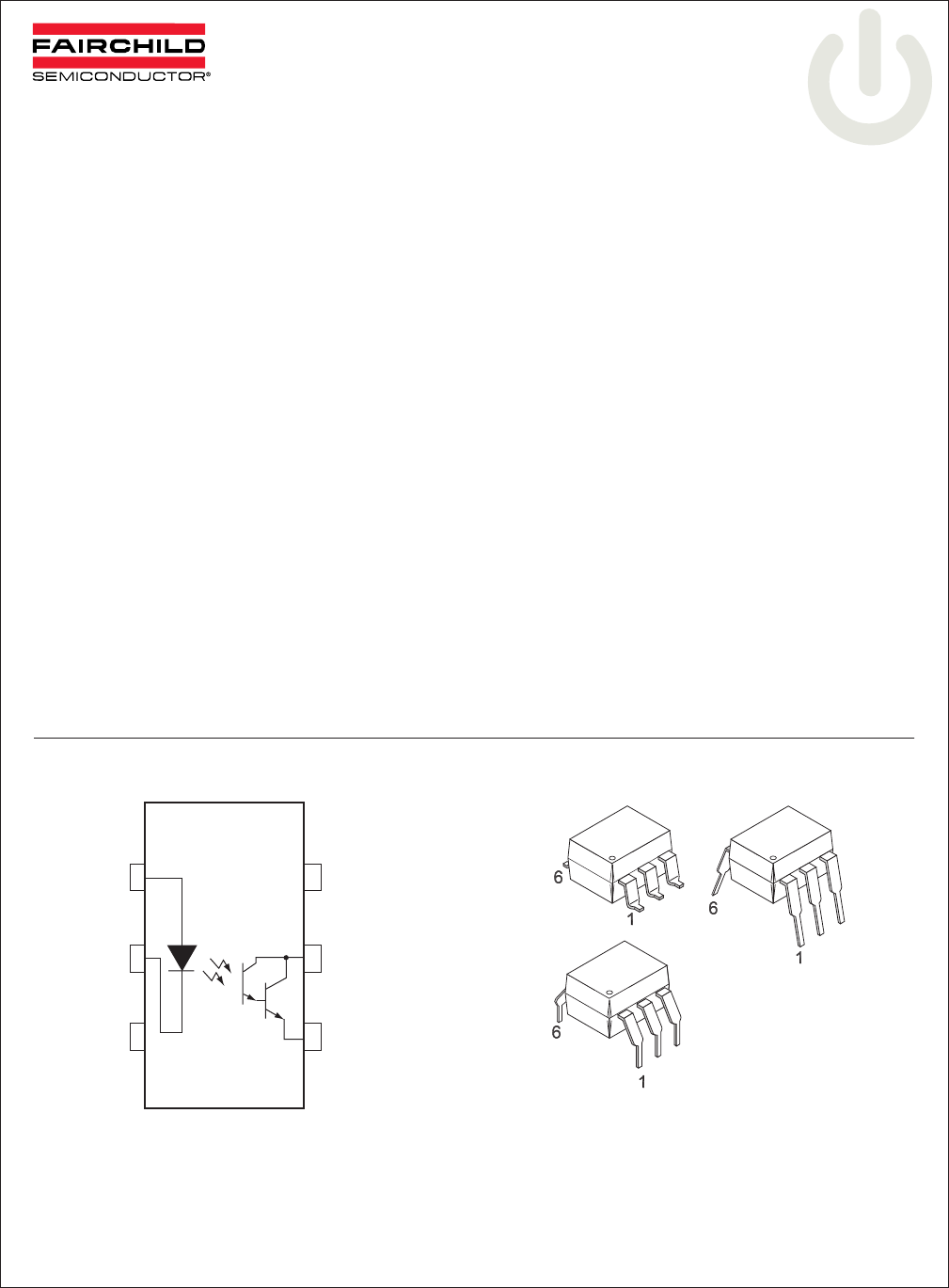

MOC8021M, MOC8050M Photodarlington Optocoupler (No Base Connection)
November 2007
©2000 Fairchild Semiconductor Corporation www.fairchildsemi.com
MOC8021M, MOC8050M Rev. 1.0.3
MOC8021M, MOC8050M
Photodarlington Optocoupler (No Base Connection)
Features
High BV
CEO
– Minimum 50V (MOC8021M)
– Minimum 80V (MOC8050M)
High current transfer ratio:
– Minimum 1,000% (MOC8021M)
– Minimum 500% (MOC8050M)
500%
No base connection for improved noise immunity
Underwriters Laboratory (UL) recognized
File #E90700, Volume 2
IEC 60747-5-2 approved (ordering option V)
Applications
Appliances, measuring instruments
I/O interface for computers
Programmable controllers
Portable electronics
Interfacing and coupling systems of different
potentials and impedance
Solid state relays
Description
The MOC8021M and MOC8050M are photodarlington-
type optically coupled optocoupler. The devices have a
gallium arsenide infrared emitting diode coupled with a
silicon darlington phototransistor.
Schematic
EMITTER
COLLECT
N/C
OR
1
2
3
ANODE
CATHODE
4
5
6
N/C
©2000 Fairchild Semiconductor Corporation www.fairchildsemi.com
MOC8021M, MOC8050M Rev. 1.0.3 2
MOC8021M, MOC8050M Photodarlington Optocoupler (No Base Connection)
Absolute Maximum Ratings
(T
A
= 25°C Unless otherwise specified.)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
The absolute maximum ratings are stress ratings only.
Symbol Parameter Value Units
TOTAL DEVICE
T
STG
Storage Temperature -55 to +150 °C
T
OPR
Operating Temperature -40 to +100 °C
T
SOL
Lead Solder Temperature (Wave solder) 260 for 10 sec °C
P
D
Total Device Power Dissipation @ T
A
= 25°C 250 mW
Derate above 25°C
2.94 mW/°C
EMITTER
I
F
DC/Average Forward Input Current 60 mA
V
R
Reverse Input Voltage 3 V
P
D
LED Power Dissipation @ T
A
= 25°C 120 mW
Derate above 25°C
1.41 mW/°C
DETECTOR
V
CEO
Collector-Emitter Voltage
MOC8021M
MOC8050M
50
80
V
P
D
Detector Power Dissipation @ T
A
= 25°C 150 mW
Derate above 25°C
1.76 mW/°C
I
C
Continuous Collector Current 150 mA
©2000 Fairchild Semiconductor Corporation www.fairchildsemi.com
MOC8021M, MOC8050M Rev. 1.0.3 3
MOC8021M, MOC8050M Photodarlington Optocoupler (No Base Connection)
Electrical Characteristics
(T
A
= 25°C Unless otherwise specified.)
Individual Component Characteristics
Transfer Characteristics
Isolation Characteristics
Note:
*Typical values at T
A
= 25°C
Symbol Parameter Test Conditions Min. Typ.* Max. Unit
EMITTER
V
F
Input Forward Voltage
I
F
= 10mA 1.18 2.00 V
I
R
Reverse Leakage Current
V
R
= 3.0V 0.001 10 µA
DETECTOR
BV
CEO
Collector-Emitter Breakdown Voltage
MOC8021M
MOC8050M
I
C
= 1.0mA, I
F
= 0
50
80
100
100
V
BV
ECO
Emitter-Collector Breakdown Voltage
I
E
= 100µA, I
F
= 0 5 10 V
I
CEO
Collector-Emitter Dark Current
V
CE
= 60V, I
F
= 0 1 µA
C
CE
Capacitance
V
CE
= 0V, f = 1MHz 8 pF
Symbol Parameter Test Conditions Min. Typ.* Max. Unit
DC CHARACTERISTICS
CTR Current Transfer Ratio,
Collector to Emitter
MOC8021M
MOC8050M
I
F
= 10mA, V
CE
= 5V
I
F
= 10mA, V
CE
= 1.5V
1,000
500
%
AC CHARACTERISTICS
t
on
Non-Saturated Turn-on Time I
F
= 5mA, V
CC
= 10V,
R
L
= 100
8.5 µs
t
off
Tur n-off Time I
F
= 5mA, V
CC
= 10V,
R
L
= 100
95 µs
Symbol Characteristic Test Conditions Min. Typ. Max. Units
V
ISO
Input-Output Isolation Voltage f = 60Hz, t = 1 sec. 7500 Vac(pk)
R
ISO
Isolation Resistance V
I-O
= 500VDC 10
11
C
ISO
Isolation Capacitance V
I-O
= Ø, f = 1MHz 0.2 2 pF
