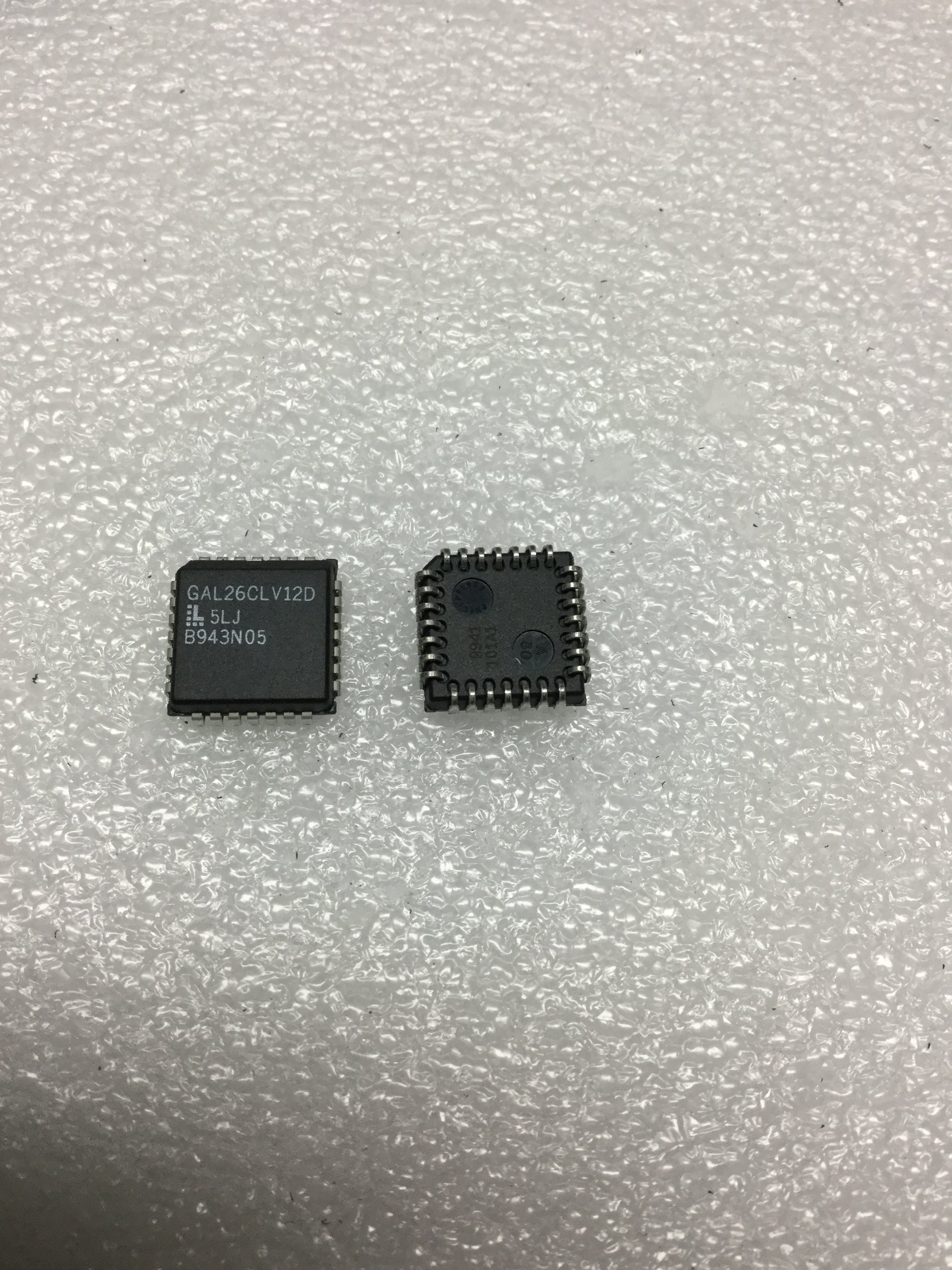

GAL26CLV12D OUTPUT LOGIC MACROCELL (OLMC)
Each of the Macrocells of the GAL26CLV12D has two primary func-
tional modes: registered, and combinatorial I/O. The modes and
the output polarity are set by two bits (S0 and S1), which are nor-
mally controlled by the logic compiler. Each of these two primary
modes, and the bit settings required to enable them, are described
below and on the following page.
REGISTERED
In registered mode the output pin associated with an individual
OLMC is driven by the Q output of that OLMC’s D-type flip-flop.
Logic polarity of the output signal at the pin may be selected by
specifying that the output buffer drive either true (active high) or
inverted (active low). Output tri-state control is available as an in-
dividual product-term for each OLMC, and can therefore be defined
by a logic equation. The D flip-flop’s /Q output is fed back into the
AND array, with both the true and complement of the feedback
available as inputs to the AND array.
NOTE: In registered mode, the feedback is from the /Q output of
the register, and not from the pin; therefore, a pin defined as reg-
istered is an output only, and cannot be used for dynamic
I/O, as can the combinatorial pins.
COMBINATORIAL I/O
In combinatorial mode the pin associated with an individual OLMC
is driven by the output of the sum term gate. Logic polarity of the
output signal at the pin may be selected by specifying that the output
buffer drive either true (active high) or inverted (active low). Out-
put tri-state control is available as an individual product-term for
each output, and may be individually set by the compiler as either
“on” (dedicated output), “off” (dedicated input), or “product-term
driven” (dynamic I/O). Feedback into the AND array is from the pin
side of the output enable buffer. Both polarities (true and inverted)
of the pin are fed back into the AND array.
The GAL26CLV12D has a variable number of product terms per
OLMC. Of the twelve available OLMCs, two OLMCs have access
to twelve product terms (pins 20 and 22), two have access to ten
product terms (pins 19 and 23), and the other eight OLMCs have
eight product terms each. In addition to the product terms available
for logic, each OLMC has an additional product term dedicated to
output enable control.
The output polarity of each OLMC can be individually programmed
to be true or inverting, in either combinatorial or registered mode.
This allows each output to be individually configured as either active
high or active low.
The GAL26CLV12D has a product term for Asynchronous Reset
(AR) and a product term for Synchronous Preset (SP). These two
product terms are common to all registered OLMCs. The Asynchro-
nous Reset sets all registered outputs to zero any time this dedi-
cated product term is asserted. The Synchronous Preset sets all
registers to a logic one on the rising edge of the next clock pulse
after this product term is asserted.
NOTE: The AR and SP product terms will force the Q output of the
flip-flop into the same state regardless of the polarity of the output.
Therefore, a reset operation, which sets the register output to a zero,
may result in either a high or low at the output pin, depending on
the pin polarity chosen.
AR
SP
D
Q
QCLK
4 TO 1
MUX
2 TO 1
MUX
Output Logic Macrocell (OLMC)
Output Logic Macrocell Configurations
