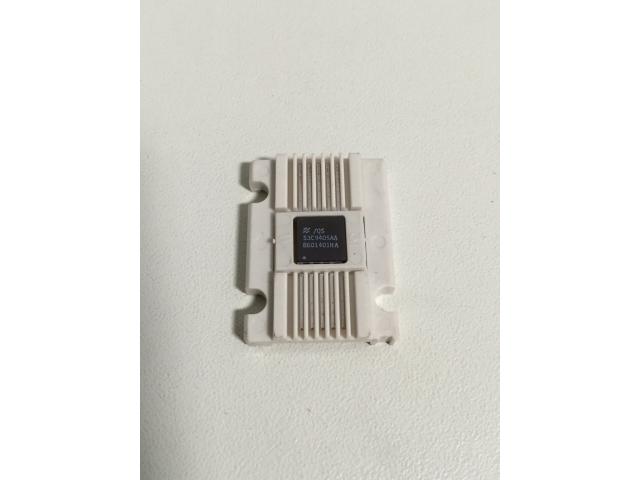

8601401HA

Part # 8601401HA
Description IC, HIGH SPEED DUAL COMPARATOR - Rail/Tube
Category IC
Availability In Stock
Qty 8
Qty Price
1 - 1 $24.46641
2 - 3 $19.46192
4 - 5 $18.34981
6 - 6 $17.05235
7 + $15.19883
Manufacturer Available Qty
National Semiconductor Corp
Date Code: 9822
  • Shipping Freelance Stock: 1
    Ships Immediately
National Semiconductor Corp
Date Code: 9400
  • Shipping Freelance Stock: 7
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

V-
OUTPUT 2
N/C GND 2 IN+ 2
N/C N/C N/C N/C N/C
OUTPUT 1
9 10 11 12 13
3 2 1 20 19
18
N/C17
V+16
N/C15
IN- 214IN- 1
N/C
IN+ 1
N/C
GND 1 4
5
6
7
8
LM119QML
www.ti.com
SNOSAN3B JULY 2008REVISED MARCH 2013
LM119QML High Speed Dual Comparator
Check for Samples: LM119QML
1
FEATURES
DESCRIPTION
The LM119 is a precision high speed dual
2
Available with radiation ensured
comparator fabricated on a single monolithic chip. It
High Dose Rate 100 krad(Si)
is designed to operate over a wide range of supply
ELDRS Free 100 krad(Si)
voltages down to a single 5V logic supply and
ground. Further, it has higher gain and lower input
Two independent comparators
currents than devices like the LM710. The
Operates from a single 5V supply
uncommitted collector of the output stage makes the
Typically 80 ns response time at ±15V
LM119 compatible with RTL, DTL and TTL as well as
capable of driving lamps and relays at currents up to
Minimum fan-out of 2 each side
25 mA.
Maximum input current of 1 μA over
temperature
Although designed primarily for applications requiring
operation from digital logic supplies, the LM119 is
Inputs and outputs can be isolated from
fully specified for power supplies up to ±15V. It
system ground
features faster response than the LM111 at the
High common mode slew rate
expense of higher power dissipation. However, the
high speed, wide operating voltage range and low
package count make the LM119 much more versatile
than older devices like the LM711.
Connection Diagrams
CDIP Package LCCC Package
Figure 1. Top View Figure 2. Top View
Package Number J0014A Package Number NAJ0020A
TO-100 Package
Case is connected to pin 5 (V
).
Figure 3. Top View Figure 4. Top View
Package Number LME0010C Package Number NAD0010A, NAC0010A
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 2008–2013, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
LM119QML
SNOSAN3B JULY 2008REVISED MARCH 2013
www.ti.com
Schematic Diagram
*Do not operate the LM119 with more than 16V between GND and V
+
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
2 Submit Documentation Feedback Copyright © 2008–2013, Texas Instruments Incorporated
Product Folder Links: LM119QML
LM119QML
www.ti.com
SNOSAN3B JULY 2008REVISED MARCH 2013
Absolute Maximum Ratings
(1)
Total Supply Voltage 36V
Output to Negative Supply Voltage 36V
Ground to Negative Supply Voltage 25V
Ground to Positive Supply Voltage 18V
Differential Input Voltage ±5V
Input Voltage
(2)
±15V
Power Dissipation
(3)
500 mW
Output Short Circuit Duration 10 sec
Storage Temperature Range 65°C T
A
150°C
Operating Ambient Temperature Range 55°C T
A
125°C
Maximum Junction Temperature (T
J
) 150°C
Lead Temperature (Soldering, 10 sec.) 260°C
Thermal Resistance
θ
JA
LCCC Package (Still Air) 89°C/W
LCCC Package (500LF/Min Air flow) 63°C/W
TO-100 Package (Still Air) 162°C/W
TO-100 Package (500LF/Min Air flow) 88°C/W
CDIP Package (Still Air) 94°C/W
CDIP Package (500LF/Min Air flow) 52°C/W
CLGA Package (Still Air) 215°C/W
CLGA Package (500LF/Min Air flow) 132°C/W
CLGA Package (Still Air) 215°C/W
CLGA Package (500LF/Min Air flow) 132°C/W
θ
JC
LCCC Package 5°C/W
TO-100 Package 31°C/W
CDIP Package 11°C/W
CLGA Package 13°C/W
CLGA Package 13°C/W
Package Weight
LCCC Package TBD
TO-100 Package TBD
CDIP Package TBD
CLGA Package TBD
CLGA Package 225mg
ESD rating
(4)
800V
(1) Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for
which the device is functional, but do not ensure specific performance limits. For ensured specifications and test conditions, see the
Electrical Characteristics. The ensured specifications apply only for the test conditions listed. Some performance characteristics may
degrade when the device is not operated under the listed test conditions.
(2) For supply voltages less than ±15V the absolute maximum input voltage is equal to the supply voltage.
(3) The maximum power dissipation must be derated at elevated temperatures and is dictated by T
Jmax
(maximum junction temperature),
θ
JA
(package junction to ambient thermal resistance), and T
A
(ambient temperature). The maximum allowable power dissipation at any
temperature is P
Dmax
= (T
Jmax
- T
A
)/θ
JA
or the number given in the Absolute Maximum Ratings, whichever is lower.
(4) Human Body model, 1.5K in series with 100pF.
Copyright © 2008–2013, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Links: LM119QML
