026604060

Part # 026604060

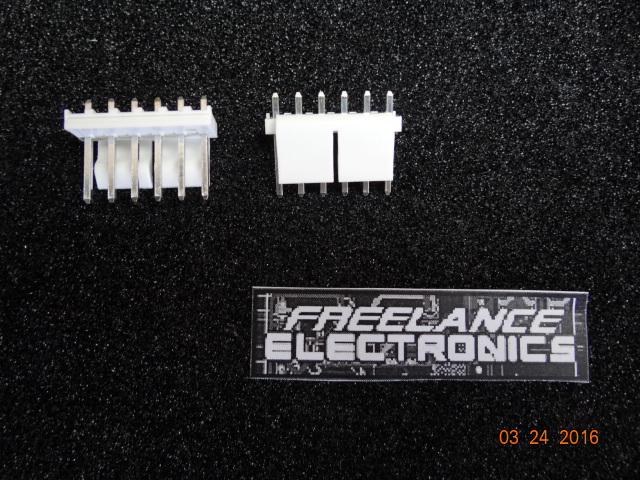

Description 6 ckt Wafer Assembly HeaderTin (Sn) Plating
Category HEADER
Availability In Stock
Qty 3700
Qty Price
1 - 777 $0.19811
778 - 1,554 $0.15758
1,555 - 2,331 $0.14858
2,332 - 3,108 $0.13807
3,109 + $0.12307
Manufacturer Available Qty
MOLEX
  • Shipping Freelance Stock: 3700
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

This document was generated on 05/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0026604060
Status:
Active
Overview: kk
Description: 3.96mm (.156") Pitch KK® Solid Header, Vertical, Friction Lock, 6 Circuits, Tin (Sn)
Plating
Documents:
3D Model Product Specification PS-08-50 (PDF)
Packaging Specification (PDF) RoHS Certificate of Compliance (PDF)
Drawing (PDF)
Agency Certification
CSA LR19980
UL E29179
General
Product Family PCB Headers
Series 41791
Application Wire-to-Board
Comments Glow Wire Equivalent Part Number 417912006
Overview kk
Product Name KK®
Physical
Breakaway No
Circuits (Loaded) 6
Circuits (maximum) 6
Color - Resin Natural
Durability (mating cycles max) 25
Flammability 94V-0
Glow-Wire Compliant No
Lock to Mating Part Yes
Material - Metal Brass
Material - Plating Mating Tin
Material - Resin Polyester
Number of Rows 1
Orientation Vertical
PC Tail Length (in) 0.140 In
PC Tail Length (mm) 3.56 mm
PCB Locator No
PCB Retention None
PCB Thickness Recommended (in) 0.062 In
PCB Thickness Recommended (mm) 1.60 mm
Packaging Type Bag
Pitch - Mating Interface (in) 0.156 In
Pitch - Mating Interface (mm) 3.96 mm
Polarized to Mating Part Yes
Polarized to PCB No
Shrouded Partial
Stackable Yes
Temperature Range - Operating 0°C to +75°C
Termination Interface: Style Through Hole
Electrical
Current - Maximum per Contact 7A
Voltage - Maximum 250V
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
41791Series
Mates With
3069 , 2139 , 2145 , 6442 , 7674 , 7675 ,
41695 , L ink:41815
Solder Process Data
Duration at Max. Process Temperature (seconds) 5
Lead-free Process Capability Wave Capable (TH only)
Max. Cycles at Max. Process Temperature 1
Process Temperature max. C 235
Material Info
Old Part Number 41791-0006
Reference - Drawing Numbers
Packaging Specification PK-41791-001
Product Specification PS-08-50
Sales Drawing SDA-41791
This document was generated on 05/26/2010
