Sensor/Actuator cable-SAC-4P-MS/20,0-542/ FS SCO BK-1417894
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

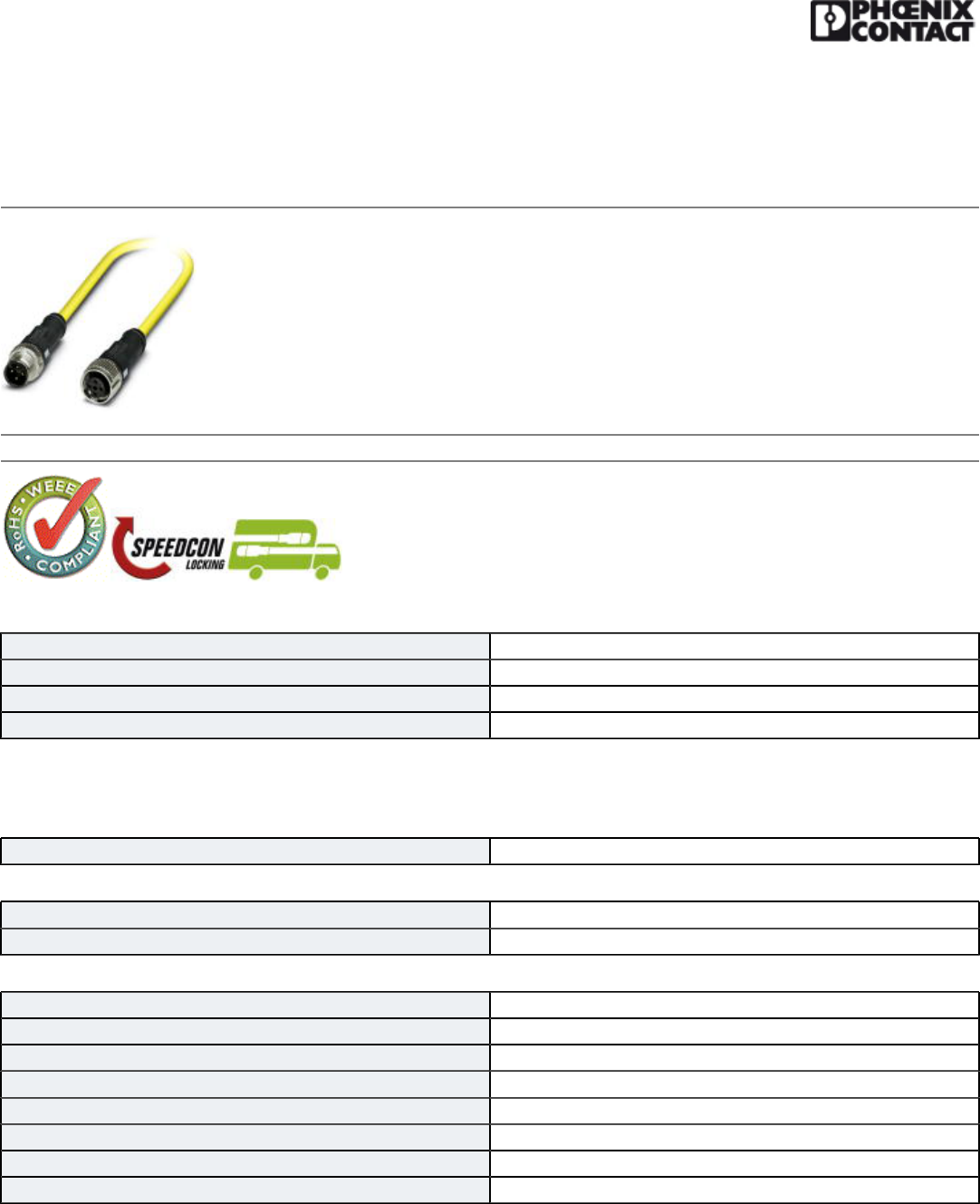

Sensor/Actuator cable, 4-position, PVC, yellow RAL 1021, Plug straight M12 SPEEDCON, A-coded, on Socket
straight M12 SPEEDCON, A-coded, Cable length: 20 m
Key Commercial Data
Packing unit 1 STK
Weight per Piece (excluding packing) 50.0 g
Custom tariff number 85444290
Country of origin United States
Technical data
Dimensions
Length of cable 20 m
Ambient conditions
Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket)
Degree of protection IP65
General
Rated current at 40°C 4 A
Rated voltage 250 V
Number of positions 4
Insulation resistance ≥ 10 MΩ
Coding A - standard
Standards/regulations M12 connector IEC61076-2-101
Status display No
Protective circuit/component Unwired
https://www.phoenixcontact.com/us/products/1417894
08/15/2016Page2/5
Sensor/Actuator cable-SAC-4P-MS/20,0-542/ FS SCO BK-1417894
Technical data
General
Overvoltage category II
Degree of pollution 3
Insertion/withdrawal cycles ≥ 100
Torque 0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94 HB
Standards and Regulations
Standard designation M12 connector
Standards/regulations IEC61076-2-101
Flammability rating according to UL 94 HB
Cable
Cable type PVC yellow 105 °C
Cable type (abbreviation) 542
UL AWM style 2517 (105°C/300 V)
AWG signal line 22
Core diameter including insulation 1.27 mm ±0.03 mm
Wire colors brown, blue, black, white
Overall twist 4 wires, twisted
External sheath, color yellow
External cable diameter D 5 mm ±0.2 mm
Minimum bending radius, flexible installation 8 x D
Cable weight 36 kg/km
Outer sheath, material PVC
Material conductor insulation PVC
Conductor material Tin-plated Cu litz wires
Insulation resistance ≥ (550 M Ohms/m @ 500V)
Conductor resistance max. 50.5 Ω/km (20° C)
Nominal voltage, cable 300 V
Special properties UL standards PLTC and ITC
Other resistance UV resistant
Ambient temperature (operation) -30 °C ... 105 °C (cable, fixed installation)
Drawings
https://www.phoenixcontact.com/us/products/1417894
08/15/2016Page3/5
Sensor/Actuator cable-SAC-4P-MS/20,0-542/ FS SCO BK-1417894

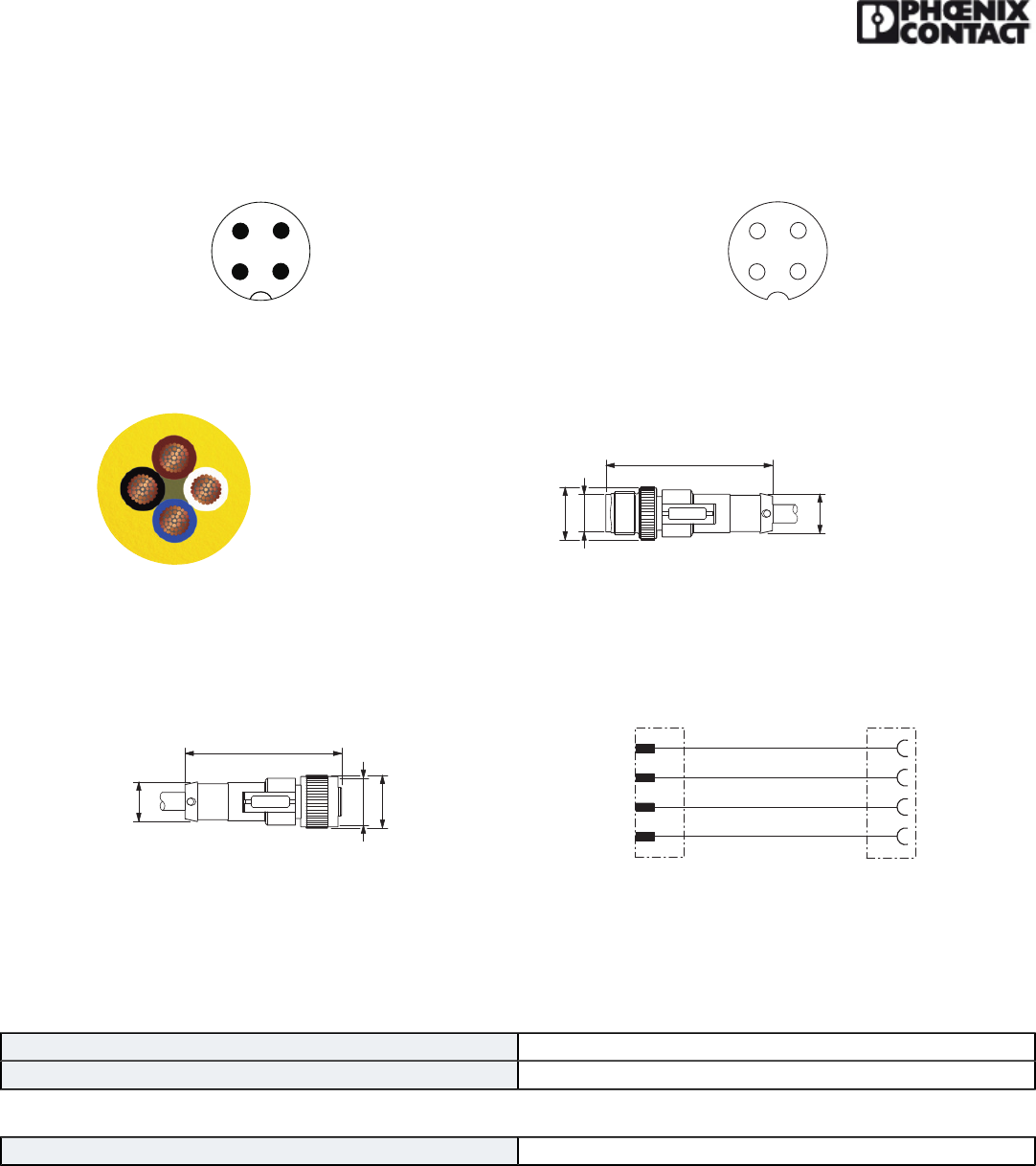

Schematic diagram
4 3
1 2
Pin assignment M12 plug, 4-pos., A-coded, view plug side
Schematic diagram
3 4
2 1
Pin assignment M12 socket, 4-pos., A-coded, view female side
Cable cross section
PVC yellow 105 °C[542]
Dimensional drawing
46,8
Ø11
Ø14,8
M12
M12 x 1 plug, straight
Dimensional drawing
44
Ø11
Ø14,8
M12
M12 x 1 socket, straight
Circuit diagram
1
1
4
3
3
2
2
4
Contact assignment of the M12 plug and the M12 socket
