AVR STK500 User Guide 1-1

Rev. 1925C–AVR–3/03

Section 1

Introduction

Congratulations on your purchase of the AVR

STK500 Flash Microcontroller Starter

Kit. The STK500 is a complete starter kit and development system for the AVR Flash

Microcontroller from Atmel Corporation. It is designed to give designers a quick start to

develop code on the AVR and for prototyping and testing of new designs.

1.1 Starter Kit

Features

n AVR Studio

Compatible

n RS-232 Interface to PC for Programming and Control

n Regulated Power Supply for 10 - 15V DC Power

n Sockets for 8-pin, 20-pin, 28-pin, and 40-pin AVR Devices

n Parallel and Serial High-voltage Programming of AVR Devices

n Serial In-System Programming (ISP) of AVR Devices

n In-System Programmer for Programming AVR Devices in External Target System

n Reprogramming of AVR Devices

n 8 Push Buttons for General Use

n 8 LEDs for General Use

n All AVR I/O Ports Easily Accessible through Pin Header Connectors

n Additional RS-232 Port for General Use

n Expansion Connectors for Plug-in Modules and Prototyping Area

n (NB! No longer valid: "On-board 2-Mbit DataFlash

for Nonvolatile Data Storage")

The STK500 is supported by AVR Studio, version 3.2 or higher. For up-to-date informa-

tion on this and other AVR tool products, please read the document “avrtools.pdf”. The

newest version of AVR Studio, “avrtools.pdf” and this user guide can be found in the

AVR section of the Atmel web site, www.atmel.com.

Introduction

1-2 AVR STK500 User Guide

1925C–AVR–3/03

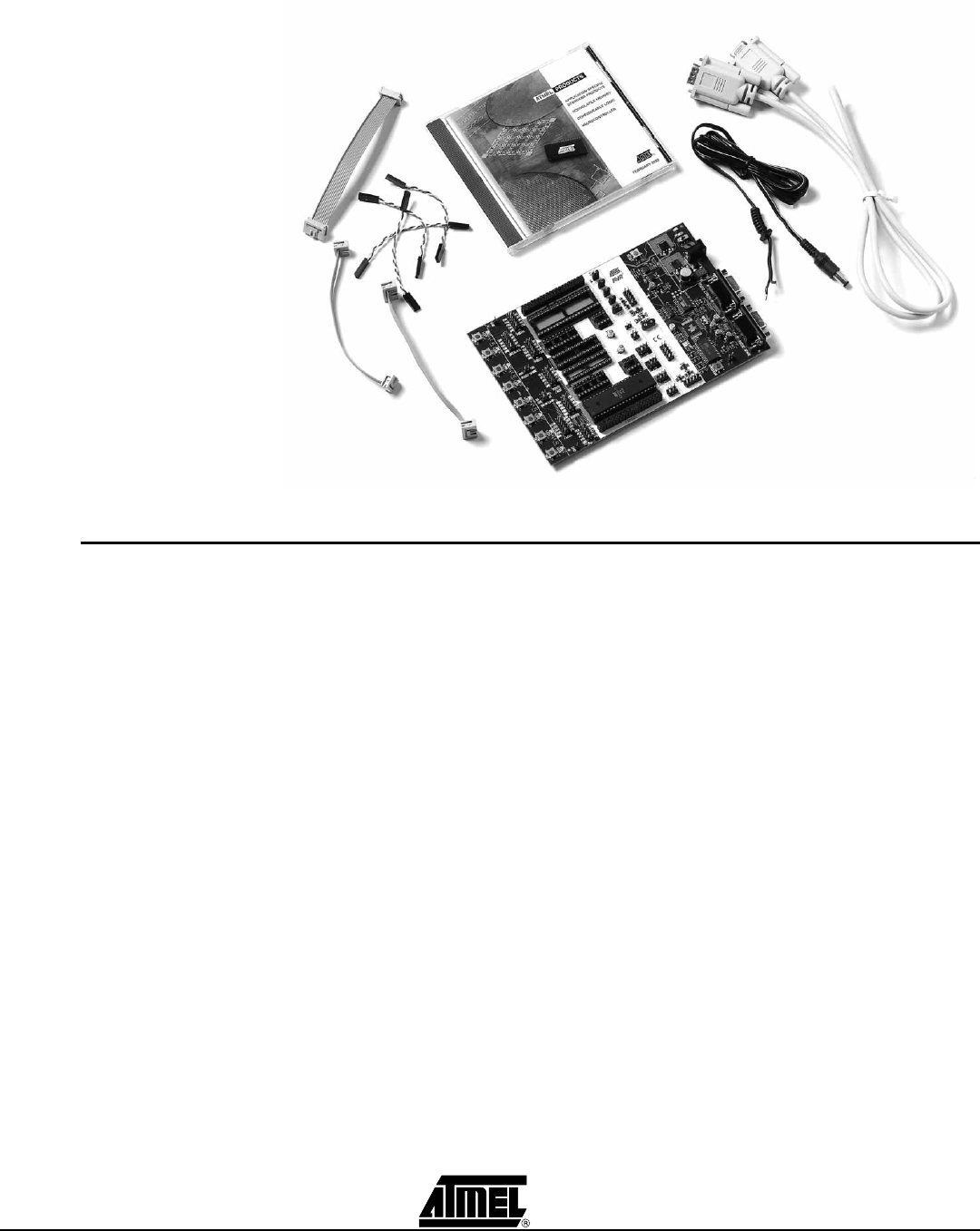

Figure 1-1. STK500

1.2 Device Support The system software currently supports the following devices in all speed grades:

Note: 1. In external target or in STK501, devices do not fit into the sockets of

STK500.

Support for new AVR devices may be added in new versions of AVR Studio. The latest

version of AVR Studio is always available from www.atmel.com.

n AT t i ny 11 n AT90S4433

n AT t i ny 12 n AT90S4434

n AT t i ny 15 n AT90S8515

n AT t i ny 22 n AT90S8535

n AT t i ny 28 n ATmega8

n AT90S1200 n ATmega16

n AT90S2313 n ATmega161

n AT90S2323 n ATmega163

n AT90S2333 n ATmega323

n AT90S2343 n ATmega103

(1)

n AT90S4414 n ATmega128

(1)
