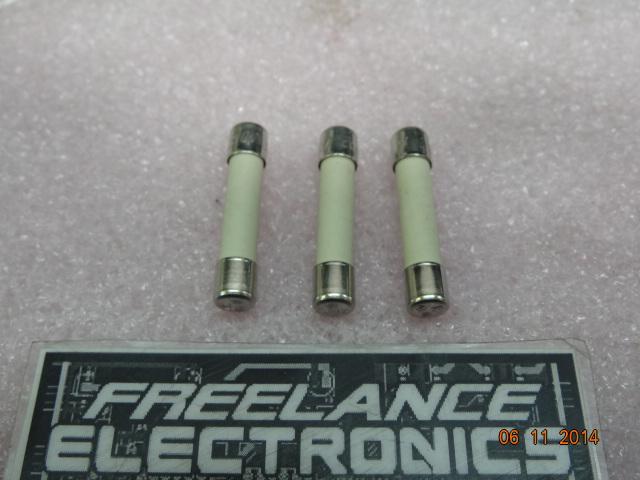

Littelfuse 0314.500H

Cross Number:

Item Description: FUSE CERAMIC 500MA 250VAC 125VDC

Qty Price
1 - 631 $0.39600
632 - 1,618 $0.30900
1,619 - 3,703 $0.27000
3,704 - 7,662 $0.26100
7,663 + $0.23400



Other Cross Reference

Manufacturer Date Code Qty Available Qty
Littelfuse
  • Freelance Stock: 9970
    Ships Immediately


Littelfuse
  • Freelance Stock: 2180
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Ceramic Body
Axial Lead and Cartridge Fuses
3AB Fast-Acting Fuse 314/324 Series
292
www.littelfuse.com
314 000 Series 324 000 Series
6.35 (.25")
32.385
(1.275")
31.75
(1.25")
6.985 (.275")
38.1
(1.50") TYP.
Axial Lead Material: Solder coated copper.
0.813 (.032") ( - 15A)
1.016 (.040") (20 - 30A)
1
8
/
Ceramic body construction permits higher interrupting ratings and volt-
age ratings. Ideal for applications where high current loads are expected.
ELECTRICAL CHARACTERISTICS:
% of Ampere Ampere Opening
Rating Rating Time
110% 1/830 4 hours, Minimum
135% 1/830 1 hour, Maximum
200%
1/812 15 seconds, Maximum
1530 30 seconds, Maximum
AGENCY APPROVALS: Listed by Underwriters Laboratories
and Certified by CSA through 15 amperes at 250 VAC/125 VDC.
Recognized under the Components Program of Underwriters
Laboratories at 20-30A, certified by CSA at 20A, and approved by METI
from 10 through 30 amperes.
AGENCY FILE NUMBERS: UL E10480, CSA LR 29862.
FUSES TO MIL SPEC: See F03A cartridge type in Military Section.
INTERUPTING RATINGS:
0.125 - 20A 10,000A @ 125 VAC/DC
25 - 30A 400A @ 125 VAC/DC
0.125 - 1A 35A @ 250 VAC
2 - 3A 100A @ 250VAC
4 - 15A 750A @ 250VAC
20A 1,000A @ 250VAC
25-30A 100A @ 250VAC
ORDERING INFORMATION:
1000
100
10
1
0.1
0.01
0.1 1 10 100 1000
1/8A
1/4A
3/8A
1/2A
3/4A
1A
2A
3A
4A
5A
6A
7A
8A
10A
12A
15A
20A
25A
30A
TIME IN SECONDS
CURRENT IN AMPERES
Cartridge Axial Lead Nominal Nominal
Catalog Catalog Ampere Voltage Resistance Melting I
2
t
Number Number Rating Rating Cold Ohms A
2
Sec.
314.125 324.125 1/8 250 6.20 0.00149
314.250 324.250 1/4 250 1.95 0.0140
314.375 324.375 3/8 250 0.820 0.050
314.500 324.500 1/2 250 0.500 0.115
314.750 324.750 3/4 250 0.250 0.466
314 001 324 001 1 250 0.189 0.690
314 002 324 002 2 250 0.0700 11.0
314 003 324 003 3 250 0.0432 14.6
314 004 324 004 4 250 0.0470 10.4
314 005 324 005 5 250 0.0300 26.0
314 006 324 006 6 250 0.0240 45.0
314 007 324 007 7 250 0.0187 71.0
314 008 324 008 8 250 0.0153 105.0
314 010 324 010 10 250 0.0105 206.0
314 012 324 012 12 250 0.00760 570.0
314 015 324 015 15 250 0.00505 292.0
314 020 324 020 20 250 0.00355 631.0
314 025 324 025 25 250 0.00235 1450.0
314 030 324 030 30 250 0.00182 2490.0
Average Time Current Curves
®
U
L
®
®
QPL
