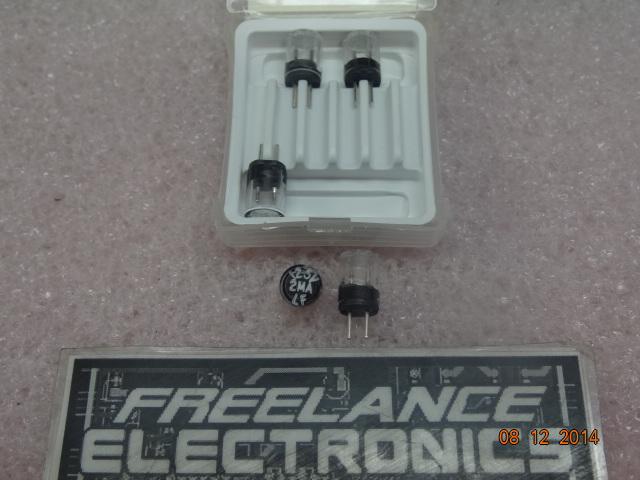

0273.002V

Part # 0273.002V
Description FUSE BRD MNT 2MA 125VAC/VDC RAD
Category FUSE
Availability In Stock
Qty 7330
Qty Price
1 - 5 $49.09801
6 - 12 $39.05523
13 - 27 $36.82351
28 - 58 $34.21982
59 + $30.50028
Manufacturer Available Qty
Littelfuse
Date Code: 2003
  • Shipping Freelance Stock: 5000
    Ships Immediately
Littelfuse
  • Shipping Freelance Stock: 1350
    Ships Immediately
Littelfuse
  • Shipping Freelance Stock: 980
    Ships Immediately

Related Items






0001.1012
SCHURTER
FUSE
0001.1012
$0.18227
0001.1012.PT
SCHURTER
FUSE
0001.1012.PT
$0.22642
0001.2501
Military Spec
FUSE
0001.2501
$0.58967
0001.2512
Military Spec
FUSE
0001.2512
$0.16082
0031.1611
SCHURTER
FUSE
0031.1611
$1.92539


Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Revised: January 7, 2009
131
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Radial Lead Fuses
272/273/274/278/279 Series
Please refer to www.littelfuse.com/series/272.html, /273.html, /274.html,
/278.html or /279.html for current information.
MICRO™ > Very Fast-Acting > 272/273/274/278/279 Series
272-4/278-9
272/273/274/278/279 Series, MICRO™ Very Fast-Acting Fuse
Description
Developed originally for the U.S. Space Program,
MICRO™ fuse provides reliability in a compact design.
The MICRO™ fuse is available in plug–in or radial lead
styles and a complete range of ampere ratings from
1/500 to 5A to suit a wide variety of design needs.
Agency Approvals
Agency Agency File Number Ampere Range
E10480 2mA - 5A
LR 29862 2mA - 5A
QP
L
FM02 2mA - 5A
Features
Electrical Characteristics
Applications
QPL
% of Ampere
Rating
Ampere Rating Opening Time
100% 1/500–5 4 Hours, Min.
200%
1/500–3/10 5 Seconds, Max.
4/10-5 2 Seconds, Max.
Ampere
Rating
(A)
Amp Code
(for all
above
series)
Max
Voltage
Rating
(V)
Interrupting
Rating
Nominal
Cold
Resistance
(Ohms)
Nominal
Melting
I
2
t (A
2
sec)
Agency Approvals
QP
L
.002 .002 125
10,000 amperes at
125 VAC/VDC.
2200 0.00000000845
XXX
.005 .005 125 280 0.00000000810
XXX
.010 .010 125 80.0 0.000000462
XXX
.015 .015 125 44.0 0.00000123
XXX
.031 .031 125 16.0 0.00000810
XXX
.050 .050 125 3.20 0.0000666
XXX
.062 .062 125 2.32 0.000115
XXX
.100 .100 125 1.25 0.000385
XXX
.125 .125 125 1.0 0.000691
XXX
.200 .200 125 2.30 0.00409
XXX
.250 .250 125 1.75 0.00640
XXX
.300 .300 125 1.25 0.00945
XXX
.400 .400 125 0.227 0.0251
XXX
.500 .500 125 0.167 0.0716
XXX
.600 .600 125 0.430 0.0411
XXX
.700 .700 125 0.324 0.0710
XXX
.750 .750 125 0.293 0.0900
XXX
.800 .800 125 0.271 0.113
XXX
1.00 001. 125 0.0880 0.0648
XXX
01.5 01.5 125 0.0578 0.160
XXX
2.00 002. 125 0.0425 0.300
XXX
3.00 003. 125 0.0275 0.759
XXX
4.00 004. 125 0.0202 1.38
XXX
5.00 005. 125 0.0156 2.21
XXX
Electrical Characteristics
Military grade availablet
High breaking capacityt
Clear cover option to view t
fuse element status
Available from very low t
ampere of 2mA to 5A
Plug-in with short or long t
leads option
Printed circuit boards t
and similar equipment
Electronic componentst
Revised: January 7, 2009
Introduction to Circuit Protection
Introduction to Circuit Protection
Transientology
132
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Radial Lead Fuses
272/273/274/278/279 Series
Please refer to www.littelfuse.com/series/272.html, /273.html, /274.html,
/278.html or /279.html for current information.
MICRO™ > Very Fast-Acting > 272/273/274/278/279 Series
Average Time Current Curves
100
10
1
0.1
0.01
0.001
1
10
100
0.01
0.1
0.005
1/64 A
1/100 A
1/200 A
1/32 A
1/16 A
1/8 A
1/4 A
1/2 A
3/4 A
1 A
1 1/2 A
2 A
3 A
4 A
5 A
TIME IN SECONDS
CURRENT IN AMPERES
Temperature Rerating Curve
Soldering Parameters - Wave Soldering
Dwell Time
0
20
40
60
80
100
120
140
160
180
200
220
240
260
280
300
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
Time (Seconds)
Temperature (°C) - Measured on bottom side of board
Cooling Time
Preheat Time
Wave Parameter Lead-Free Recommendation
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Temperature Minimum:
100
° C
Temperature Maximum:
150
° C
Preheat Time: 60-180 seconds
Solder Pot Temperature:
260
° C Maximum
Solder Dwell Time: 2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350° C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Recommended Process Parameters:
Revised: January 7, 2009
133
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Radial Lead Fuses
272/273/274/278/279 Series
Please refer to www.littelfuse.com/series/272.html, /273.html, /274.html,
/278.html or /279.html for current information.
MICRO™ > Very Fast-Acting > 272/273/274/278/279 Series
272-4/278-9
Product Characteristics
Operating Temperature:
273 and 279: –55ºC to +85ºC;
272 and 278: –55ºC to +125ºC
Fuses to MIL SPEC
273 Series is available in CSA LR
29862. Military QPL type (FM02).
To order, change 273 to 274.
Materials
272 and 278 series cap:
Nickel Plated Brass
273, 274 and 279 series cap:
Mirror polished Polycarbonate
Base: R-4 Ryton
Pins: Tin Plated Copper
Product Marking
Current and voltage ratings stamped
on cap
Dimensions
7.30
(.29")
(.17")
8.89
(.35")
2.54 (.10")
7.30
(.29")
25.4 (1.0")
2.54 (.10")
25.4 (1.0")
2.54 (.10")
5.97
(.235")
6.35
(.25")
5.97
(.235")
2.54 (.10")
8.89
(.35")
6.35
(.25")
272 000 Series
273 000 and 274 000 Series
278 000 Series
279 000 Series
(Short Lead, Metal Cap)
(Short Lead, Clear Plastic Cap)
(Long Lead, Metal Cap)
(Long Lead, Clear Plastic Cap)
NOTE: Amperage and voltage rating stamped on cap.
Leads are tin plated copper; .025" diameter.
(.17")
4.32
4.32
Part Numbering System
0273 xxxx V
Packaging Code
Amp. Code
Series
Refer to Amp Code column of
Electrical Characteristics Table
V = 5
H = 100
Packaging
Packaging Option Packaging Specification Quantity
Quantity &
Packaging Code
Bulk N / A 5 V
Bulk N / A 100 H
