BCD.00283_AA_September-18-2013 1 www.power-one.com
DATA SHEET
Instrumentation
Lighting
Industrial Applications
Test and Measurement
Renewable Energy
Wireless Data
Automation Control
Applied Computing

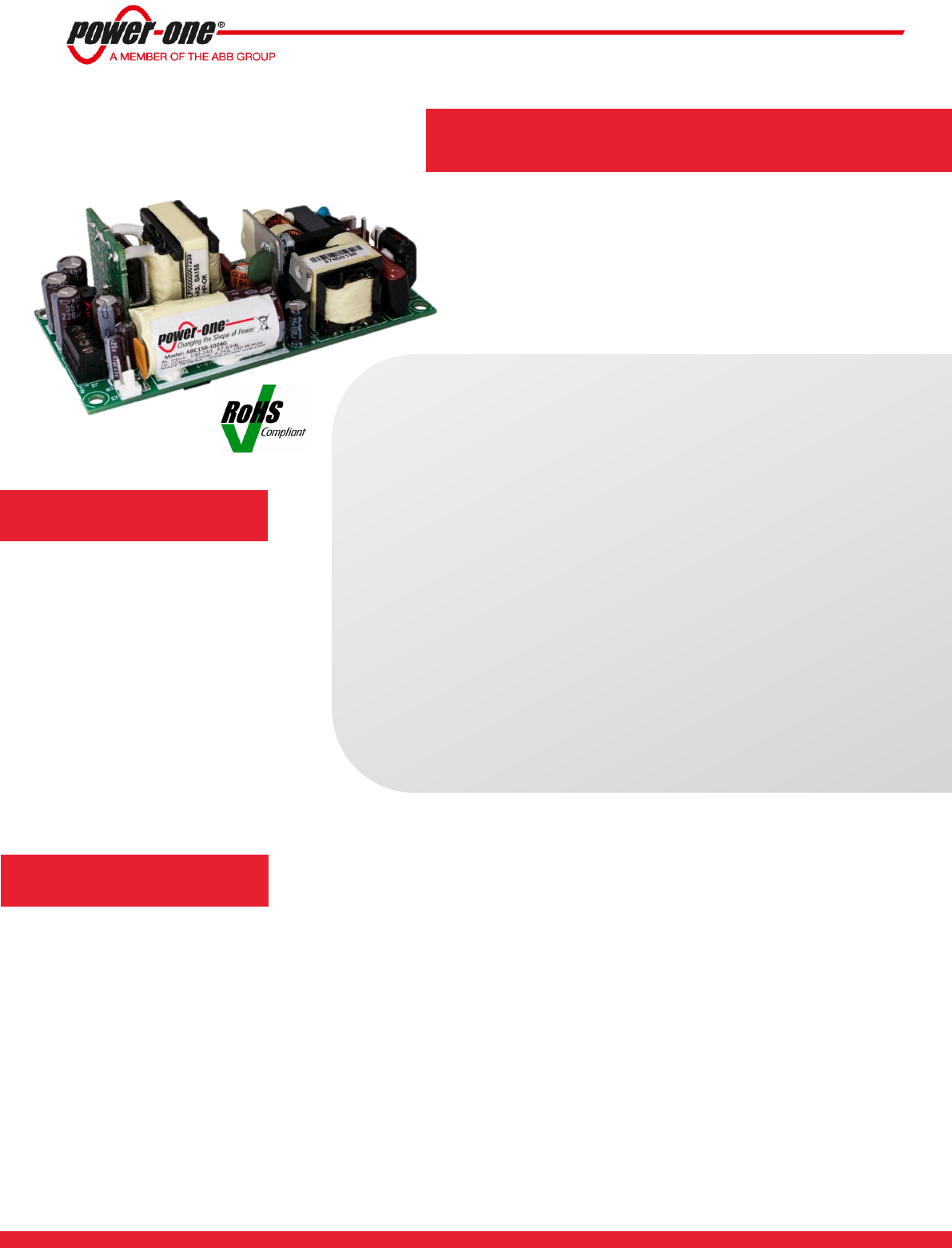

ABC150 SERIES 150W AC/DC
110 W convection cooled
-20 to 50 deg C full load operation
90-264 VAC input
2” x 4” x 1.3” (101.6 x 50.8 x 33.6 mm)
No minimum load required
Fan output, 12 Vdc @ 0.5A standard
Conducted EMI EN 55022-B, FCC Part 15 Level B
ITE Safety Agency Approvals
RoHS Compliant
FEATURES
APPLICATIONS
ABC150 Series 2 www.power-one.com
TECHNICAL DATA:
Input
PARAMETER
DESCRIPTION/CONDITION
Input voltage range
Universal Input
90 - 264 Vac
120 390 Vdc
Input frequency range
47-63 Hz
Input surge current
230 Vac (cold start)
65 A max.
Safety ground leakage current
230 Vac
< 300 μA
Input current
120 Vac @ 150 W
230 Vac @ 150 W
1.7 A
0.85 A
Output
PARAMETER
DESCRIPTION/CONDITION
Voltage Adjustment
V1
± 3%
Transient Response
Main output 50 to 100% load change, 50
Hz, 50% duty cycle, 0.1A / uSec
< 10%, recovery time < 5 mSec
Over Voltage Protection
V1
110 to 150% rated max
Over Current Protection
Rated output current
110% Typical
Short Circuit Protection
Automatic recovery
Efficiency
>86%
Set Point Accuracy
± 1%
Rise Time
< 100 mSec
Ordering Information
PRODUCT FAMILY
VOLTS
(VDC)
MAX LOAD
CONVECTION (1)
MAX LOAD
300 LFM (1)
MINIMUM
LOAD (A)
RIPPLE &
NOISE (4)
CONNECTOR
TOTAL
REGULATION
ABC150-1005G
5.0
16.0 A
16 A
0
1%
JST
± 2.5%
ABC150-1T05G
5.0
16.0 A
20 A
0
1%
Screw Terminal
± 2.5%
ABC150-1012G
12
8.33 A
12.5 A
0
1%
JST
± 2.5%
ABC150-1T12G
12
8.33 A
12.5 A
0
1%
Screw Terminal
± 2.5%
ABC150-1015G
15
6.67 A
10.0 A
0
1%
JST
± 2.5%
ABC150-1T15G
15
6.67 A
10.0 A
0
1%
Screw Terminal
± 2.5%
ABC150-1024G
24
4.17 A
6.25 A
0
1%
JST
± 2.5%
ABC150-1T24G
24
4.17 A
6.25 A
0
1%
Screw Terminal
± 2.5%
ABC150-1048G
48
2.08 A
3.13 A
0
1%
JST
± 2.5%
ABC150-1T48G
48
2.08 A
3.13 A
0
1%
Screw Terminal
± 2.5%
Vfan (all models)
12
0.5 A (3)
0.5 A (3)
0
20%
BCD.00283_AA_September-18-2013 3 www.power-one.com
DATA SHEET
Notes:
1. Combined power from main output and Vfan should not exceed total power rating.
2. Fan output tolerance is ± 20%
3. Peak power for fan output is 1 A.
4. Ripple is 2% up to 20% load and less than 1% above 20% load. Output noise measurement is made with a 20 MHz
bandwidth using a 6” twisted pair, terminated with a 10 uF tantalum capacitor in parallel with a 0.1 uF ceramic capacitor.
5. Specifications are for nominal input voltage, 25° C and max load unless otherwise stated.
6. Air flow over length of supply recommended (either direction) for forced air rating.
7. Class 1 models have Earthing tab J4. Class 2 models (-2 suffix) have no Earthing tab.
8. Specifications subject to change without notice.
9. Warranty 2 years.
General Specifications
PARAMETER
DESCRIPTION/CONDITION
Hold Up Time
120 Vac
6 mSec
230 Vac
10 mSec
MTBF
>200 khrs
Bellcore TR-332
Switching Frequency
PFC converter variable 35 to 250 kHz, 90
kHz typical
Resonant converter: Variable 35 to 250
kHz, 90 kHz typical
Isolation Voltage
Input to Output Min 4242 Vdc
Input to Ground 2120 Vdc
Weight
150 g (0.33 lbs)
Environmental
PARAMETER
DESCRIPTION/CONDITION
Operating Temperature
Operating
-20 to +70° C. See derating chart below.
Storage
-40 to +85° C
Altitude
Operating 10,000 ft.
Non-operation 40,000 ft.
Conducted emissions:
EN55022, FCC part 15 Level B
Humidity
95%
Non-Condensing
Radiated Emissions
EN55022, FCC part 15 Level B
To be controlled in end system
Electromagnetic Susceptibility
EN61000-4-2 Level 3
2, 3, 4, 5 Level 3
Harmonic Current
EN61000-3-2, Class D
Safety
PARAMETER
DESCRIPTION/CONDITION
EN / UL / CSA
EN60950-1+A12:2011, IEC60950-1 2
nd
+A1 2009, CSA-22.2 No 60950-01-07+ A1,
UL60950-1-2011
12NEXT
