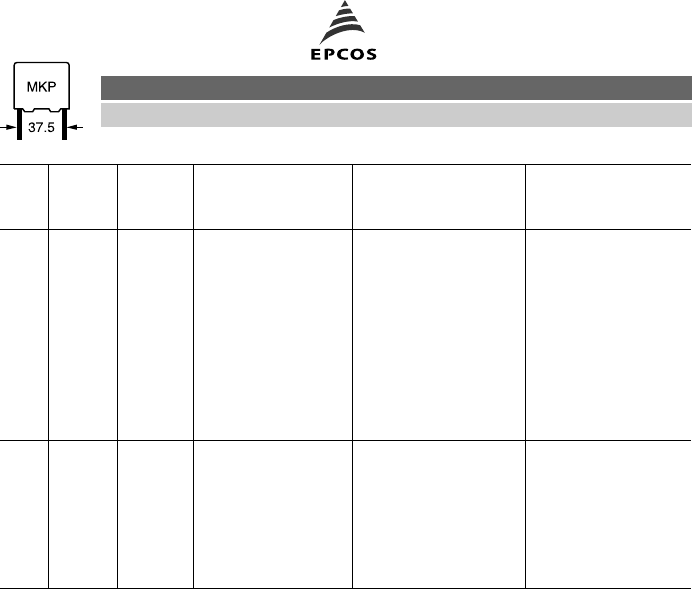

Ordering codes and packing units (lead spacing 37.5 mm)
V
R
V DC
V
RMS
f ≤1 kHz
V AC
C
R
nF
Max. dimensions
w × h × l
mm
Ordering code
(composition see
below)
Untaped
pcs./MOQ
MOQ = Minimum Order Quantity, consisting of 4 packing units.
Further E series and intermediate capacitance values on request.
Composition of ordering code
+ = Capacitance tolerance code: *** = Packaging code:
K = ±10%
J = ±5%
000 = Untaped (lead length 6 1 mm)
850 450 220 12.0 × 22.0 × 42.0 B32656A8224+000 1620
330 12.0 × 22.0 × 42.0 B32656A8334+000 1620
470 12.0 × 22.0 × 42.0 B32656A8474+000 1620
680 16.0 × 28.5 × 42.0 B32656A8684+000 800
680 24.0 × 15.0 × 41.5 B32656T8684+000 1040
820 24.0 × 19.0 × 41.5 B32656T8824+000 780
1000 18.0 × 32.5 × 42.0 B32656A8105+000 720
1000 500 470 14.0 × 25.0 × 42.0 B32656A0474+000 1380
470 24.0 × 15.0 × 41.5 B32656T0474+000 1040
680 16.0 × 28.5 × 42.0 B32656A0684+000 800
680 24.0 × 19.0 × 41.5 B32656T0684+000 780
1000 20.0 × 39.5 × 42.0 B32656A0105+000 640
1200 28.0 × 37.0 × 42.0 B32656A0125+000 440
1500 28.0 × 37.0 × 42.0 B32656A0155+000 440
2200 30.0 × 45.0 × 42.0 B32656A0225+000 400
1250 500 220 14.0 × 25.0 × 42.0 B32656A7224+000 1380
270 24.0 × 15.0 × 41.5 B32656T7274+000 1040
330 16.0 × 28.5 × 42.0 B32656A7334+000 800
390 24.0 × 19.0 × 41.5 B32656T7394+000 780
470 18.0 × 32.5 × 42.0 B32656A7474+000 720
680 20.0 × 39.5 × 42.0 B32656A7684+000 640
820 28.0 × 37.0 × 42.0 B32656A7824+000 440
1000 28.0 × 37.0 × 42.0 B32656A7105+000 440
1200 28.0 × 42.5 × 41.5 B32656A7125+000 440
B32656
High pulse (wound)
Page 17 of 39Please read Cautions and warnings and
Important notes at the end of this document.
