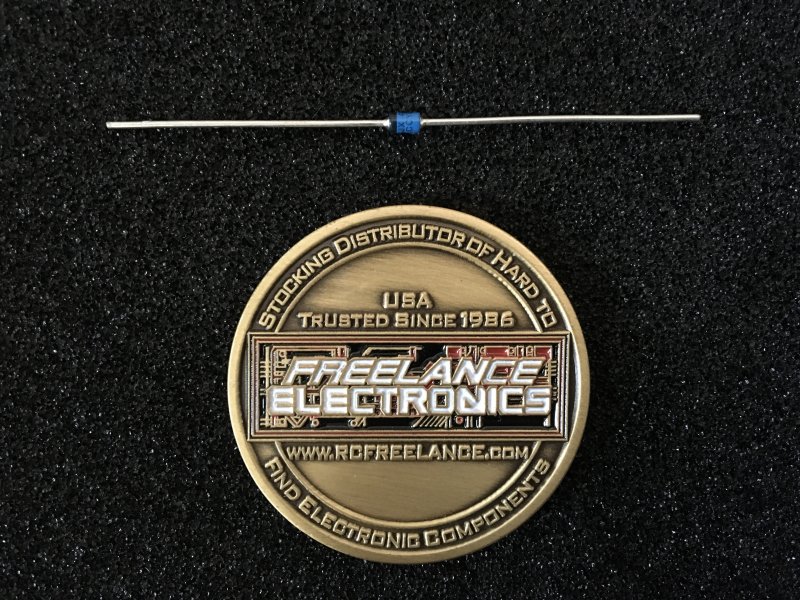

General Instrument JANTX1N4246

Cross Number: 1N4246JANTX

Item Description: STANDARD RECTIFIER (TRR MORETHAN 500NS) (REC) - Bulk

Qty Price
1 - 11 $7.58287
12 - 23 $5.91694
24 - 35 $5.17014
36 - 47 $4.99780
48 + $4.48079



Other Cross Reference

Manufacturer Date Code Qty Available Qty
Microsemi Corp
  • Freelance Stock: 15
    Ships Immediately


General Instrument
  • Freelance Stock: 21
    Ships Immediately


SENSITRON
  • Freelance Stock: 6
    Ships Immediately


UNITRODE
  • Freelance Stock: 1
    Ships Immediately


General Instrument
  • Freelance Stock: 14
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

221 WEST INDUSTRY COURT DEER PARK, NY 11729-4681 PHONE (631) 586-7600 FAX (631) 242-9798
World Wide Web - http://www.sensitron.com E-mail Address - sales@sensitron.com
.250
.140
(6.35
3.56
)
1.50
1.00
(38.1
25.4
)
.150
.065
(3.81
1.65
)
0.033
0.027
(.84
.69)
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 129, REV. A
HERMETIC AXIAL LEAD RECTIFIER
DESCRIPTION: A 200/400/600/800/1000 VOLT, 1.5 AMP, 5000 NANOSECOND RECTIFIER.
MAX. RATINGS / ELECTRICAL CHARACTERISTICS All ratings are at T
A
= 25
o
C unless otherwise specified.
RATING CONDITIONS MIN TYP MAX UNIT
Peak Inverse Voltage
(PIV)
1N4245
1N4246
1N4247
1N4248
1N4249
- - -
200
400
600
800
1000
Vdc
Average DC Output
Current (I
o
)
T
C
= 55
o
C
T
C
= 100
o
C
- - 1.5
1.0
Amps
Peak Single Cycle Surge
Current (I
fsm
)
t
p
= 8.3 ms Single Half
Cycle Sine Wave,
Superimposed On
Rated Load
- - 25 Amps(pk)
Operating and Storage
Temp. (T
op
& T
stg
)
- -65 - +175
°C
Maximum Forward
Voltage (V
f
)
I
f
= 3.0A (300 µsec
pulse, duty cycle < 2%)
- - 1.3 Volts
Maximum Instantaneous
Reverse Current At Rated
(PIV)
T
A
= 25 °C
T
A
= 100 °C
- - 1.0
25
µAmps
Reverse Recovery Time
(t
rr
)
I
f
= 0.5A, I
r
= 1.0A, I
rr
=
0.25A
- - 5000 nsec
Thermal Resistance (R
θJL
)
- - - 38
°C/W
MECHANICAL DIMENSIONS: In Inches / mm
Note: The cathode side is marked with a dark colored band on the diode body.
JAN
JANTX
JANTXV
1N4245
1N4246
1N4247
1N4248
1N4249
PKG. 103
221 West Industry Court Deer Park, NY 11729-4681 (631) 586-7600 FAX (631) 242-9798
World Wide Web - http://www.sensitron.com E-Mail Address - sales@sensitron.com
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version
of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment, and safety equipment), safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement.
3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual
property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from
use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
Sensitron Semiconductor.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations.
