COMPENSATED DEVICES, INC. JANTX1N4153-1

Cross Number: 1N4153-1JANTX

Item Description: SWITING 75V 0.15A 2PIN DO-35- Bulk
Additional Information:

Qty Price
1 - 22 $11.29009
23 - 55 $8.98076
56 - 118 $8.46757
119 - 254 $7.86885
255 + $7.01354





Related Items

SEMICON
DIODE

JANTX1N1184

$52.22250
MSC / SEMICON
DIODE

JANTX1N1184R

$33.63360
Microsemi Corp
DIODE

JANTX1N1186

$46.91676
SEMICON
DIODE

JANTX1N1186R

$45.68573
SEMICON
DIODE

JANTX1N1188

$39.60000
NAE
DIODE

JANTX1N1202A

$22.21560


Manufacturer Date Code Qty Available Qty
Semtech Corporation
  • Freelance Stock: 14
    Ships Immediately


Semtech Corporation
  • Freelance Stock: 1
    Ships Immediately


COMPENSATED DEVICES, INC. 0815
  • Freelance Stock: 6300
    Ships Immediately


COMPENSATED DEVICES, INC. 1004
  • Freelance Stock: 4950
    Ships Immediately


MSC/SEMTECH
  • Freelance Stock: 22
    Ships Immediately


Semtech Corporation
  • Freelance Stock: 4
    Ships Immediately


COMPENSATED DEVICES, INC. 0815
  • Freelance Stock: 392
    Ships Immediately


Microsemi Corp 0510
  • Freelance Stock: 8
    Ships Immediately


Microsemi Corp 0334
  • Freelance Stock: 13
    Ships Immediately


UNITRODE 8550
  • Freelance Stock: 5
    Ships Immediately


UNITRODE 8723
  • Freelance Stock: 1
    Ships Immediately


Microsemi Corp
  • Freelance Stock: 14
    Ships Immediately


Semtech Corporation
  • Freelance Stock: 5
    Ships Immediately


Semtech Corporation 9911
  • Freelance Stock: 37
    Ships Immediately


Microsemi Corp
  • Freelance Stock: 14
    Ships Immediately


Microsemi Corp
  • Freelance Stock: 3
    Ships Immediately


Semtech Corporation
  • Freelance Stock: 21
    Ships Immediately


N/A 8636
  • Freelance Stock: 10
    Ships Immediately


Microsemi Corp
  • Freelance Stock: 1
    Ships Immediately







Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

V
F1
V
F2
V
F3
V
F4
V
F5
V
F6
Limits I
F
= 100 µA dc I
F
= 250 µA dc I
F
= 1 mA dc I
F
= 2 mA dc I
F
= 10 mA dc I
F
= 20 mA dc
V dc V dc V dc V dc V dc V dc
minimum 0.49 0.53 0.59 0.62 0.70 0.74
maximum 0.55 0.59 0.67 0.70 0.81 0.88
Type V
BR
V
RWM
I
R1
1
R2
Ct
rr
V
R
= 50 V dc V
R
= 50 V dc V
R
= 0; f = 1 Mhz; I
F
= I
R
= 10 mA dc
I
R
= 5 µA T
A
= 25°C T
A
= 150°C R
L
= 100 ohms
V dc V (pk) nA dc µA dc pF ns
1N4153-1 75 50 50 50 2.0 4
22 COREY STREET, MELROSE, MASSACHUSETTS 02176
PHONE (781) 665-1071 FAX (781) 665-7379
WEBSITE: http://www.cdi-diodes.com E-mail: mail@cdi-diodes.com
1N4153
and
1N4153-1
MAXIMUM RATINGS
Junction Temperature: -65°C to +175°C
Storage Temperature: -65°C to +175°C
Operating Current: 150 mA @ T
A
= +25°C
Derating: 1.0 mA dc/°C Above T
A
= +25°C
Forward Surge Current: 2A (pk), (tp = 1µs); 0.25A (pk), (tp = 1s)
ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
1N4153 and 1N4153-1 AVAILABLE IN
JAN, JANTX,
AND
JANTXV
PER MIL-PRF-19500/337
SWITCHING DIODES
HERMETICALLY SEALED
METALLURGICALLY BONDED
DOUBLE PLUG CONSTRUCTION

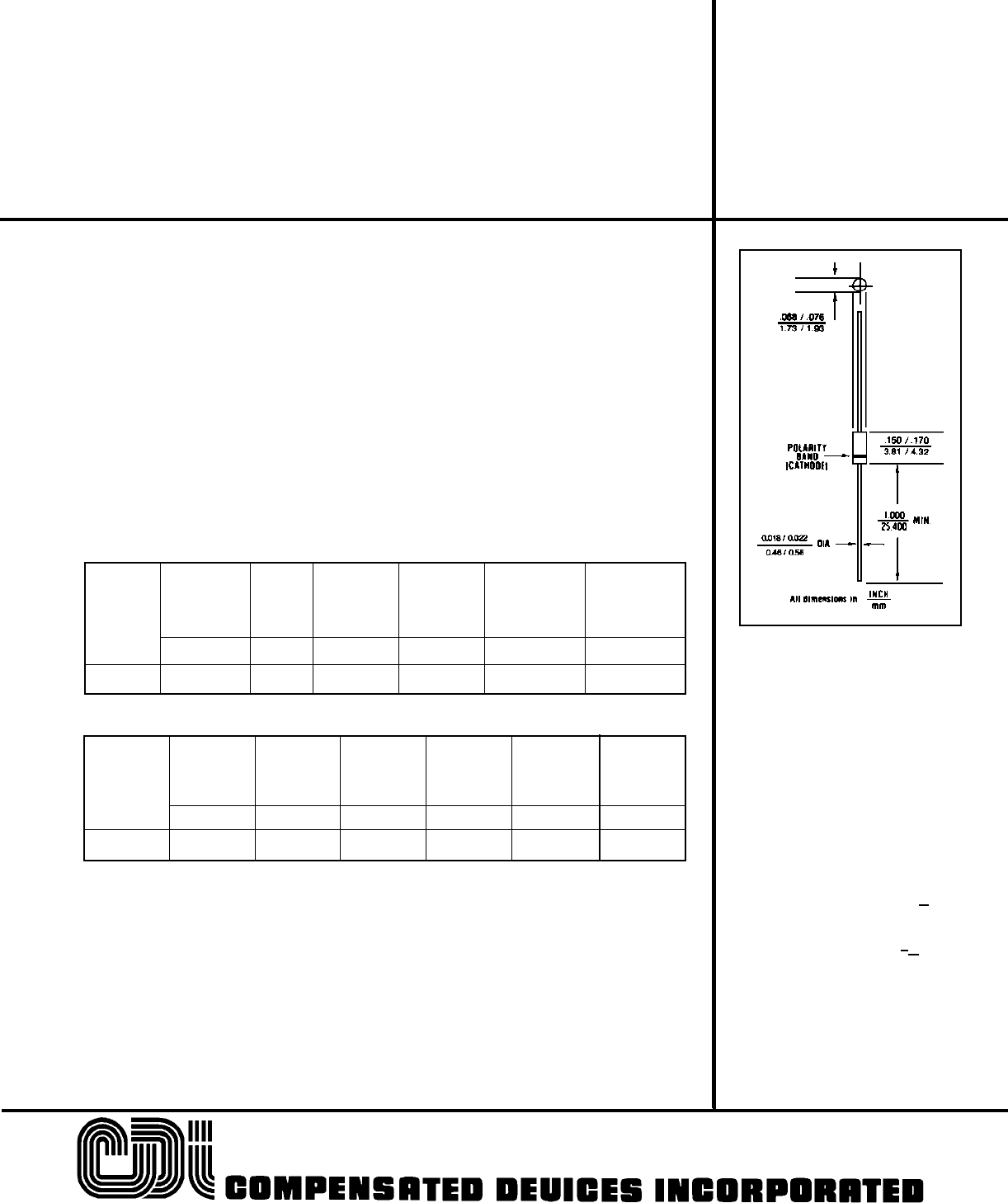

FIGURE 1
DESIGN DATA
CASE: Hermetically sealed
glass case per MIL-S-19500/337
D0-35 outline
LEAD MATERIAL: Copper clad steel.
LEAD FINISH: Tin / Lead
THERMAL RESISTANCE: (R
O
JL
):
250 ˚C/W maximum at L = .375
THERMAL IMPEDANCE: (Z
O
JX
): 70
˚C/W maximum
POLARITY: Cathode end is banded.
MOUNTING POSITION: Any.
FORWARD VOLTAGE LIMITS – ALL TYPES
IN4153 and IN4153-1
.3 .4 .5 .6 .7 .8 .9 1.0 1.1 1.2 1.3
VF - Forward Voltage (V)

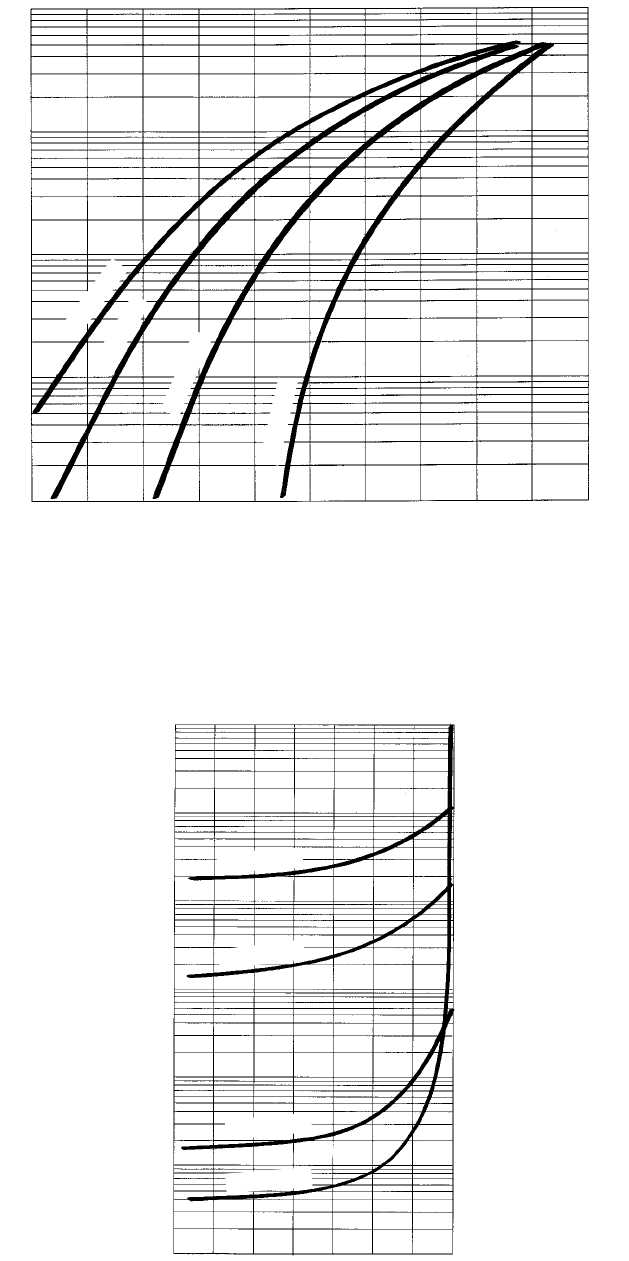

FIGURE 2
Typical Forward Current
vs Forward Voltage
I
F
- Forward Current - (mA)
1000
100
10
1
0.1
150ºC
100ºC
25ºC
-65ºC
20 40 60 80 100 120 140
Percent of Reverse Working Voltage (%)
FIGURE 3
Typical Reverse Current
vs Reverse Voltage
I
R
- Reverse Current - (µA)
1000
100
10
1
0.1
.01
.001
150ºC
100ºC
25ºC
-65ºC
NOTE : All temperatures shown on graphs are
junction temperatures
