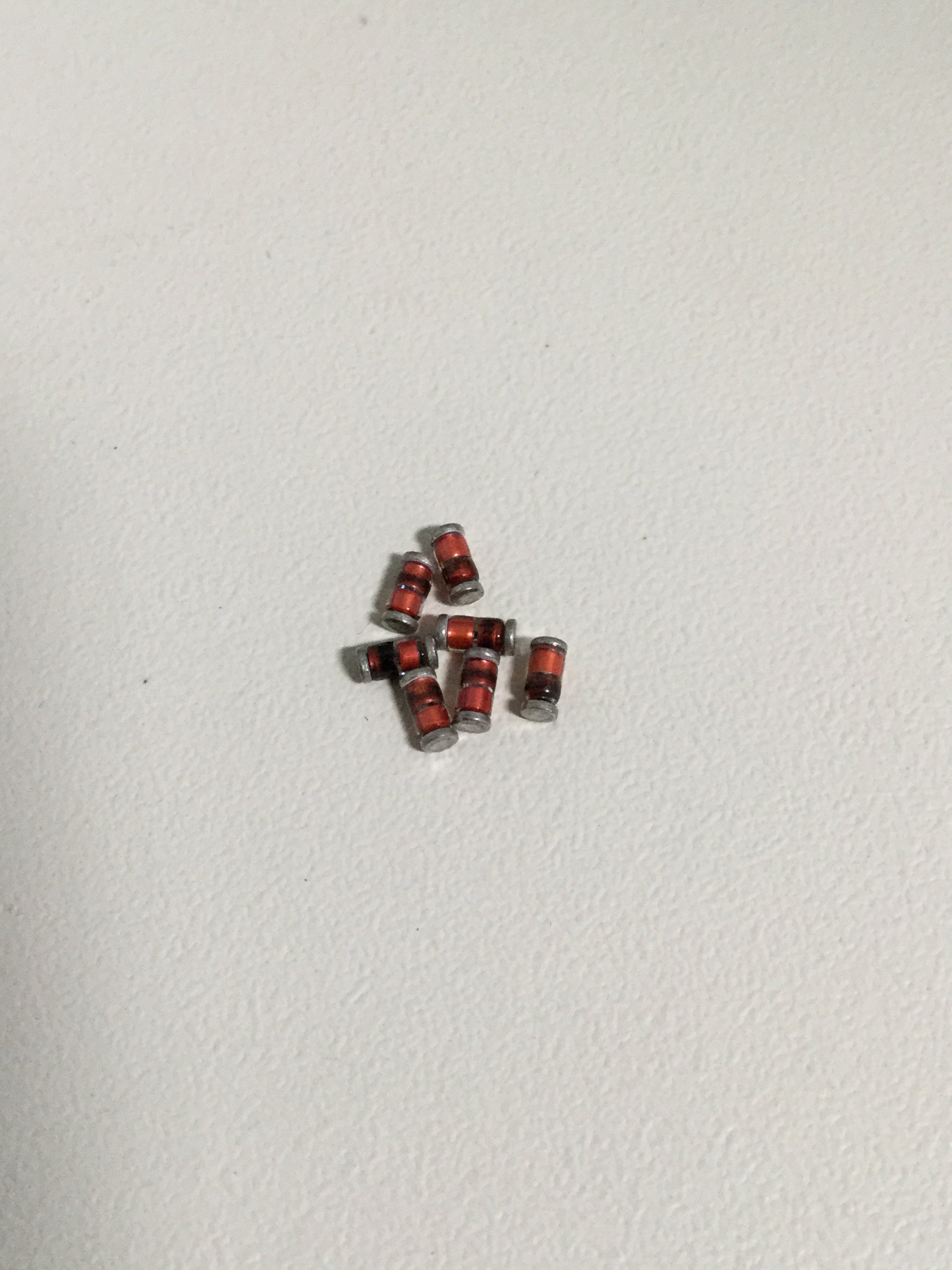

Microsemi Corp JANTX1N4148UR-1

Cross Number: 1N4148UR-1JANTX

Item Description: SWITING 75V 0.2A 2PIN DO-213AA - Bulk
Additional Information:

Qty Price
1 - 22 $6.30142
23 - 44 $5.01249
45 - 67 $4.72606
68 - 89 $4.39190
90 + $3.91452





Related Items

SEMICON
DIODE

JANTX1N1184

$52.22250
MSC / SEMICON
DIODE

JANTX1N1184R

$25.48000
Microsemi Corp
DIODE

JANTX1N1186

$46.91676
SEMICON
DIODE

JANTX1N1186R

$34.61040
NAE
DIODE

JANTX1N1202A

$22.21560
Microsemi Corp
DIODE

JANTX1N1202AR

$55.52670


Manufacturer Date Code Qty Available Qty
Microsemi Corp
  • Freelance Stock: 7
    Ships Immediately


Microsemi Corp
  • Freelance Stock: 57
    Ships Immediately


N/A
  • Freelance Stock: 24
    Ships Immediately


N/A
  • Freelance Stock: 19
    Ships Immediately







Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

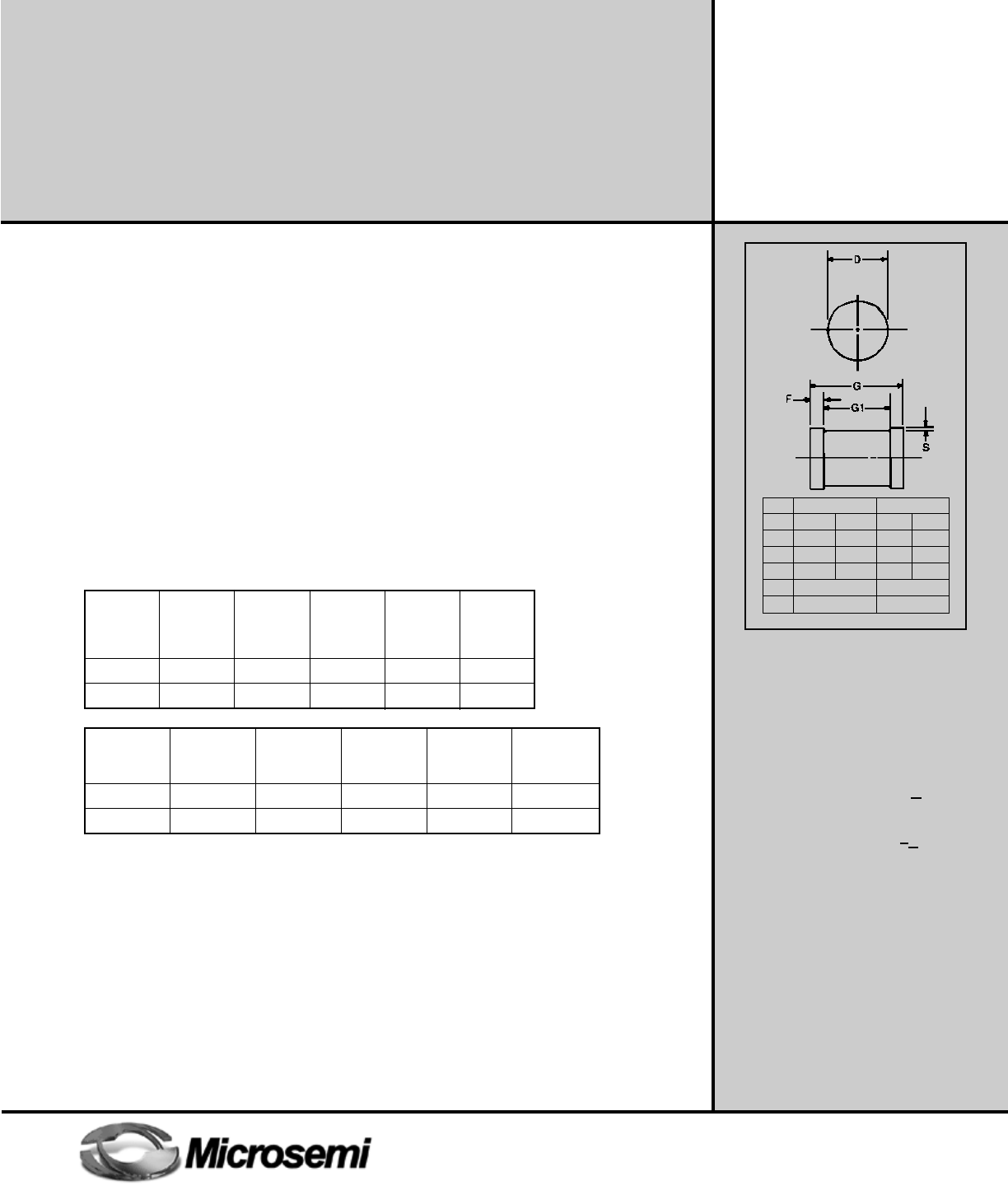

MILLIMETERS INCHES
DIM MIN MAX MIN MAX
D 1.60 1.70 0.063 0.067
F 0.41 0.55 0.016 0.022
G 3.30 3.70 .130 .146
G1 2.54 REF. .100 REF.
S 0.03 MIN. .001 MIN.
113
6 LAKE STREET, LAWRENCE, MASSACHUSETTS 01841
PHONE (978) 620-2600 FAX (781) 689-0803
WEBSITE: http://www.microsemi.com
ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified
MAXIMUM RATINGS
Operating Temperature: -65°C to +200°C
Storage Temperature: -65°C to +200°C
Operating Current: 200 mA @ T
A
= + 25°C
Derating Factor: 1.14 mA/°C Above T
A
= + 25°C
Surge Current A: 2A, sine wave, P
w
= 8.3ms
Surge Current B: 1.41A, square wave, P
w
= 8.3ms
• 1N4148UR-1 AVAILABLE IN JAN, JANTX, AND JANTXV
PER MIL-PRF-19500/116
• SWITCHING DIODE
• HERMETICALLY SEALED
• METALLURGICALLY BONDED
• DOUBLE PLUG CONSTRUCTION
FIGURE 1
DESIGN DATA
CASE: DO-213AA, Hermetically sealed
glass case. (MELF, SOD-80, LL34)
LEAD FINISH: Tin / Lead
THERMAL RESISTANCE (R
OJEC
):
100 °C/W maximum AT L = 0
THERMAL IMPEDANCE: (Z
O
JX
): 70
°C/W maximum
POLARITY: Cathode end is banded.
MOUNTING SURFACE SELECTION:
The Axial Coefficient of Expansion
(COE) Of this Device is Approximately
+6PPM/°C. The COE of the Mounting
Surface System Should Be Selected To
Provide A Suitable Match With This
Device.
1N4148UR-1
and
CDLL4148
I
R1
I
R2
I
R3
I
R4 CAPACITANCE CAPACITANCE
@ 20 V dc @ 75 V dc @ 20 V @ 75 V @ 0 V @ 1.5 V
T
A
= 150°C T
A
= 150°C
nA µA µA µA pF pF
25 0.5 35 75 4.0 2.8
V
f 1
V
f 2
t
rr
V
BR
V
RWM
I
0@
I
F
= 10 mA
@
I
F
= 100 mA
(Note 1)
@100
µ
A
Volts Volts (pk) mA V dc V dc n sec
100 75 200 0.8 1.2 5
114
IN4148UR-1
and CDLL4148
.3 .4 .5 .6 .7 .8 .9 1.0 1.1 1.2 1.3
VF - Forward Voltage (V)
FIGURE 2

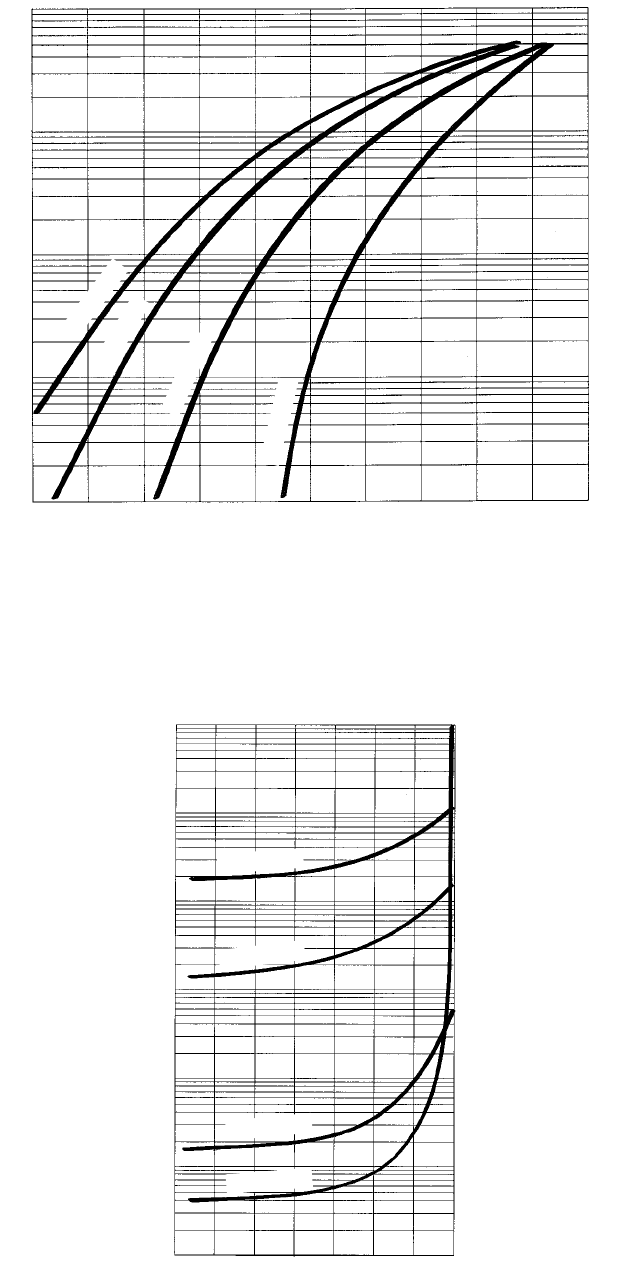

Typical Forward Current
vs Forward Voltage
I
F
- Forward Current - (mA)
1000
100
10
1
0.1
150ºC
100ºC
25ºC
-65ºC
20 40 60 80 100 120 140
Percent of Reverse Working Voltage (%)
FIGURE 3
Typical Reverse Current
vs Reverse Voltage
I
R
- Reverse Current - (µA)
1000
100
10
1
0.1
.01
.001
150ºC
100ºC
25ºC
-65ºC
NOTE : All temperatures shown on graphs are
junction temperatures
