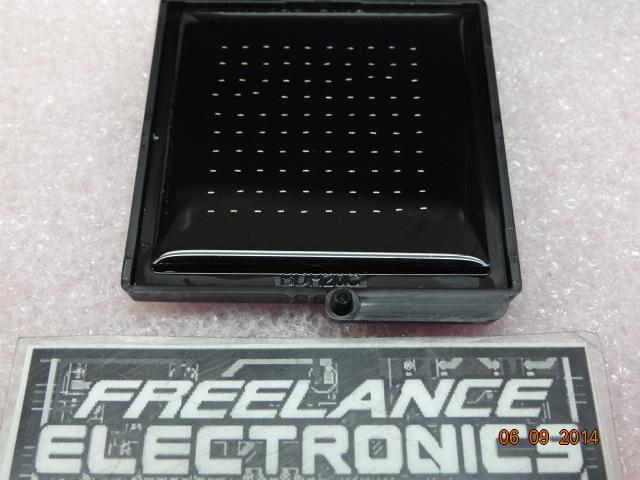

DSM8100-000

Part # DSM8100-000
Description PIN Diodes Mesa Beam-Lead PINDiode
Category DIODE
Availability Out of Stock
Qty 0
Qty Price
1 + $6.05000



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200096 Rev. B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • February 7, 2005 1
Characteristic Value
Operating temperature -65 °C to +150 °C
Storage temperature -65 °C to +200 °C
Power dissipation (derate 250 mW
linearly to zero @ 175 °C)
Typical lead strength 8 grams pull
Absolute Maximum Ratings
Applications:
Designed for switching applications
Features
Low capacitance
Low resistance
Fast switching
Oxide–nitride passivated
Durable construction
High voltage
Description
Skyworks’ Silicon Mesa Beam Lead PIN diode is surrounded by a
glass frame for superior strength and electrical performance that
surpasses the standard beam lead PINs. The DSM8100-000 is
designed for low resistance, low capacitance and fast switching
time. The oxide-nitride passivation layers provide reliable opera-
tion and stable junction parameters that provide complete sealing
of the junction permitting use in assemblies with some degree of
moisture sealing. A layer of glass provides increased mechanical
strength.
The DSM8100 is ideal for microstrip or stripline circuits and for
circuits requiring high isolation from a series mounted diode such
as broad band multi-throw switches, phase shifters, limiters,
attenuators and modulators.
DSM8100-000: Mesa Beam Lead PIN Diode
DATA SHEET
Voltage Breakdown Capacitance Total Series Resistance () C
LT
Outline
@ I
R
10
µµ
A 10 V, 1 MHz 10 mA,100 MHz I
F
= 10 mA, I
R
= 6 mA Drawing
Part Number (V) Min. (pF) Max. Max. (ns) Typ. Number
DSM8100-000 60 0.025 3.5 25 389-003
Mesa Beam Lead Diode Specifications
Performance is guaranteed only under the conditions listed in the specifications table and is
not guaranteed under the full range(s) described by the Absolute Maximum specifications.
Exceeding any of the absolute maximum/minimum specifications may result in permanent
damage to the device and will void the warranty.
CAUTION: Although this device is designed to be as robust as
possible, Electrostatic Discharge (ESD) can damage
this device. This device must be protected at all times
from ESD. Static charges may easily produce poten-
tials of several kilovolts on the human body or
equipment, which can discharge without detection.
Industry-standard ESD precautions must be employed
at all times.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
February 7, 2005 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • 200096 Rev. B
DATA SHEET • DSM8100-000
2
Typical Performance Data
Attenuation (dB)
Time (ns)
Switching Time Data
5
10
15
20
0 0.3 1 3 10 30 100 300
V
R
= 40 V
Conventional
Beam Lead
Mesa Beam
Lead
Chip
Isolation (dB)
Frequency (GHz)
Typical Isolation and Insertion Loss Characteristics
45
0102030
40
35
30
25
20
15
10
5
0
5151825
0.75
0.60
0.45
0.30
0.15
Insertion Loss (dB)
(10 mA)
Capacitance (pF)
Reverse Voltage (V)
Typical Capacitance vs. Reverse Voltage
20
0102030
1 MHz
15
0.05
0.04
0.03
0.02
0.01
Above 1 GHz
0.06
RF Resistance ()
Forward Bias Current (mA)
Typical RF Resistance vs. Forward Bias Current
100
10
1
0.1
0.1 1 10 100
DATA SHEET • DSM8100-000
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200096 Rev. B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • February 7, 2005 3
0.009 (0.23 mm) Min.
0.0115 (0.29 mm) Max.
0.009 (0.23 mm) Min.
0.0115 (0.29 mm) Max.
0.032 (0.81 mm) Min.
0.035 (0.89 mm) Max.
0.0002 (0.005 mm) Min.
0.0007 (0.018 mm) Max.
0.0035 (0.09 mm) Min.
0.0070 (0.18 mm) Max.
0.014
(0.36 mm)
Max.
0.005
(0.13 mm)
Max.
0.011
(0.28 mm)
Max.
389-003
Typical SPDT Circuit Arrangement
Beam Lead Pin Duroid Substrate
50
Glass Bead
Connecting
Lead
50
Transmission LIne
Typical Beam Lead Mounting
DuroidMetal Conductor
Preferred Beam
Lead Orientation
Beam Lead Pin
0.005"
