DATA SHEET • CLA SERIES
2
Electrical Specifications at 25 °C
Capacitance, C
J
, measured at 1 MHz.
Resistance, R
S
, measured at 500 MHz.
CW thermal resistance for infinite heat sink.
Pulse thermal resistance for single 1 µs pulse.
Breakdown R
S
@T
L
@ Thermal Impedance (θ) Top Contact
Part Voltage Basewidth C
J
@ 0 V C
J
@ 6 V 10 mA 10 mA
Average 1 µs
Diam. Outline
Number (V) (µm) (pF) (pF) (
ΩΩ
) (ns) (°C/W) Pulse (°C/W) (mils/mm) Drawing
Min. – Max. Nominal Typ. Max. Max. Typ. Max. Typ. Typ.
CLA4601-000 15–30 1 0.12 0.1 2.5 5 120 15 1.2/0.03 150-806
CLA4602-000 15–30 1 0.2 0.15 2 5 80 10 1.5/0.038 150-806
CLA4603-000 20–45 1.5 0.2 0.15 2 5 100 10 1.5/0.038 149-801
CLA4604-000 30–60 2 0.12 0.1 2.5 7 100 10 1.5/0.038 150-806
CLA4605-000 30–60 2 0.2 0.15 2 7 70 7 2.5/0.064 150-801

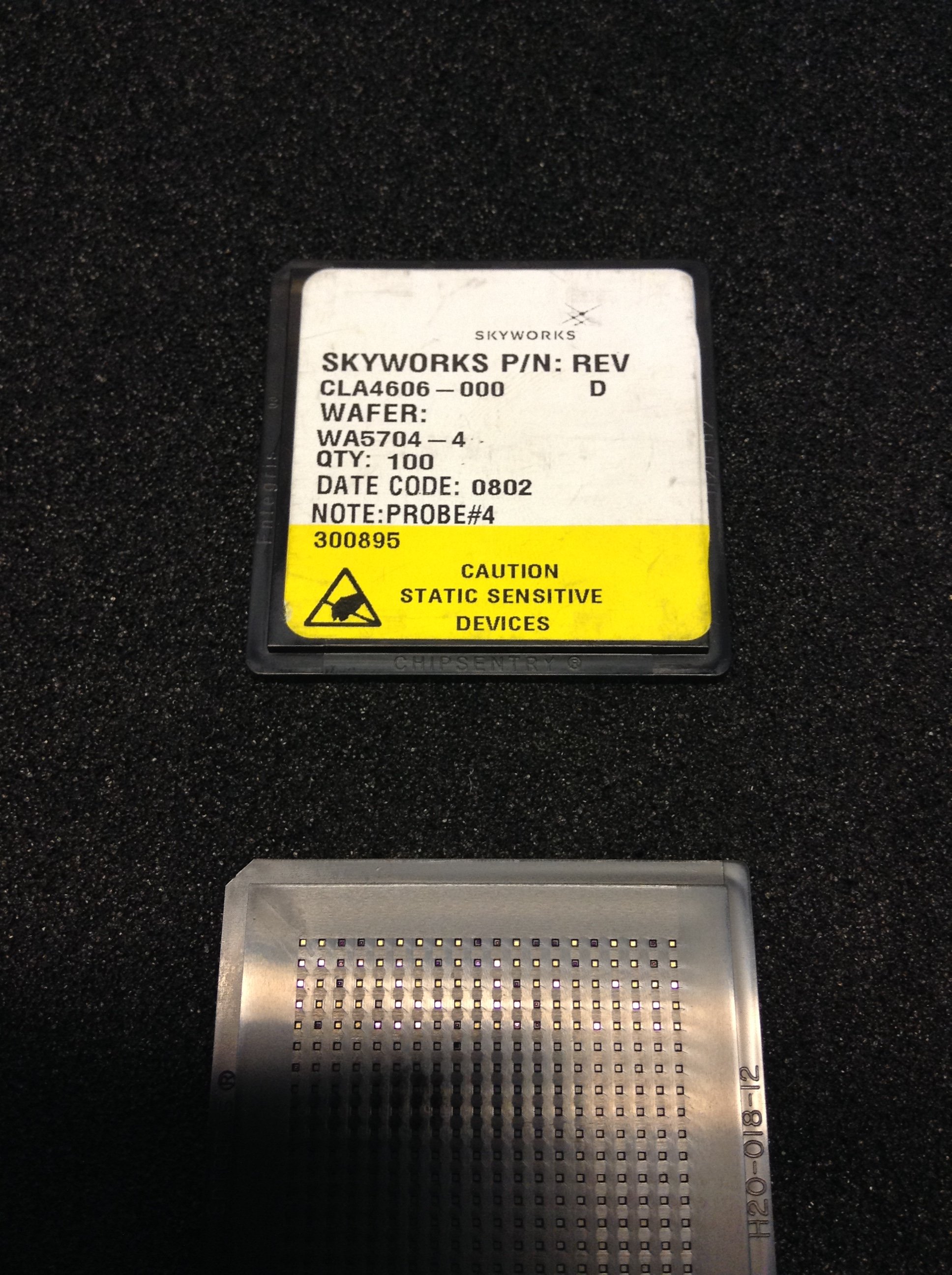

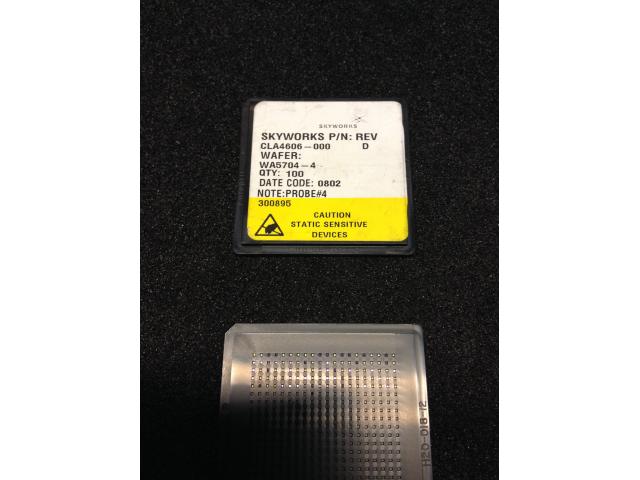

CLA4606-000 45–75 2.5 0.2 0.15 2 10 80 7 2.5/0.064 150-801
CLA4607-000 120–180 7 0.2 0.15 @ 50 V 2 50 40 1.2 3/0.076 149-801
CLA4608-000 120–180 7 0.8 0.5 @ 50 V 1.2 100 15 0.3 5/0.127 149-801
Characteristic Value
Power dissipation
Pdiss
= W
For CW signals θ = θave
For pulsed signals θ = DF x θave + θ pulse
(θp @1 µS x normalized
θp from figure 2)
Operating temperature -65 °C to +175 °C
Storage temperature -65 °C to +200 °C
Absolute Maximum Ratings
175-
Tamb
θ
Performance is guaranteed only under the conditions listed in the specifications table and is
not guaranteed under the full range(s) described by the Absolute Maximum specifications.
Exceeding any of the absolute maximum/minimum specifications may result in permanent
damage to the device and will void the warranty.
CAUTION: Although this device is designed to be as robust as
possible, ESD (Electrostatic Discharge) can damage
this device. This device must be protected at all times
from ESD. Static charges may easily produce poten-
tials of several kilovolts on the human body or
equipment, which can discharge without detection.
Industry-standard ESD precautions must be employed
at all times.
