Dimensions are shown in mm (inch)
Dimensions subject to change
22
DL2, DLM2,
DLD2
ZIF Connectors DL2

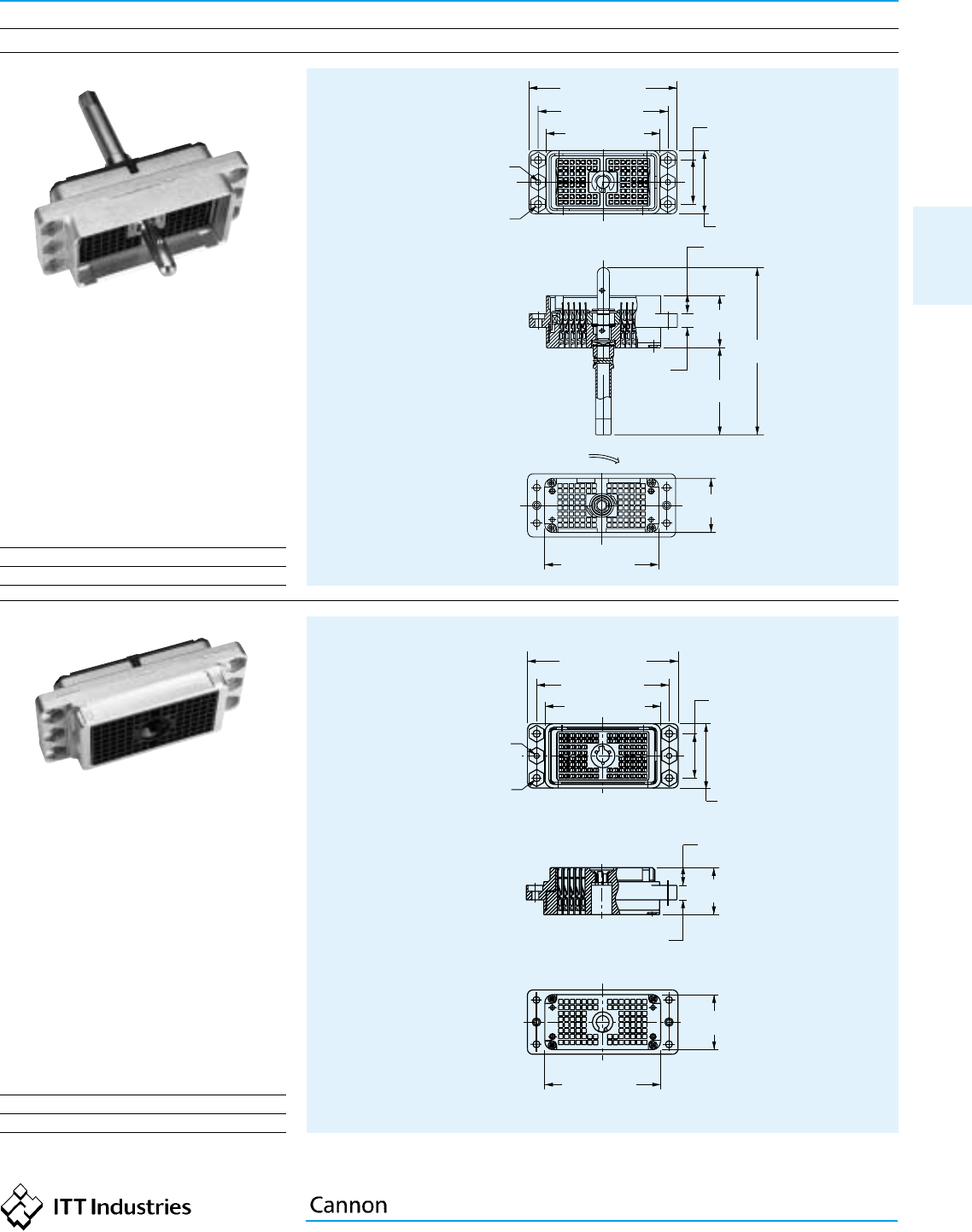

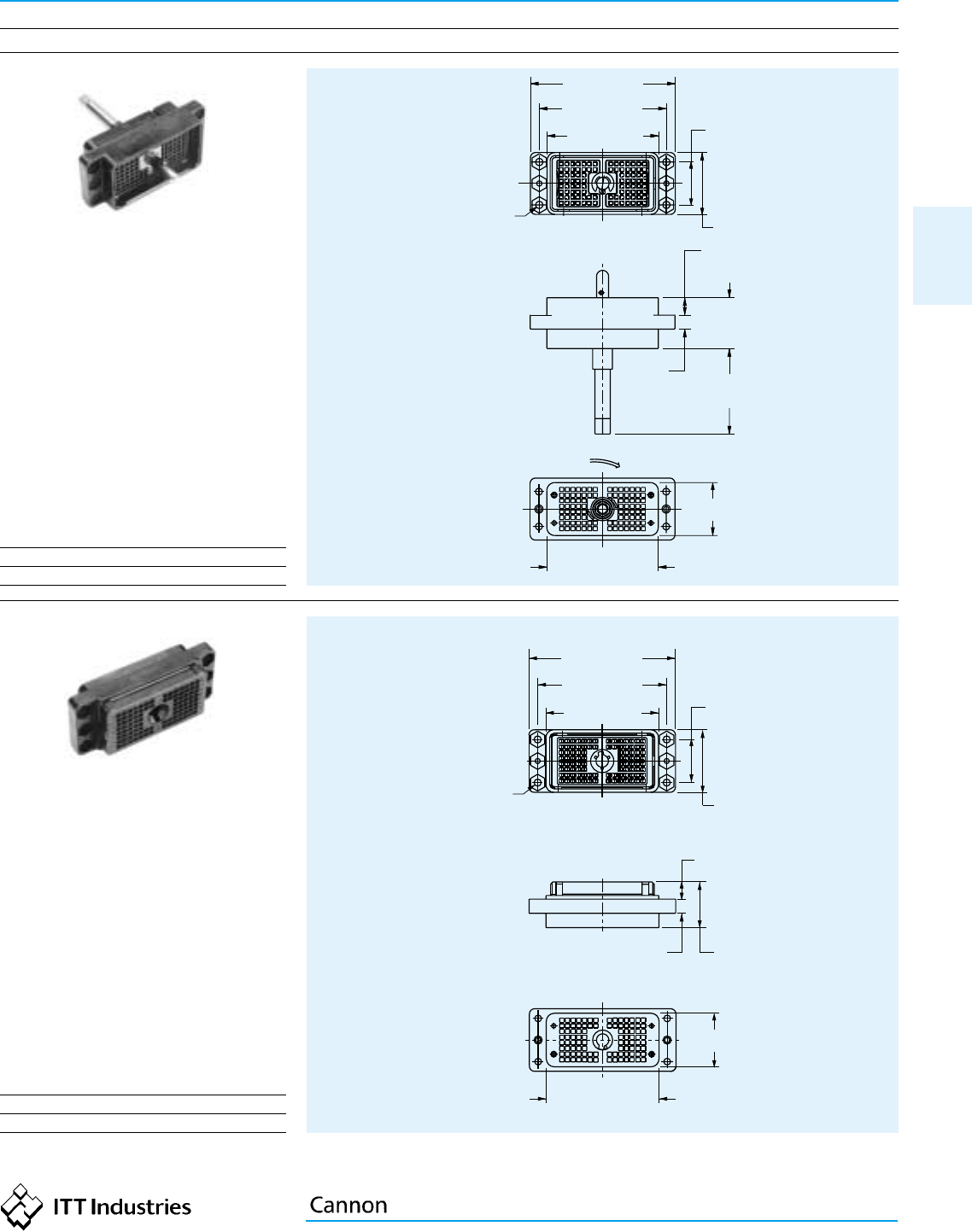

DL2 — Plastic Body — 96 Pin Connectors — Square Post Contacts
Plug
ɀ For contact cavity arrangement, see page 68.
ɀ For panel cutout and mounting hole pattern,
see page 65.
ɀ For PC hole pattern, see page 61.
ɀ Front Removable 0,64 (.025) Square Posts
2,54 (.100) Centers.
ɀ Order actuating handle kit separately, see
page 47.
Part Number Nomenclature A
110777-0008 DL2-96PW4 15,37 (.605)
110777-0022 DL2-96PW4A 15,37 (.605)
110777-0025 DL2-96PW6A 7,11 (.280)
Receptacle
ɀ For contact cavity arrangement, see page 68.
ɀ For panel cutout and mounting hole pattern,
see page 65.
ɀ For PC hole pattern, see page 61.
ɀ Front Removable 0,64 (.025) Square Posts
2,54 (.100) Centers.
Part Number Nomenclature A
110855-0008 DL2-96RW4 15,37 (.605)
110855-0013 DL2-96RW4B 15,37 (.605)
110855-0014 DL2-96RW6B 7,11 (.280)
19,38 (.763)
57,91 (2.280)
65,80 (2.592)
50,60 (1.994)
4X Ø 3,03 (.119)
28,12 (1.108)
7,92 (.312)
0,64 (.025)
A
6,35
(.250)
27,75
(1.093)
34,54
(1.360)
CAMSHAFT
TURNING DIRECTION
7 SPACES @ 2,54 (.100)
= 17,78 (.700)
6 SPACES @ 2,54 (.100)
= 15,24 (.600)
6 SPACES @ 2,54 (.100)
= 15,24 (.600)
50,60 (1.994)
24,05 (.947)
19,38 (.763)
57,91 (2.280)
65,80 (2.592)
50,60 (1.994)
4X Ø 3,03 (.119)
28,12 (1.108)
7,75 (.305)
0,64 (.025)
A
6,35 (.250)
24,97 (.983)
6 SPACES @ 2,54 (.100)
= 15,24 (.600)
6 SPACES @ 2,54 (.100)
= 15,24 (.600)
7 SPACES @ 2,54 (.100)
= 17,78 (.700)
24,05 (.947)
50,60 (1.994)
