030-2492-001

Part # 030-2492-001
Description CONN CONT PIN 1 POS CRMP ST 1TERM - Bulk
Category CONTACT
Availability Out of Stock
Qty 0
Qty Price
1 + $0.21000



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Dimensions are shown in mm (inch)
Dimensions subject to change
9
Introduction
ZIF Connectors DL/DLM/DLD
DL/DLM/DLD Applications
Medical
ɀ Ultrasound Diagnostic
ɀ Patient Monitoring
ɀ Hospital Equipment
Test & Instrumentation
ɀ Avionics
ɀ Automated Test Equipment
ɀ Computer & Peripheral Equipment
ɀ Semiconductor
Commercial/Industrial Manufacturing
ɀ Automation
ɀ Robotics
ɀ Electrical Controls
Entertainment
ɀ Recording Studio Equipment
ɀ Stage Lighting & Sound
ɀ Broadcasting Equipment
Telecommunication
ɀ Systems Interconnect
ɀ Manufacturing Test Equipment
ɀ Switching Systems
Transportation
ɀ Locomotive Systems
ɀ Automotive Electronics
ɀ Aircraft Simulators
DL/DLM/DLD Performance Specifications
Current Rating 5 A max. - Crimp/Square Post/PCB Contact
4 A max. - PC/RC Contact
10 A, 20 A, 30 A, 40 A, 50 A, 60 A max. - Buss Contact
Dielectric Withstanding Voltage 1200 VAC RMS - Crimp/Square Post Contact
1000 VAC RMS - PC/RC Contact
750 VAC RMS - DL4
Operating Temperature -55°C to 105°C (DL/DLM/DLD)
-55°C to 71°C (DL4)
Durability 10,000 Cycles min. (DL/DLM)
20,000 Cycles min. (DL4)
100,000 Cycles min. (DLD)
Contact Resistance 15 mȉ max. - Crimp/Square Post Contact
20 mȉ max. - Crimp #32 AWG - #30 AWG Contact
30 mȉ max. - PC/RC Contact
Insulation Resistance 5000 Mȉ min.
Wire Accommodation #42 AWG-#18 AWG
Contact Spacing 2,54 (.100) Square Grid
Contact Retention: 8 lbs (35,585 N) min.
DL/DLM/DLD Mechanical Data
Polarization Polarizing Posts
Contact Termination PC Tails, Straight
Crimp
Square Post
Wrap Post
Buss

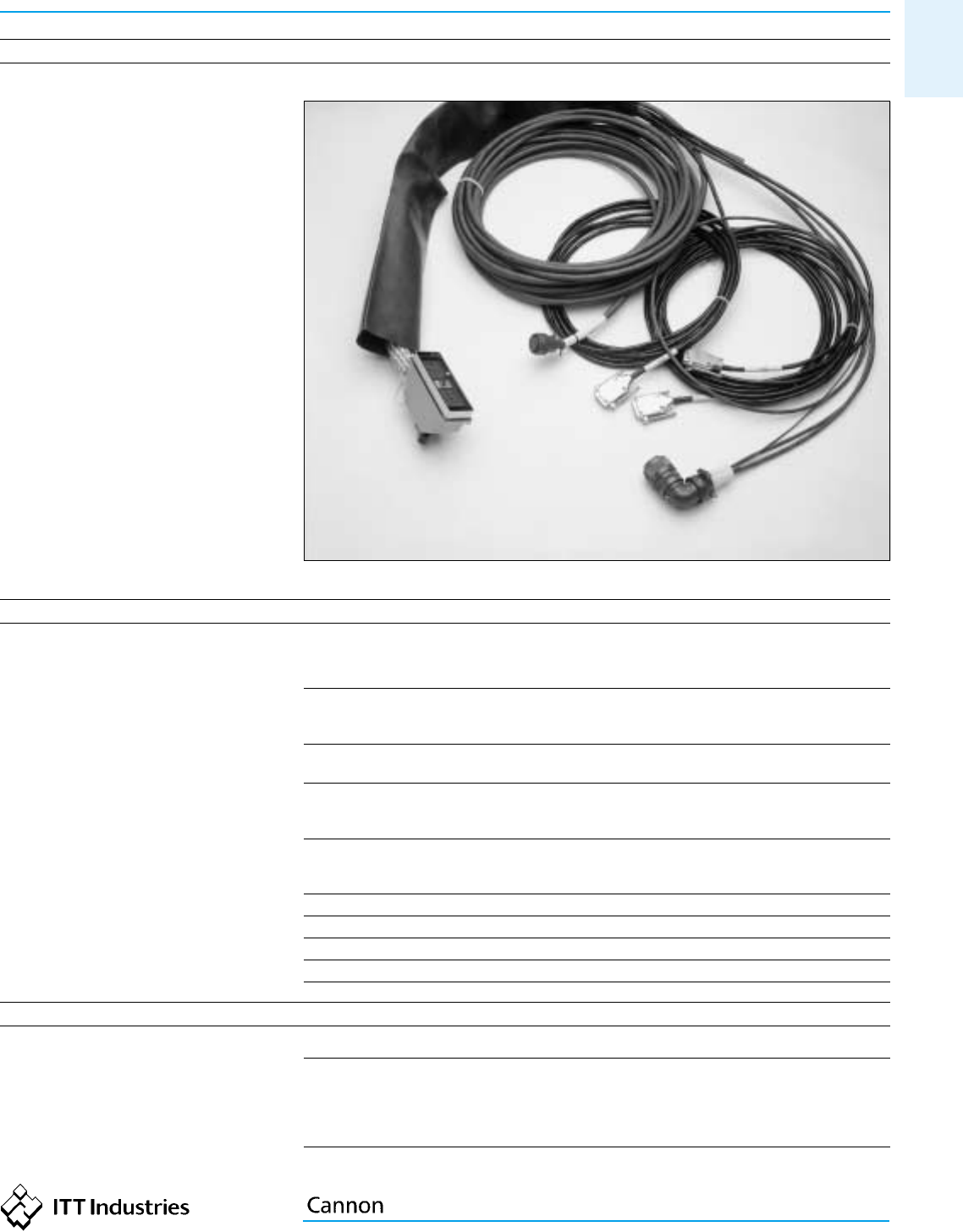

Signal and Power Distribution Cable Harness
For your complete cable harnessing resource, contact Cannon for details.
Dimensions are shown in mm (inch)
Dimensions subject to change
10
Introduction
DL4DL3/DLM3
DL2/DLM2/DLD2DL1/DLM1/DLD1
ZIF Connectors DL/DLM/DLD

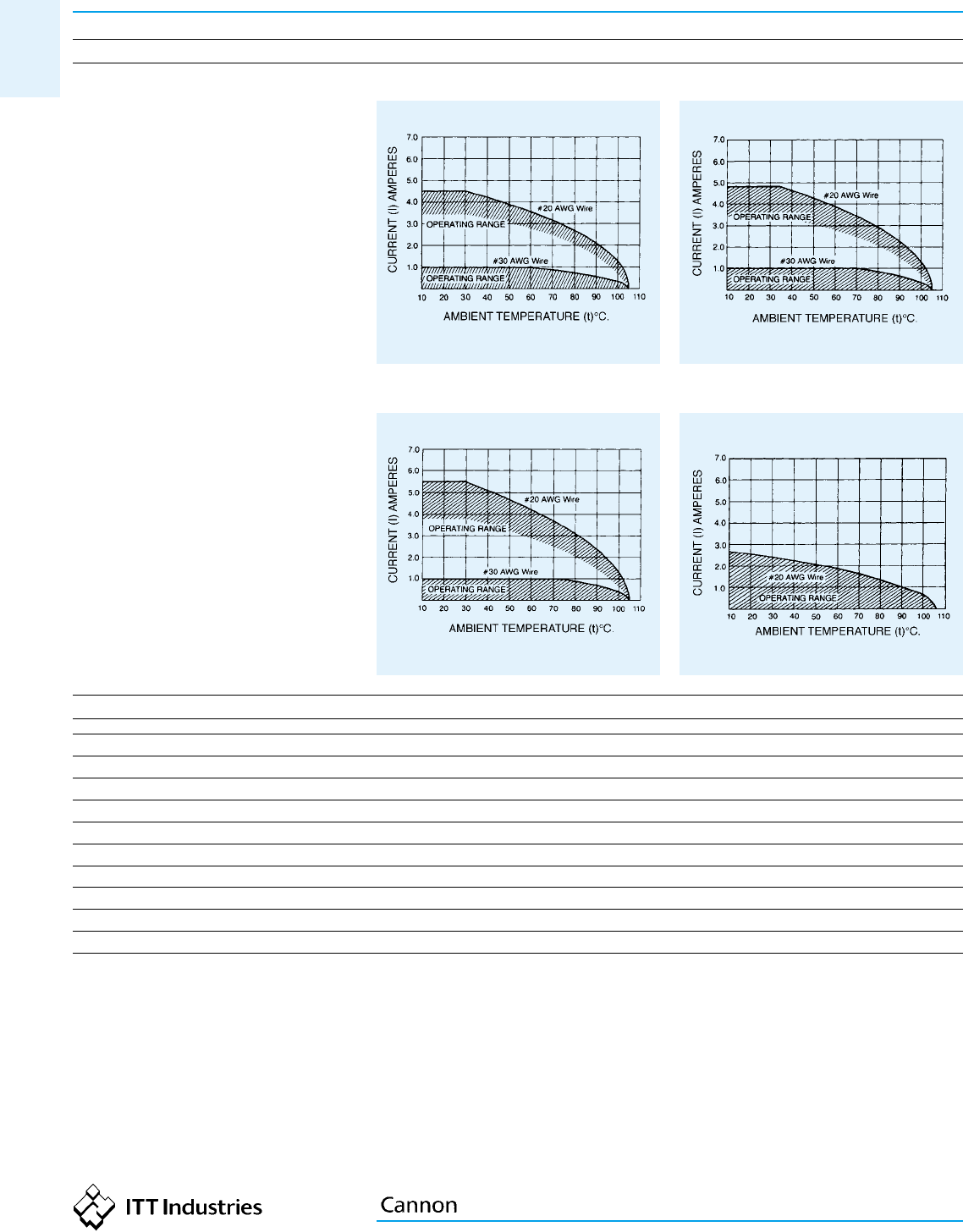

DL/DLM/DLD Temperature/Current Rating
The ambient temperature curves shown represent
the rated current carrying capacity of the Cannon
DL1/2/3/4, DLM1/2/3 and DLD1/2 electrical
connectors, derated to 80% of the values recorded
using the methods specified by International
Electro-Technical Commission Document 48
(1975).
Current was applied to the total connector (all
contacts) in one-half ampere increments and
maintained at each current level until thermal
stability was achieved. A thermocouple inserted
into the ‘‘hottest area’’ of each connector then
measured the connector temperature at the same
time that an ambient temperature reading was
taken. The difference between the two measured
values is the heat rise or self-heating created solely
by the current flow, and this temperature rise for
the current level was deducted from the insulator
material rated temperature. These values were
then derated to 80% to obtain the curves shown.
DL/DLM/DLD Test Data
Test Description MIL Standard Test Method
Dielectric Withstanding Voltage MIL-STD-202 301
Contact Resistance MIL-STD-202 307
Insulation Resistance MIL-STD-202 302, Condition B
Humidity (Standard) MIL-STD-202 103, Condition B
Humidity (DL4) MIL-STD-202 106
Salt Spray MIL-STD-202 101, Condition B (48 Hours)
Shock MIL-STD-202 213, Condition A (50 G’s)
Vibration (Standard) MIL-STD-202 204, Condition C
Vibration (DL4) MIL-STD 167-1/2 Modified
Dimensions are shown in mm (inch)
Dimensions subject to change
11
Introduction
ZIF Connectors DL/DLM/DLD
How to Identify the Ideal DL Product for Your Application
Q. What type of actuation does the application require?
Q. Does the application require
plastic housing?
Q. Does the application require
metal housing?
Q. Does this application involve
low currents?
Q. Does this application involve standard currents of more than
100 milliamps?
Q. Does this application involve
higher than 5 amps?
Q. What
type of contact is required for this application?
Q. Does the application require
crimp contacts?
Q. Does the application require crimp tooling, with low or high
volume?
Q. Is an actuating
handle needed?
Q. Does the application require
fool-proof mating?
Q. How do I protect the wiring / cabling?
Q. When the DL5-260 series application
requires EMI / RFI
shielding?
Q. Does the customer need to
protect the contacts when
connector is not mated?
A. Manual (turn handle cam) – DL / DLM series.
Blind mating (self cam) – DLD drawer series.
A. DL / DLD series.
A. DLM series (for EMI / RFI shielding).
DL4 series.
A. For 100 milliamps or less use 50µ inch gold contacts (Flat contacts
on Receptacle, and Bump contacts on Plug), see pages 52-53.
A. For more than 100 milliamps, use 20µ inch gold contacts
(Hermaphroditic Bump contact), see pages 52-53.
A. For higher than 5 amps use Buss contacts, see page 51.
A. Select the appropriate part number for the Plug and Receptacle
based on the number and type of contacts needed for this
application, see pages 12-13.
A. Order appropriate crimp contacts for the wire size used in this
application, see pages 50-53.
ɀ 50µ inch Gold (low current to 5 A applications) – Most
Versatile
ɀ 20µ inch Gold (standard application)
ɀ Buss contacts (high amps-greater than 5 A)
A. For low volume of crimps:
Order loose contacts and order the appropriate hand tool,
see page 55.
For high volume of crimps (50,000 per year or more):
Order reeled contacts, see page 53, and contact Cannon’s Customer-
Use-Tooling to lease an automatic crimp machine, see page 59.
A. Actuating handles are ordered separately (except DL4 Series),
see page 47.
A. Order the polarizing posts to protect from erroneous mating,
see page 48.
A. Two Options:
ɀ Plastic Junction Shell with optional second entry cable clamp
kit, see page 46.
ɀ Metal Backshell available, see pages 44-45.
A. Order the EMI / RFI metal shielding shells or utilize the new DLM5
series without shield shell, see page 49.
A. Order the appropriate protective cover, see page 47.
PREVIOUS12345678910NEXT
