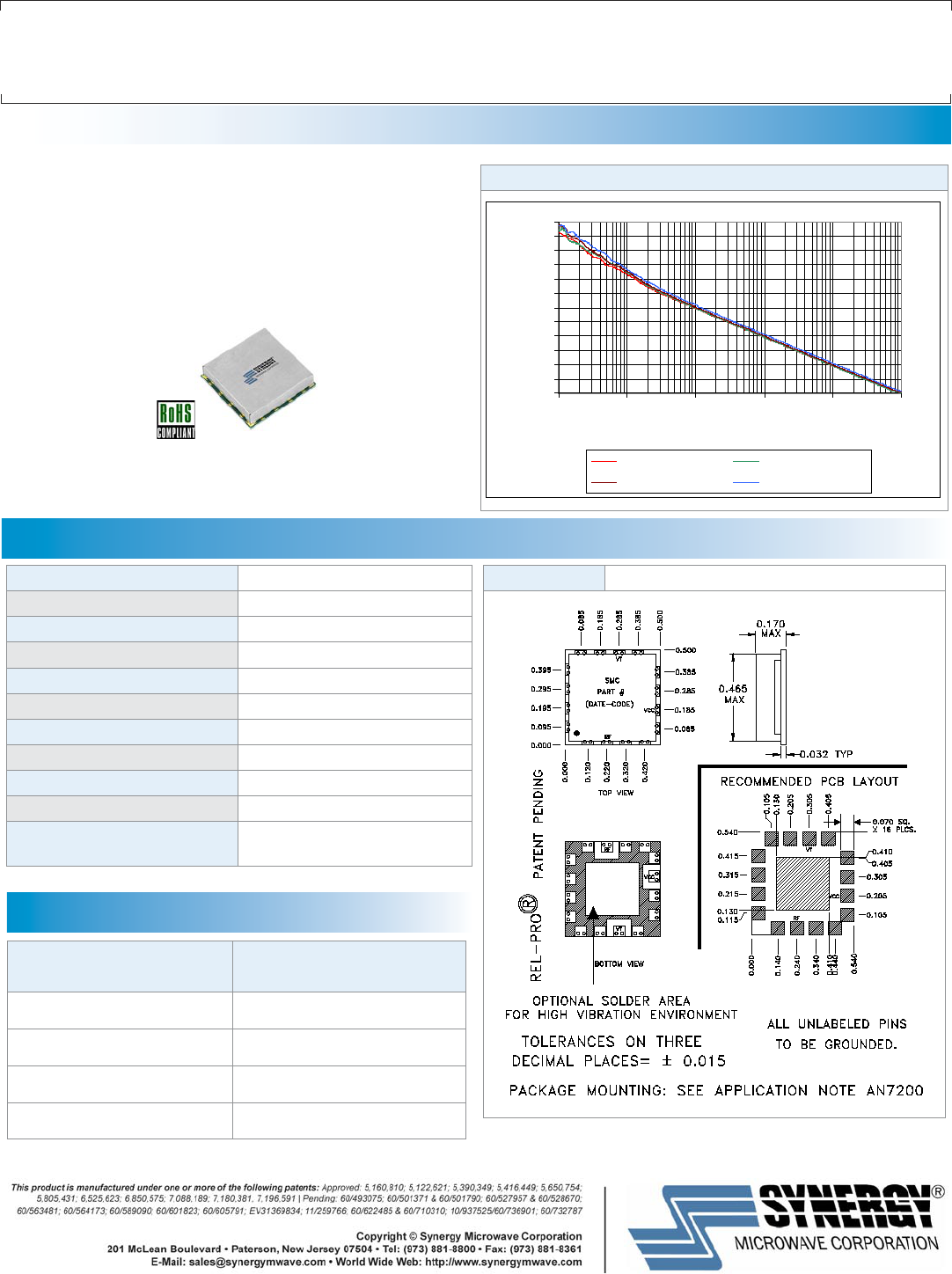

1140 - 1330 MHz
OPTIMIZED BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL: MFC114133-5
FEATURES:
Low Phase Noise Performance
Fast Tuning
Ideal for PLL Applications
Small Size, Surface Mount
Lead Free REL-PRO
®
Technology
Phase Noise
-165
-155
-145
-135
-125
-115
-105
-95
-85
-75
-65
-55
-45
100 1000 10000 100000 1000000 10000000
Offset Frequency (Hz)
Phase Noise (dBc/Hz)
1144.1MHz/1.49V 1184MHz/2.91V
1229.8MHz/4.5V 1367.6MHz/10V
SPECIFICATIONS (Rev B 07/03/07)
Frequency 1140 - 1330 MHz
Tuning Voltage (Full Band) 0.5 - 10 VDC
Bias Voltage +5 VDC @ 35 mA
(Max)
Output Power +3 dBm (Min)
Tuning Sensitivity 20 - 30 MHz/V (T
yp)
Output Impedance 50 Ohms (Nom)
Harmonic Suppression 20 dBc (Typ)
Frequency Pulling 3 MHz (Typ @ 1.75:1 VSWR)
Frequency Pushing 1 MHz/V (Typ)
Phase Noise @ 10 kHz -105 dBc/Hz (Typ)
Operating T
emperature
Range
-40 to +85 °C
Guaranteed Tuning Specifications
Tuning Voltage ( V ) Frequency ( MHz )
0.5 1140 (Max)
5 1220 (Min)
8 1280 (Min)
10 1330 (Min)
Package # 278LF
1140 - 1330 MHz
OPTIMIZED BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL: MFC114133-5

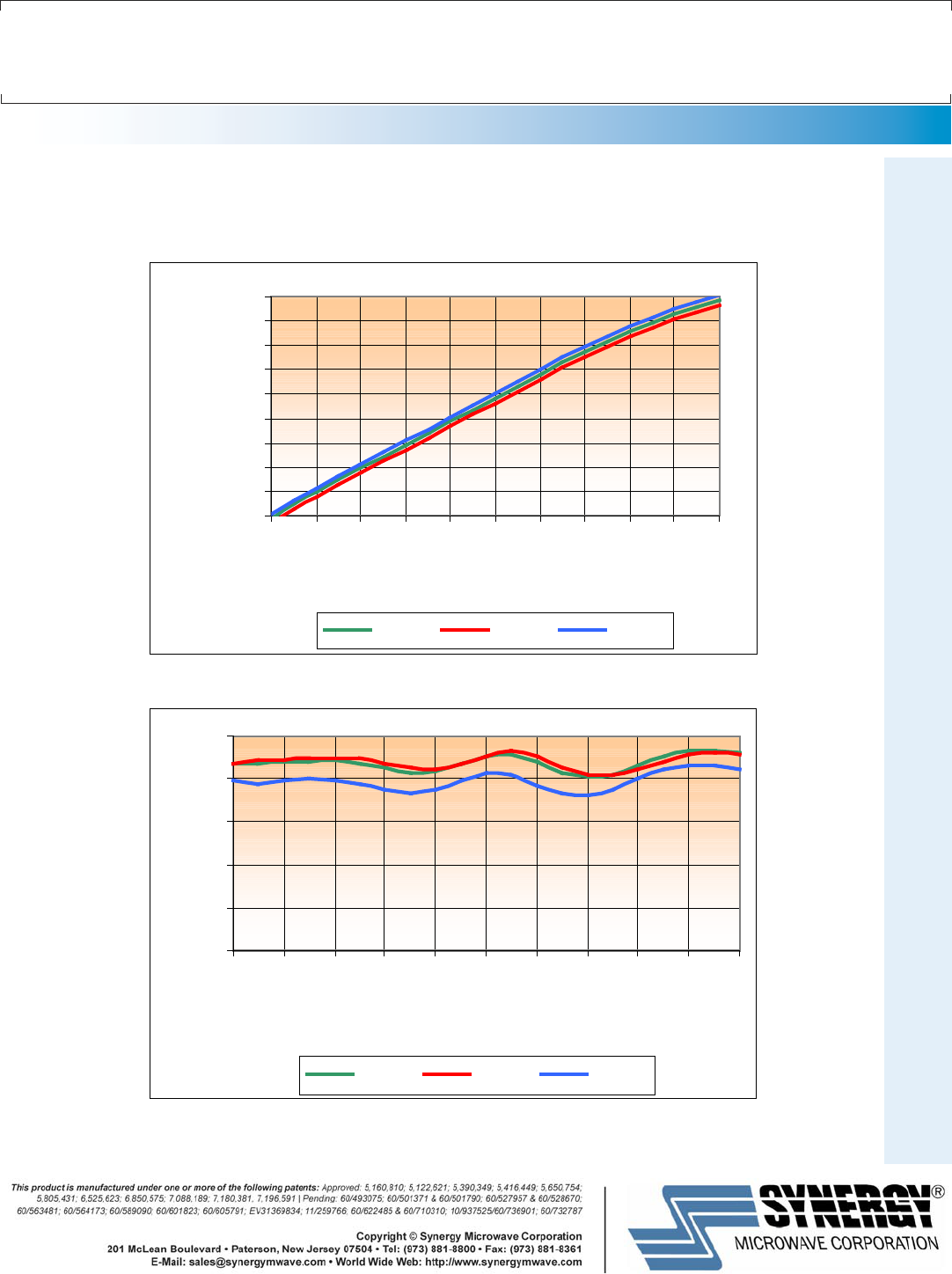

P E R F O R M A N C E P L O T S
0
1
2
3
4
5
0 1 2 3 4 5 6 7 8 9 10
Control Voltage (Vdc)
Output Power (dBm)
+25ºC +85ºC -40ºC
Control Voltage (Vdc)
Frequency (MHz)
+25ºC +85ºC -4C
1140 - 1330 MHz
OPTIMIZED BANDWIDTH
VOLTAGE CONTROLLED OSCILLATOR
SURFACE MOUNT MODEL: MFC114133-5

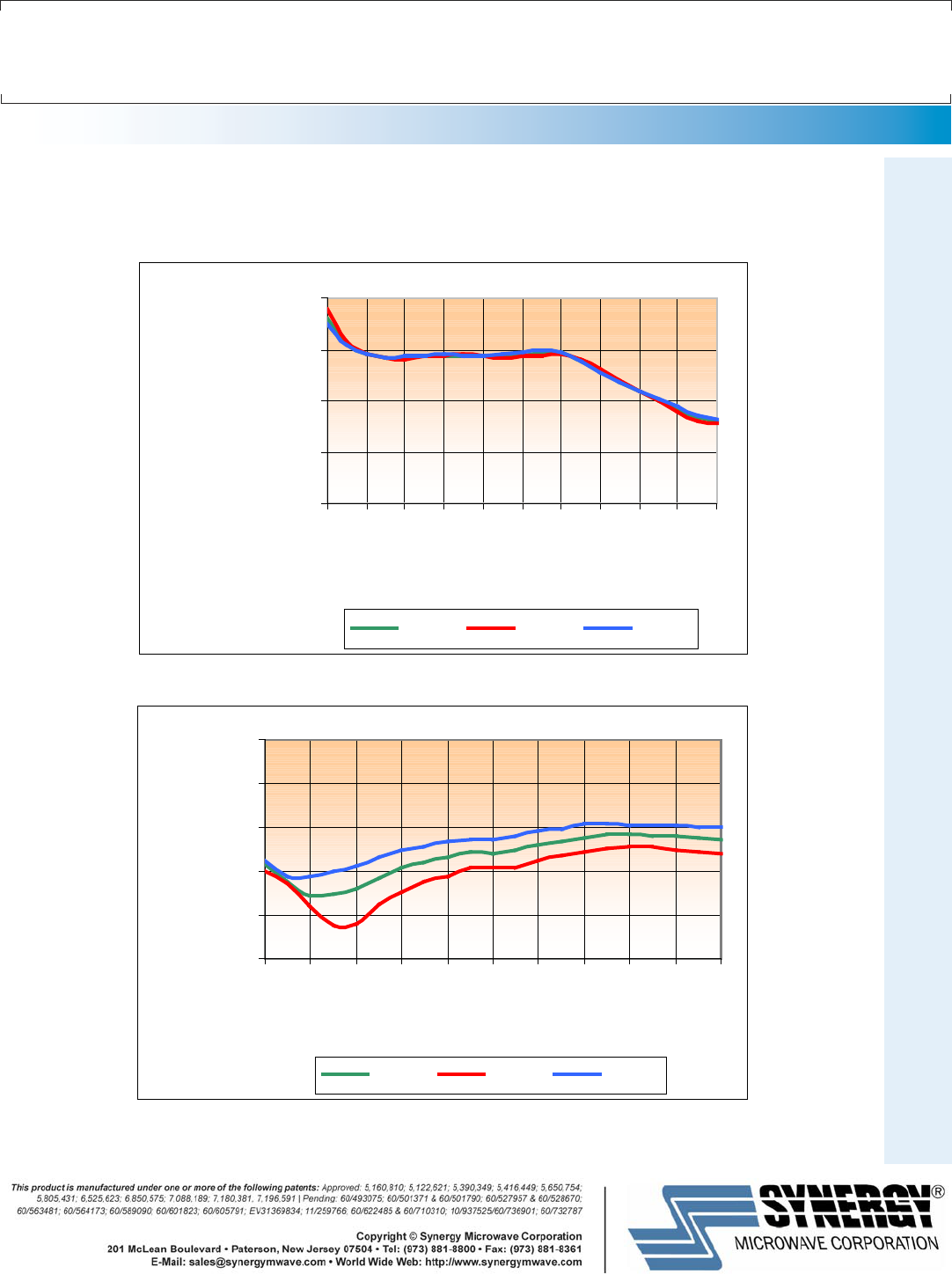

P E R F O R M A N C E P L O T S
0.00
10.00
20.00
30.00
40.00
0 1 2 3 4 5 6 7 8 9 10
Control Voltage (Vdc)
+25ºC +85ºC -4C
Tuning Sensitivity (MHz/V)
-50
-40
-30
-20
-10
0
0 1 2 3 4 5 6 7 8 9 10
Control Voltage (Vdc)
+25ºC +85ºC -4C
2nd Harmonic Suppression (dBc)
