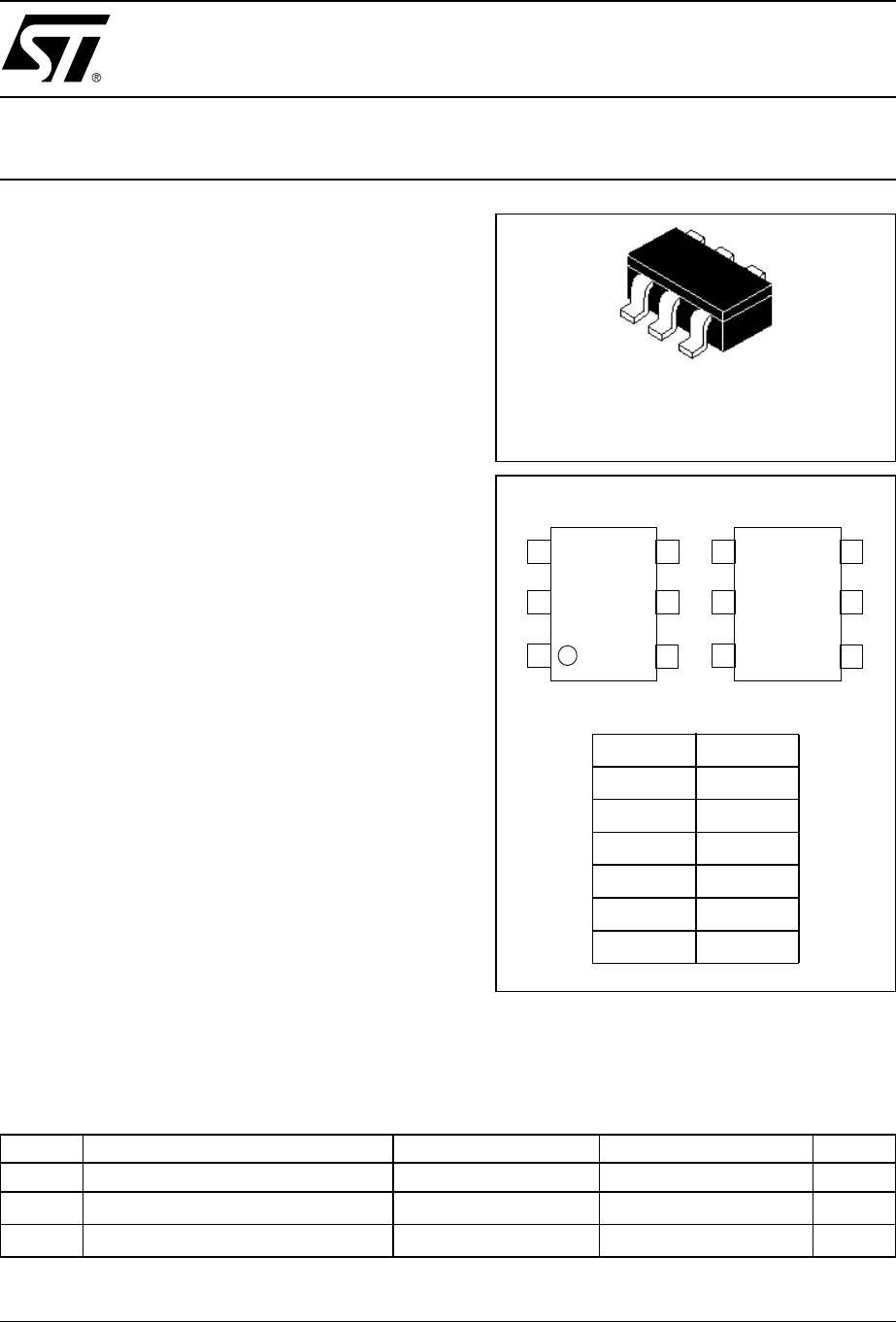

1/9February, 25 2002
STB7102
0.5/2.5 GHz UHF LO BUFFER AMPLIFIER
SOT323-6L (SC70)
ORDER CODE
STB7102TR
BRANDING
102
3
2
1
4
5
6
(Bottom View)
4
5
6
3
2
1
(Top View)
PIN CONNECTION
Pin No. Pin Name
1 INPUT
2GND
3GND
4 OUTPUT
5GND
6VCC
102
OPERATING FREQUENCY 500-2500MHz
LOW CURRENT CONSUMPTION
EXCELLENT ISOLATION
ULTRA MINIATURE SOT323-6L PACKAGE
APPLICATIONS
BUFFER AMPLIFIER FOR 0.5/2.5 GHz
APPLICATIONS
CDMA/PCS LO BUFFER AMPLIFIER
DESCRIPTION
The STB7102, designed for RF Mobile Phone
applications (0.5/2.5GHz), is an high isolation
Local Oscillator Buffer Amplifier. Manufactured in
the third generation of ST proprietary bipolar
process, it offers an excellent isolation and a good
linearity using only 4mA current consumption. The
STB7102 is housed in an ultra miniature package
SOT323-6L surface mount package.
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Conditions Value Unit
V
cc
Supply voltage 3.3 V
T
stg
Storage temperature -40 to +100
o
C
T
a
Operating ambient temperature -30 to +85
o
C
STB7102
2/9

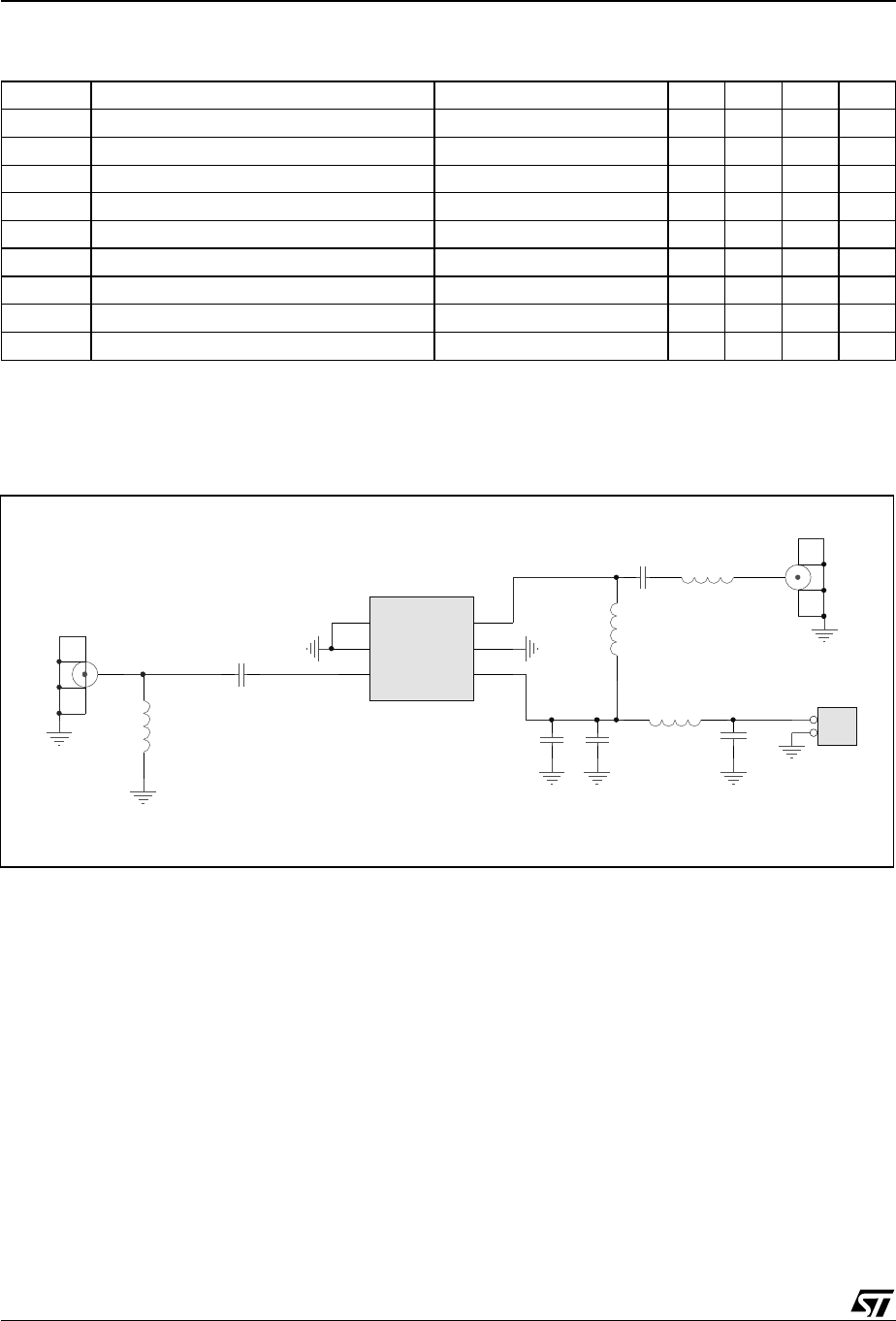

ELECTRICAL CHARACTERISTICS (
CELL BAND
)
(T
a
= +25
o
C, V
cc
= 2.7V, Z
s
= Z
L
= 50, tested in circuit shown in fig.1, unless otherwise specified)
Symbol Parameters Test Conditions Min Typ Max Unit
Freq. Frequency Range 990 1030 MHz
Vcc Supply Voltage 2.6 2.7 2.8 V
Icc Current Consumption 3.3 4.3 5.3 mA
P1dB Output Power at 1dB Compression Point F = 1010 MHz -2 dBm
Gp Power Gain F = 1010 MHz 16.7 dB
NF Noise Figure F = 1010 MHz 2.7 dB
Isol. Reverse Isolation F = 1010 MHz 45 dB
RLin Input Return Loss F = 1010 MHz 30 dB
RLout Output Return Loss F = 1010 MHz 17.8 dB
GND
3
GND
2
INPUT
1
VC C
6
GN D
5
OUT
4
ULOBA
U1
C5
10nF
C3
33pF
C8
1.5pF
L1
33nH
C2
1uF
1
2
JP1
VC C
C1
33pF
L2
2n2
J1
RF IN
L3
10nH
J2
RF OUT
L4
5n6
Figure 1 Cell Band Application Circuit Configuration
3/9
STB7102

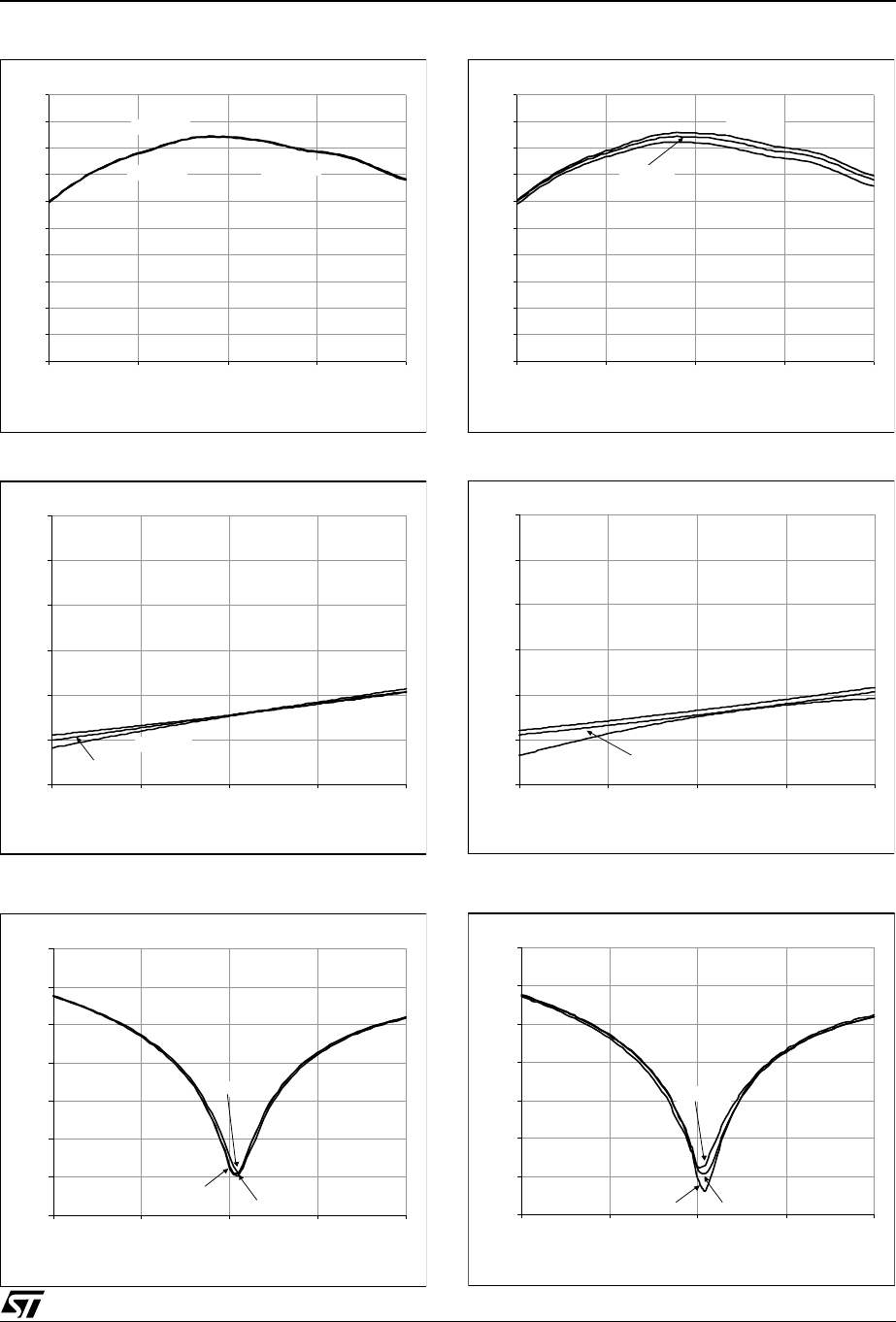

TYPICAL PERFORMANCE (CELL BAND)
Power Gain vs. Frequency and Voltage
0
2
4
6
8
10
12
14
16
18
20
800 900 1000 1100 1200
Frequency (MHz)
Power Gain (dB)
Vcc = 2.8 V
Vcc = 2.7 V
Vcc = 2.6 V
Ta = 25 °C
Power Gain vs. Frequency and Temperature
0
2
4
6
8
10
12
14
16
18
20
800 900 1000 1100 1200
Frequency (MHz)
Power Gain (dB)
Ta = 25 °C
Ta = -30 °C
Ta = 85 °C
Vcc = 2.7 V
Reverse Isolation vs. Frequency and Voltage
-60
-50
-40
-30
-20
-10
0
800 900 1000 1100 1200
Frequency (MHz)
Reverse Isolation (dB)
Vcc = 2.8 V
Vcc = 2.7 V
Vcc = 2.6 V
Ta = 25 °C
Input Return Loss vs. Frequency and Voltage
-35
-30
-25
-20
-15
-10
-5
0
800 900 1000 1100 1200
Frequency (MHz)
Input Return Loss (dB)
Vcc = 2.8 V
Vcc = 2.7 V
Vcc = 2.6 V
Ta = 25 °C
Reverse Isolation vs. Frequency and Temperature
-60
-50
-40
-30
-20
-10
0
800 900 1000 1100 1200
Frequency (MHz)
Reverse Isolation (dB)
Ta = 25 °C
Ta = -30 °C
Ta = 85 °C
Vcc = 2.7 V
Input Return Loss vs. Frequency and Temperature
-35
-30
-25
-20
-15
-10
-5
0
800 900 1000 1100 1200
Frequency (MHz)
Input Return Loss (dB)
Ta = 25 °CTa = -30 °C
Ta = 85 °C
Vcc = 2.7 V
