SPE-11-8-014/F/ZL Page 1 of 23
SPECIFICATION
Part No. :
TI.19.2113
Product Name :
2dBi 915MHz ISM Band Dipole Terminal
Antenna, SMA(M) Hinge
Feature :
High efficiency dipole terminal antenna
ROHS compliant
SPE-11-8-014/F/ZL Page 2 of 23
1. Introduction

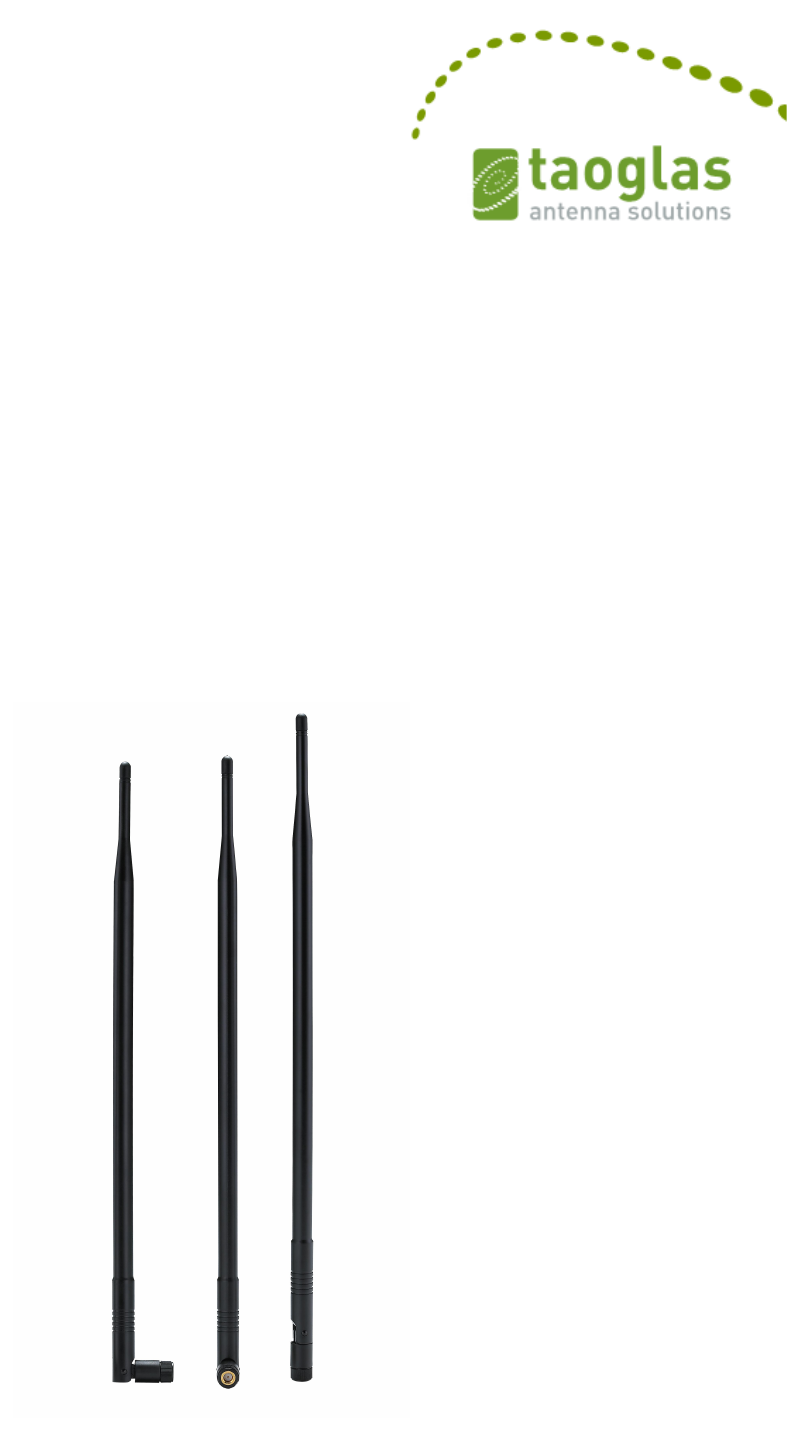

TI.19 is a high performance 915MHz ISM band dipole omni-directional antenna.
The hinged design enables the antenna to be positioned at its most suitable
angle. This antenna features a SMA(M) Plug Connector.
For a lot of antenna applications, such as Wi-Fi Hotspot or cellular Pico-cell, the
antenna of the operators device and the antenna of the users remote device
are not on the same horizontal level. The TI.19 has been designed with a
butterfly shape radiation pattern, to help counteract this effect.
2. Specification
ELECTRICAL
Frequency 902 ~ 928MHz
Peak Gain (bend) 2.5dBi
Peak Gain (straight) 2.4dBi
Average Gain (bend) -1.0dBi
Average Gain (straight) -0.9dBi
Efficiency (bend) 81%
Efficiency (straight) 82%
Impedance 50
VSWR < 1.9 : 1
Polarization Linear
Radiation Pattern Omni
Input Power 10 W
MECHANICAL
Antenna Length 389 ± 5 mm
Antenna Diameter 13 ± 0.5 mm
Casing TPU
Connector SMA Male
ENVIRONMENTAL
Temperature Range -40°C to 85°C
Humidity Non-condensing 65°C 95% RH
SPE-11-8-014/F/ZL Page 3 of 23

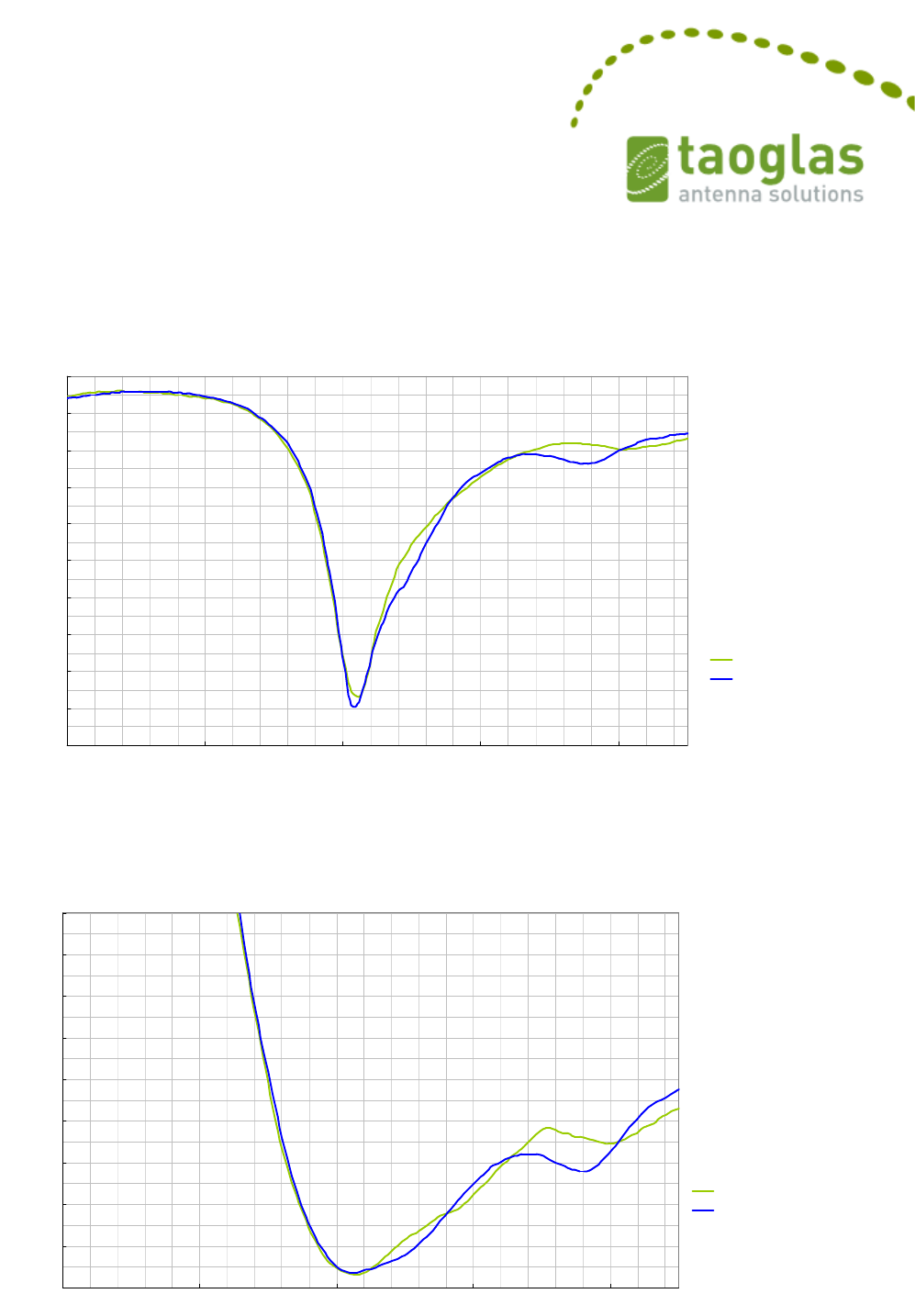

3. Antenna S11 Properties
3.1 Return Loss
-20
-18
-16
-14
-12
-10
-8
-6
-4
-2
0
700 800 900 1000 1100
(dBi)
bend
straight
3.2 VSWR
1
2
3
4
5
6
7
8
9
10
700 800 900 1000 1100
bend
straight
