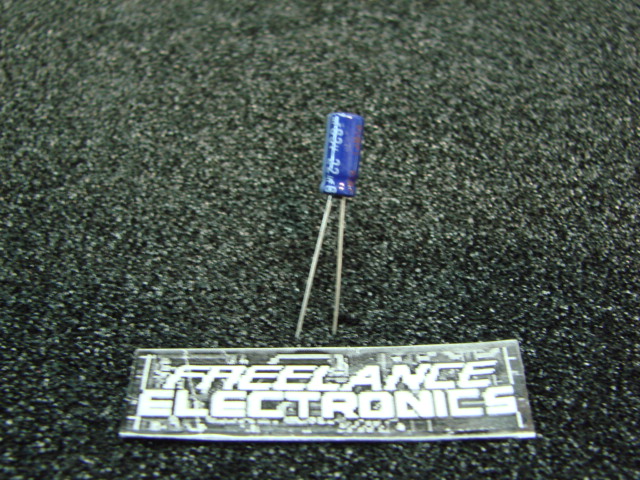

Aluminum Electrolytic Capacitors/ M
■ Standard Prod ucts
W.V.
Cap.
(±20 %)
Case size Specifi cation Lead Length
Part No.
Min. Packaging Q'ty
Dia. Length
Ripple
Current
(120 Hz)
(+85 °C
)
tan
δ
(120 Hz)
(+20 °C)
Lead
Dia.
Lead Space
Straight
Leads
Taping
Straight
Taping
✽
B
Taping
✽
i
(V) (µF) (mm) (mm)
(mA r.m.s.)
(mm) (mm) (mm) (mm) (pcs) (pcs)
6.3
220 5 11 240 0.28 0.5 2.0 5.0 2.5
ECA0JM221( )
200 2000
470 6.3 11.2 380 0.28 0.5 2.5 5.0 2.5
ECA0JM471( )
200 2000
1000 8 11.5 580 0.28 0.6 3.5 5.0
ECA0JM102( )
200 1000
2200 10 16 890 0.30 0.6 5.0 5.0
ECA0JM222( )
200 500
3300 10 20 1020 0.32 0.6 5.0 5.0
ECA0JM332( )
200 500
4700 12.5 20 1170 0.34 0.6 5.0 5.0
ECA0JM472( )
200 500
6800 12.5 25 1270 0.38 0.6 5.0 5.0
ECA0JM682( )
200 500
10000 16 25 1450 0.46 0.8 7.5 7.5
ECA0JM103( )
100 250
15000 16 31.5 1700 0.56 0.8 7.5
ECA0JM153
100
22000 18 35.5 1900 0.70 0.8 7.5
ECA0JM223
50
10
330 6.3 11.2 330 0.24 0.5 2.5 5.0 2.5
ECA1AM331( )
200 2000
1000 10 12.5 630 0.24 0.6 5.0 5.0
ECA1AM102( )
200 500
2200 10 20 920 0.26 0.6 5.0 5.0
ECA1AM222( )
200 500
3300 12.5 20 1090 0.28 0.6 5.0 5.0
ECA1AM332( )
200 500
4700 12.5 25 1200 0.30 0.6 5.0 5.0
ECA1AM472( )
200 500
6800 16 25 1400 0.34 0.8 7.5 7.5
ECA1AM682( )
100 250
10000 16 31.5 1600 0.42 0.8 7.5
ECA1AM103
100
15000 18 35.5 1850 0.52 0.8 7.5
ECA1AM153
50
16
10 5 11 30 0.20 0.5 2.0 5.0 2.5
ECA1CM100( )
200 2000
22 5 11 75 0.20 0.5 2.0 5.0 2.5
ECA1CM220( )
200 2000
33 5 11 110 0.20 0.5 2.0 5.0 2.5
ECA1CM330( )
200 2000
47 5 11 130 0.20 0.5 2.0 5.0 2.5
ECA1CM470( )
200 2000
100 5 11 180 0.20 0.5 2.0 5.0 2.5
ECA1CM101( )
200 2000
220 6.3 11.2 280 0.20 0.5 2.5 5.0 2.5
ECA1CM221( )
200 2000
470 8 11.5 440 0.20 0.6 3.5 5.0
ECA1CM471( )
200 1000
1000 10 16 680 0.20 0.6 5.0 5.0
ECA1CM102( )
200 500
2200 12.5 20 1000 0.22 0.6 5.0 5.0
ECA1CM222( )
200 500
3300 12.5 25 1200 0.24 0.6 5.0 5.0
ECA1CM332( )
200 500
4700 16 25 1360 0.26 0.8 7.5 7.5
ECA1CM472( )
100 250
6800 16 31.5 1600 0.30 0.8 7.5
ECA1CM682
100
10000 18 35.5 1800 0.38 0.8 7.5
ECA1CM103
50
25
100 6.3 11.2 180 0.160.5 2.5 5.0 2.5
ECA1EM101( )
200 2000
330 8 11.5 390 0.16 0.6 3.5 5.0
ECA1EM331( )
200 1000
470 10 12.5 480 0.16 0.6 5.0 5.0
ECA1EM471( )
200 500
1000 10 20 850 0.16 0.6 5.0 5.0
ECA1EM102( )
200 500
2200 12.5 25 1200 0.18 0.6 5.0 5.0
ECA1EM222( )
200 500
3300 16 25 1300 0.20 0.8 7.5 7.5
ECA1EM332( )
100 250
4700 16 31.5 1500 0.22 0.8 7.5
ECA1EM472
100
6800 18 35.5 1750 0.26 0.8 7.5
ECA1EM682
50
35
47 5 11 130 0.14 0.5 2.0 5.0 2.5
ECA1VM470( )
200 2000
100 6.3 11.2 210 0.140.5 2.5 5.0 2.5
ECA1VM101( )
200 2000
220 8 11.5 350 0.14 0.6 3.5 5.0
ECA1VM221( )
200 1000
Endurance : 85 °C 2000 h
When requesting taped product, please put the letter "B" or "i" between the "( )". Lead wire pitch B=5 mm, 7.5 mm, i=2.5 mm.
The taping dimensions are explained on p.178 of our Catalog. Please use it as a reference guide.
Jul. 2008
