JOHANSON DIELECTRICS 160R15X106KV4E

Cross Number:

Item Description: Cap Ceramic 10uF 16V X5R 10%SMD 0805 85C Plastic T/R

Qty Price
1 + $0.16890






Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

18
www.johansondielectrics.com
tanceram
®
cHIP caPacItors
TANCERAM
®
chip capacitors can replace tantalum capacitors
in many applications and offer several key advantages over
traditional tantalums. Because TANCERAM
®
capacitors exhibit
extremely low ESR, equivalent circuit performance can often be
achieved using considerably lower capacitance values. Low
DC leakage reduces current drain, extending the battery life of
portable products. TANCERAM
®
high DC breakdown voltage
ratings offer improved reliability and eliminate large voltage
de-rating common when designing with tantalums.
adVantageS
Low ESR Low DC Leakage
Higher Surge Voltage Non-polarized Devices
Reduced CHIP Size Improved Reliability
Higher Insulation Resistance Higher Ripple Current
applicationS
Switching Power Supply Smoothing (Input/Output) Backlighting Inverters
DC/DC Converter Smoothing (Input/Output) General Digital Circuits
How to order tanceram
®
Part number written: 100R15X106MV4E
100 R15 X 106 M V 4 E
VOLTAGE SIZE DIELECTRIC CAPACITANCE TOLERANCE TERMINATION MARKING PACKING
6R3 = 6.3 V
100 = 10 V
160 = 16 V
250 = 25 V
500 = 50 V
101 = 100 V
See Chart
W = X7R
X = X5R
1st two digits are
significant; third digit
denotes number of
zeros.
105 = 1.00 µF
476 = 47.0 µF
107 = 100 µF
K = ±10%
M = ±20%
V = Nickel Barrier
with 100% Tin
Plating (Matte)
T = SnPb*
(*available on
select parts)
4 = Unmarked
Code Type Reel
E Plastic 7”
T Paper 7”
Tape specifications
conform to EIA
RS481
19
www.johansondielectrics.com

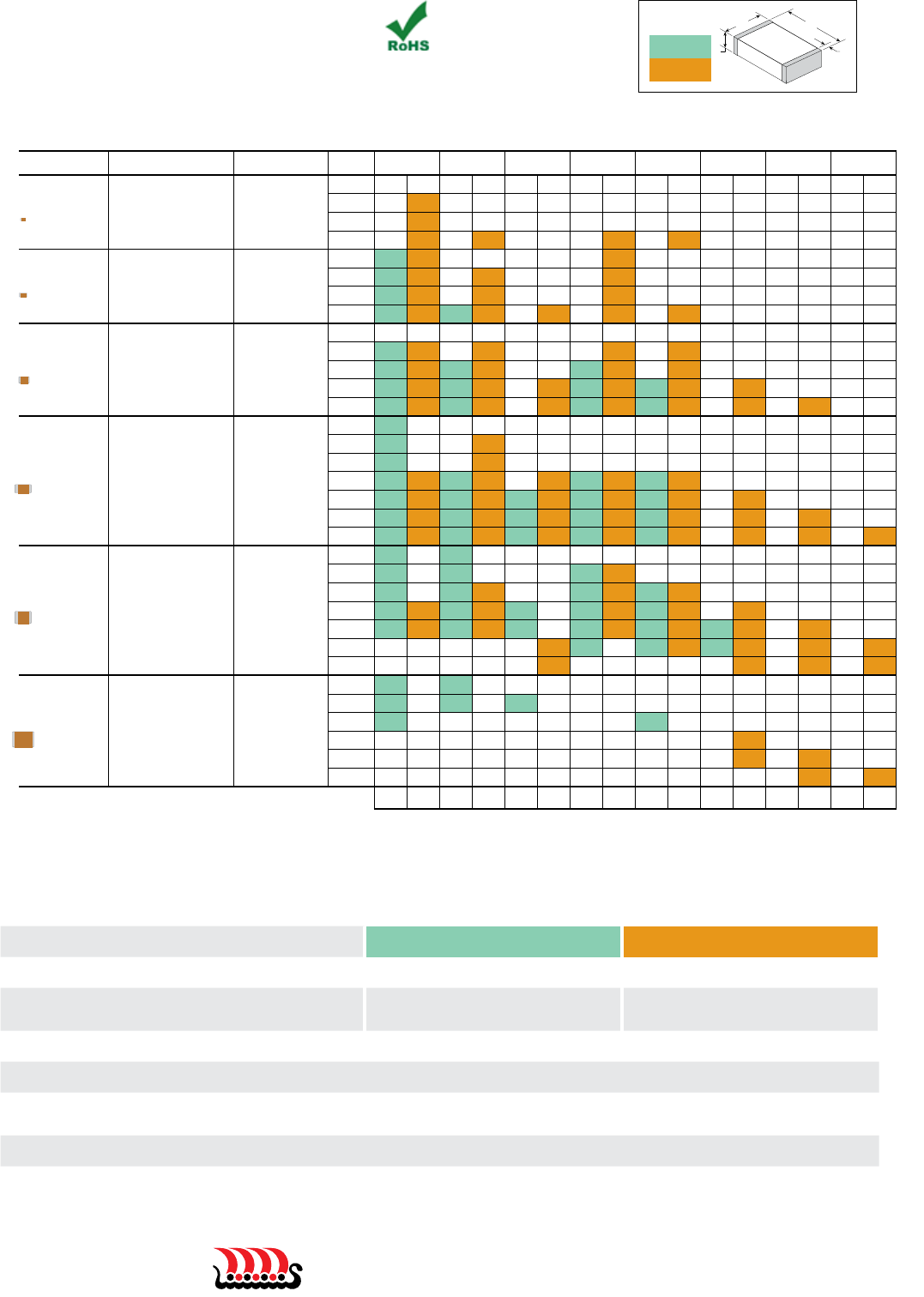

caSe Size capacitance Selection
EIA / JDI INCHES
(mm) VDC 1.0 µF 2.2 µF 3.3 µF 4.7 µF 10 µF 22 µF 47 µF 100 µF
0402
R07
L
W
T
EB
.040 ±.004
.020 ±.004
.025 Max.
.008 ±.004
(1.02 ±.10)
(0. 51 ±.10)
(0.64)
(0. 20±.10 )
16
10
6.3
0603
R14
L
W
T
EB
.063 ±.008
.032 ±.008
.035 Max.
.010±.005
(1.60 ±.20)
(0.81 ±.20)
(0.89)
(. 25±.13)
25
16
10
6.3
0805
R15
L
W
T
EB
.080 ±.010
.050 ±.010
.060 Max.
.020±.010
(2.03 ±.25)
(1.27 ±.25)
(1.52)
(0.51±.25 )
50
25
16
10
6.3
1206
R18
L
W
T
EB
.125 ±.013
.062 ±.010
.070 Max.
.020 +.015-0.01
(3.17 ±. 35)
(1.57 ±.25)
(1.78)
(0.51+.38-.25)
100
50
35
25
16
10
6.3
1210
S41
L
W
T
EB
.126 ±.016
.098 ±.012
.110 Ma x .
.020 +.015-.010
(3.20 ±.40)
(2.50 ±.30)
(2.8)
(0.51+.38-.25)
100
50
35
25
16
10
6.3
1812
S43
L
W
T
EB
.177 ±.016
.126 ±.015
.14 0 Ma x .
.035 ±.020
(4.50 ±.40)
(3.20 ±.38)
(3.55)
(0.89 ±0.51)
100
50
25
16
10
6.3
W X W X W X W X W X W X W X W X
electrical cHaracteriSticS
DIELECTRIC: X7R X5R
TEMPERATuRE COEFFICIENT:
±15% (-55 to +125°C) ±15% (-55 to +85°C)
DISSIPATION FACTOR:
For ≥ 50 VDC: 5% max.
For ≤ 35 VDC: 10% max.
For ≥ 50 VDC: 5% max.
For ≤ 35 VDC: 10% max.
INSuLATION RESISTANCE (MIN. @ 25°C, WVDC)
100 ΩF or 10 GΩ, whichever is less
DIELECTRIC STRENGTH:
2.5 X WVDC, 25°C, 50mA max.
TEST CONDITIONS:
Capacitance values ≤ 10 µF: 1.0kHz±50Hz @ 1.0±0.2 Vrms
Capacitance values > 10 µF: 120Hz±10Hz @ 0.5V±0.1 Vrms
OTHER:
See page 35 for additional dielectric specifications.
tanceram
®
cHIP caPacItors
L
W
T
E/B
DIELECTRIC
W (X7R)
X (X5R)
