FFR
+125° Non-inductive
Polyester Film/Foil
Epoxy Dipped Radial
Lead Capacitors
Operating Temperature Range
Capacitance Tolerance
-55°C to 125°
C
±10% at 1kHz, 25°C
Humidity Test
Load Life
Insulation Resistance
Voltage Range
WVDC
VAC
100
63
Dissipation Factor
.75% at 1 kHz, 25°C
Capacitance Insulation Resistance
0.1 µf 20,000 M
> 0.1 µf 2,000 M x µf
2,000 hours, +85°C with 125% rated DC voltage
Capacitance Change
Dissipation Factor
Change
Insulation Resistance
5% of initial measured value
<0.5% at 1kHz
50% of minimum specified value
1000 hours, 95% RH, 40°C and no applied voltage
Capacitance Change
Dissipation Factor
Change
Insulation Resistance
<5% of initial readings
@ +25°C, 1kHz
<0.5% at 1kHz
>50% of minimum specified value
Self-inductance
1 nH/mm along the capacitor pitch
Capacitance Drift Factor
Capacitance Temperature
Coefficient
(after 2 years) 2.0% up to 40°C
+400 ppm/°C, ± 200ppm/°C
Type
Dielectric
Electrodes
Leads
Film/Foil Non-inductive
Polyester film
Aluminum foils
Tinned copper wire
Coating
Flame retardant epoxy sealed resin
(UL 94V-O)
Noninductive construction
Capacitance range: 0.001 µf to .22 µf
Dielectric Strength
250% of rated voltage for 2 seconds applied between terminals
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
®
PART
NUMBER
L Max.
Capacitance
(µF)
FFR
+125°C Non-inductive
Polyester Film/Foil
Epoxy-Dipped Radial
Lead Capacitors
STANDARD PART LISTING
H Max. T Max.
S
Lead
Spacing
d
Lead
Wire
Diameter
dv/dt
(v/µ sec.)
.001 100
102FFR100K
7000 10.5 9.5 5.5 7.0 0.6
.0015 100
152FFR100K
7000 10.5 9.5 5.5 7.0 0.6
.0022 100
222FFR100K
7000 10.5 9.5 5.5 7.0 0.6
.0033 100
332FFR100K
7000 10.5 9.5 5.5 7.0 0.6
.0047 100
472FFR100K
7000 10.5 9.5 5.5 7.0 0.6
.0056 100
562FFR100K
7000 10.5 9.5 5.5 7.0 0.6
.0068 100
682FFR100K
7000 10.5 9.5 5.5 7.0 0.6
.0082 100
822FFR100K
7000 10.5 9.5 5.5 7.0 0.6
.01 100
103FFR100K
7000 10.5 9.5 6.0 7.0 0.6
.015 100
153FFR100K
7000 10.5 9.5 6.0 7.0 0.6
.022 100
223FFR100K
7000 10.5 9.5 6.0 7.0 0.6
.033 100
333FFR100K
3800 13.5 10.0 6.0 10.0 0.6
.047 100
473FFR100K
3800 13.5 10.5 7.5 10.0 0.6
.056 100
563FFR100K
3800 13.5 11.0 7.0 10.0 0.6
.068 100
683FFR100K
3800 13.5 12.5 7.0 10.0 0.6
.082 100
823FFR100K
3800 13.0 13.0 8.0 10.0 0.6
.1 100
104FFR100K
3800 14.0 13.0 8.0 10.0 0.6
.15 100
154FFR100K
1900 19.0 13.5 7.5 15.0 0.8
.22 100
224FFR100K
1900 20.0 15.0 8.5 15.0 0.8
WVDC
NOTE: WVDC IS RATED DC WORKING VOLTAGE AT +85°C.

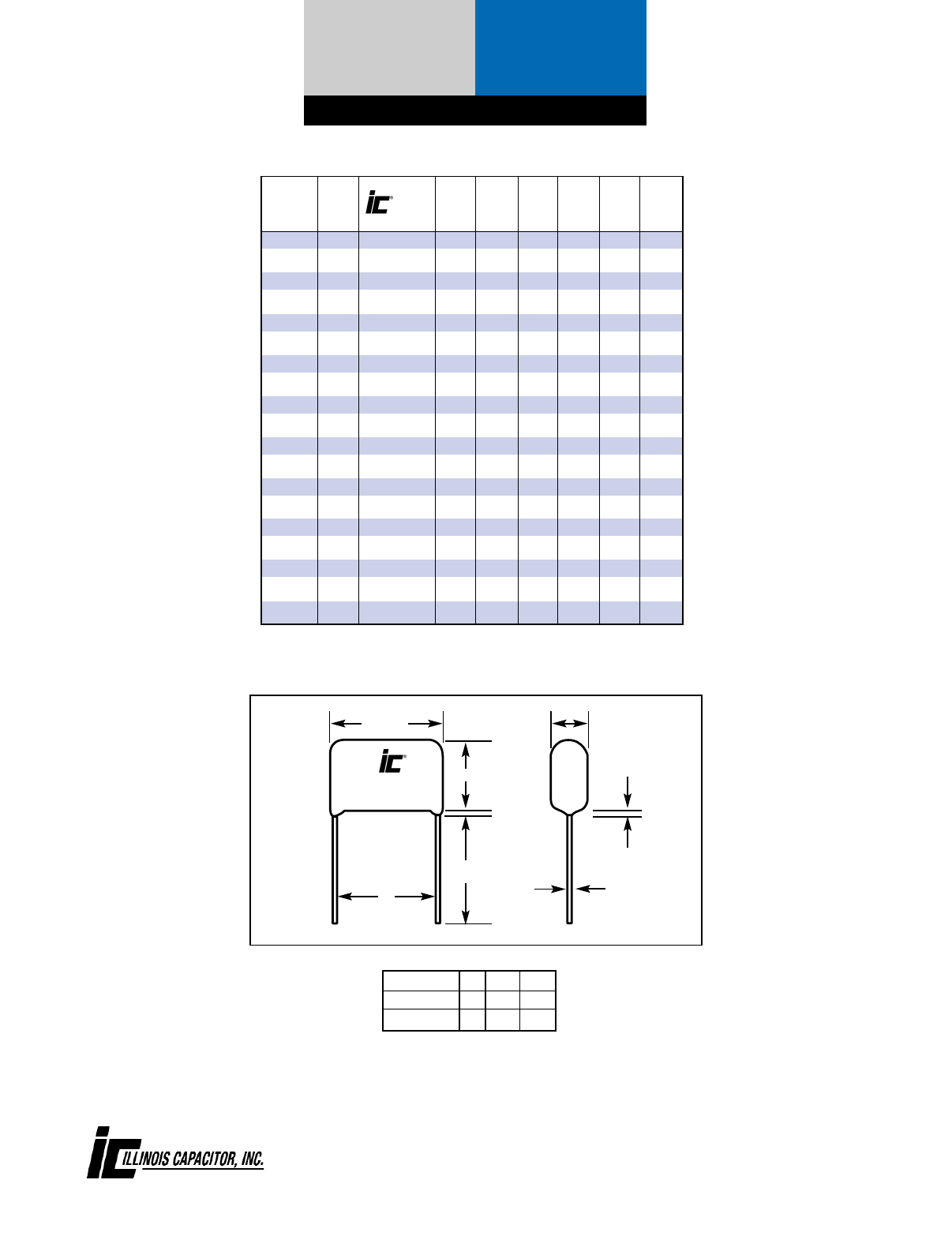

T
max
d
L max
S
H max
15
min.
3.0 max
Lead Space S <15.0 15.0
Tolerance S ±1.5 ±1.5
Wire Dia. d 0.6 0.8
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
®
FFR

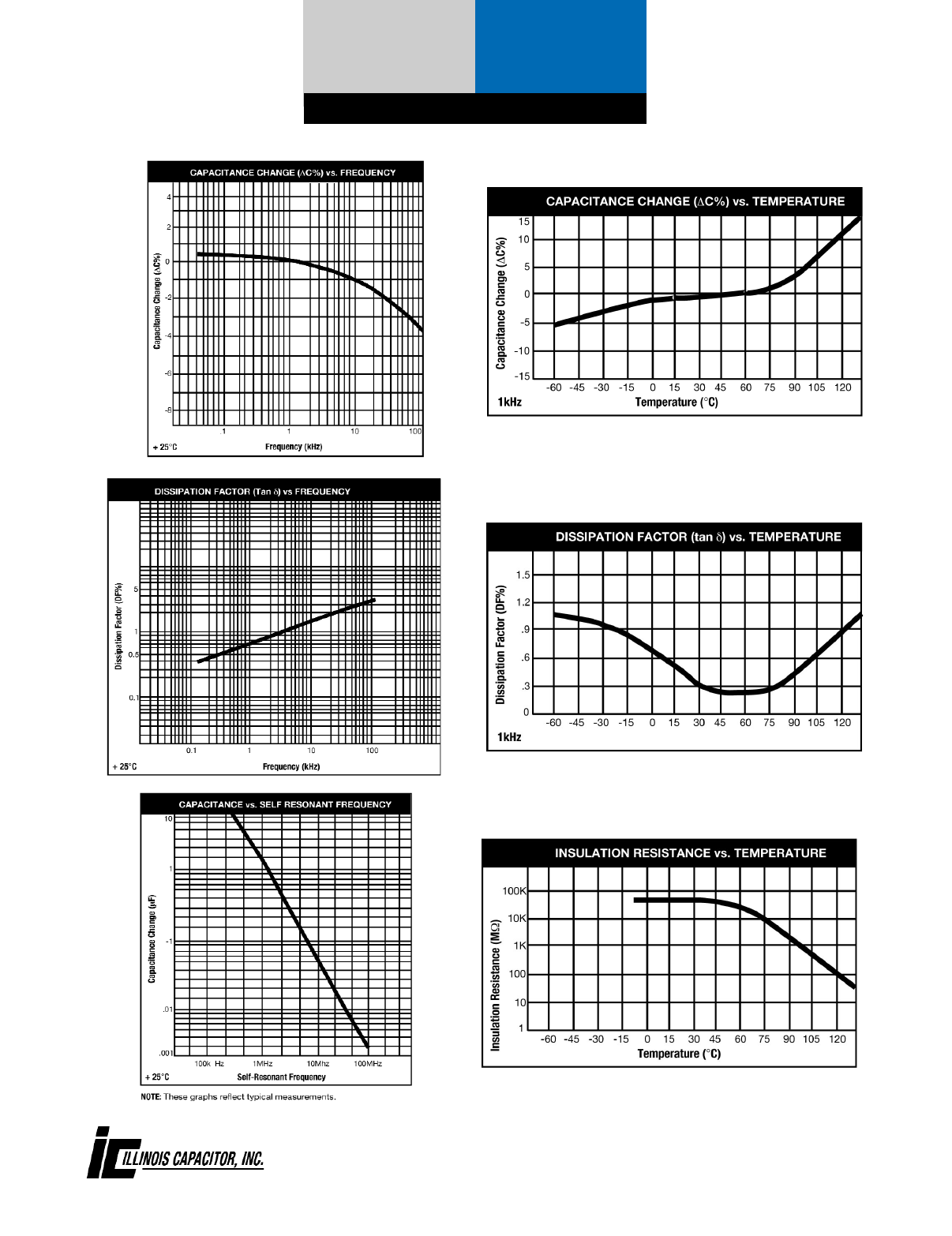

ENVIROMENTAL/ENDURANCE DATA
+125°C Non-inductive
Polyester Film/Foil
Epoxy-Dipped Radial
Lead Capacitors
