1 2 3 4 5
A
B
C
D
SIZE
A4
REV DATE FILE BY
A 08-JUN-15 PDF AK
B
C
D
E
F
G
APPROVAL: GMo
UNIT: MM
SCALE:
SHEET: 1/3
WERI PART NO: 687 1xx 182 122
DRAW: AK
PROJECTION: GENERAL TOLERANCE
.X =
+
/
-
0.2
.XX =
+
/
-
0.15
RoHS Compliant

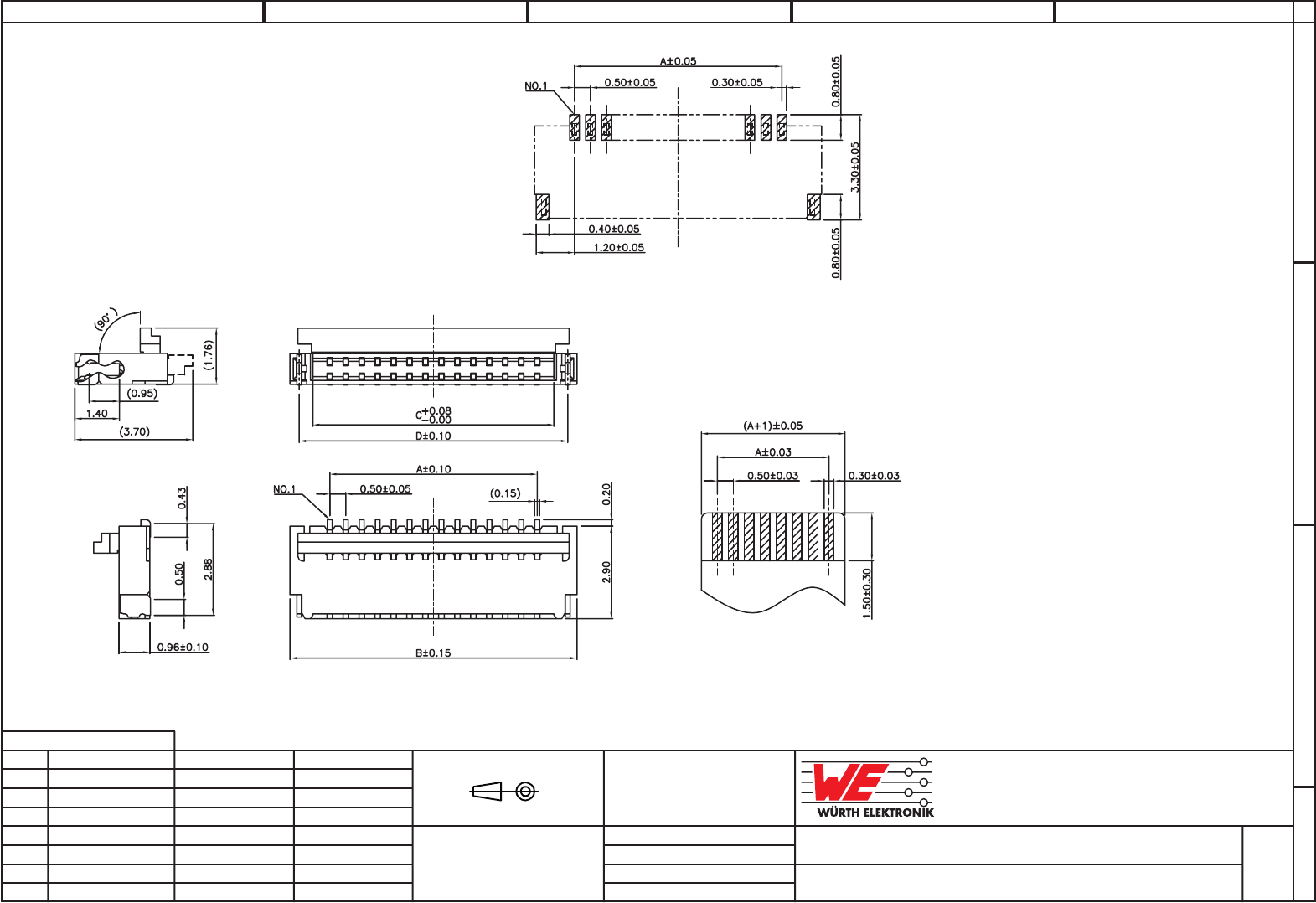

RECOMMENDED PCB LAYOUT
TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: LCP
FLAMABILITY RATING: UL94-V0
COLOUR: IVORY
CONTACT MATERIAL: PHOSPHOR BRONZE
CONTACT PLATING: 80 µ’’ MAT TIN OVER 50 µ’’ NICKEL
CONTACT TYPE: STAMPED
TAB MATERIAL: BRASS
TAB PLATING: 80 µ’’ MAT TIN OVER 50 µ’’ NICKEL
TAB TYPE: STAMPED
ACTUATOR MATERIAL: PA9T
ACTUATOR COLOUR: BLACK
QUALITY CLASS: 20 MATING CYCLES
PITCH: 0.50 MM
ENVIRONMENTAL
OPERATING TEMPERATURE: -40°C UP TO +105°C
COMPLIANCE: ROHS AND HALOGEN FREE
ELECTRICAL
CURRENT RATING: 0.5A
WORKING VOLTAGE: 50 VAC
WITHSTANDING VOLTAGE: 0.25 KVAC/min
CONTATC RESISTANCE: 30 mOHM
INSULATION RESISTANCE: >500 MΩ
SOLDERING
JEDEC LEAD FREE REFLOW SOLDERING

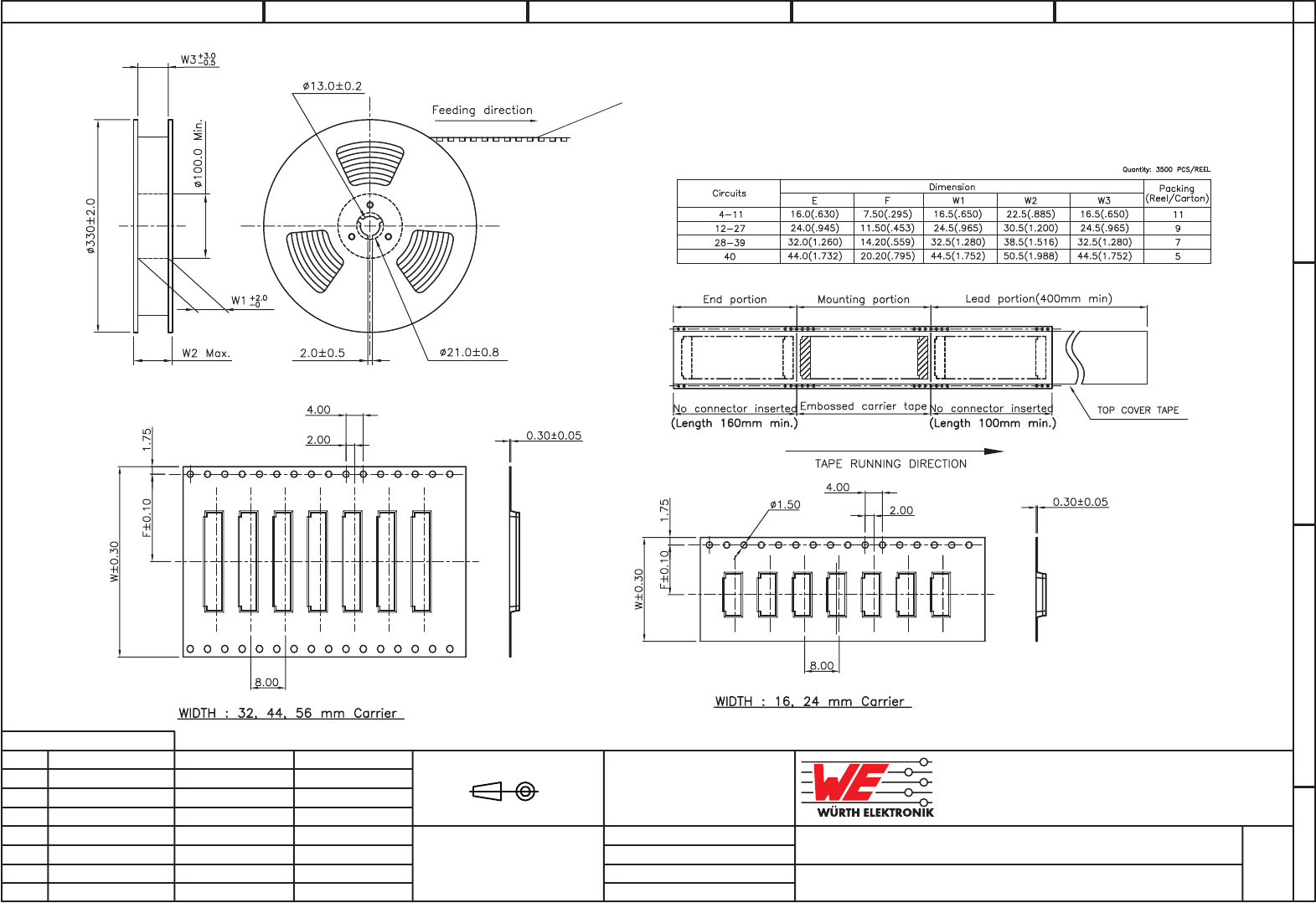

PACKAGING
TAPE AND REEL
AVAILABLE POLARITIES
DIMENSION:
A = 0.50 x (NB PINS -1)
B = (0.50 x NB PINS) +2
C = A + 1.05
D = C + 0.92
06, 08, 10, 12, 14, 16, 17, 18, 20, 22, 24, 26, 28
(THICKNESS = 0.31 ± 0.03 MM)
APPLICABLE FFC/FPC DIM.
DESCRIPTION: CONFPCI - 0.5 MM PITCH HORIZONTAL DUAL CONTACT,
BACK FLIP ACTUATOR
1 2 3 4 5
A
B
C
D
SIZE
A4
REV DATE FILE BY
A
B
C
D
E
F
G
APPROVAL: GMo
UNIT: MM DESCRIPTION: CONFPCI - 0.5 MM PITCH HORIZONTAL DUAL CONTACT,
BACK FLIP ACTUATOR
SCALE:
SHEET: 2/3 WERI PART NO: 687 1xx 182 122
DRAW: AK
PROJECTION: GENERAL TOLERANCE
.X =
+
/
-
0.2
.XX =
+
/
-
0.15
RoHS Compliant
1 2 3 4 5
A
B
C
D
SIZE
A4
REV DATE FILE BY
A 10-SEP-14 PDF QL
B
C
D
E
F
G
APPROVAL: JC
UNIT: MM DESCRIPTION: DISCLAIMER
SCALE:
SHEET: 3/3 WERI PART NO: DISCLAIMER
DRAW: QL
PROJECTION: GENERAL TOLERANCE
.X =
+
/
-
0.2
.XX =
+
/
-
0.15
RoHS Compliant
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
