4735

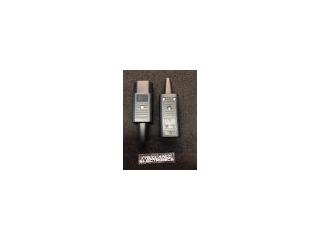

Part # 4735
Description 4735 APPLIANCE INLET FOR CABLE 10A 70° - Bulk (Alt: 4735.0
Category BACKSHELL
Availability In Stock
Qty 17
Qty Price
1 - 3 $11.38306
4 - 7 $9.05471
8 - 10 $8.53729
11 - 14 $7.93365
15 + $7.07129
Manufacturer Available Qty
SCHURTER
  • Shipping Freelance Stock: 17
    Ships Immediately

Related Items

4735
SCHURTER
BACKSHELL
4735
$11.38306
00-7038-041-00-110
MDT
BACKSHELL
00-7038-041-00-110

036-047-0028
SAE
BACKSHELL
036-047-0028
$42.21757
051214-0000
ITT CANNON
BACKSHELL
051214-0000
$29.13398
057-0364-024
ITT CANNON
BACKSHELL
057-0364-024
$28.23572
057-0686-002
ITT CANNON
BACKSHELL
057-0686-002
$102.43259


Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

1
Cord Connectors (rewireable)
4735
www.schurter.com/pg07b
Connectors
IEC Plug E, Cord Connector (Rewireable), Straight, max. Cable Diameter 10 mm
4732/4735
E
70° C
Description
- Cord Connectors (rewireable):
- Screw-on mounting
- Appliance Inlet, Pin temperature 70 °C, Protection class I
- Cable
- Substitute for type
Approvals
- VDE License Number: 40011482
- UL License Number: E96454
- CSA License Number: 201904
References
General Product Information
Weblinks
Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store,
Distributor-Stock-Check, Accessories
Technical Data
Ratings IEC 10 A / 250 VAC; 50 Hz
Ratings UL/CSA 15 A / 250 VAC; 60 Hz
Dielectric Strength > 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
Allowable Operation Temp. -25 °C to 70 °C
Protection Class Suitable for appliances with protection
class 1 acc. to IEC 61140
Terminal Cable
Material: Housing Thermoplastic, black, UL 94V-0
Plug E acc. to IEC/EN 60320-2-2,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 1
Dimensions
28.7 mm
4735
28.7
21.6 85.5
60.0
Variants
Color Max. cable diameter Max. wire size Order Number
black 10.0 mm 3 x 2.1 mm² / 3 x 14 AWG 4735.0000
Max. torque for screws: Terminal: 0.5 Nm, Cable clamp: 0.3 Nm, Cover: 0.3 Nm
Cord retaining clamp see accessories
Packaging unit
100 Pcs
2
Cord Connectors (rewireable)
4735
www.schurter.com/pg07b
Connectors
Accessories
Description
Cord retaining kits
Cord retaining strain relief
Countersunk, F 4700.0006
Flat head, G 4700.0007
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal 4787
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal 4788
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal 6600-3
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal 6600-4
Appliance Outlet further types to 4735
Appliance Outlet shuttered Overview complete
IEC Appliance Outlet F Shuttered, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal 4721
IEC Appliance Outlet F Shuttered, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal 4723
Appliance Outlet shuttered further types to 4735
Connector Overview complete
IEC Connector C15, Rewireable, Straight 0101
IEC Connector C15A, Rewireable, Straight 0102
IEC Connector C15A, Rewireable, Straight 0102-G
IEC Connector C15A, Rewireable, Angled 0112
IEC Connector C13, Rewireable, Angled 4012
Connector further types to 4735 ...
Distribution Unit Overview complete
Distribution Unit for Snap-in Mounting with 1 IEC Appliance Inlet C14 and 1 Appliance Outlet F 0712
Strip Block for Snap-in Mounting with up to 7 IEC Appliance Outlets F 0909
Distribution Unit with 1 IEC Appliance Inlet C14 or Power Cord, 4 IEC Appliance Outlets F and Extra Components 4740
Distribution Unit with 1 IEC Appliance Inlet C14 and 2 Appliance Outlets F, Shuttered 4741
Distribution Unit with 1 IEC Appliance Inlet C14 and 4 Appliance Outlets F 4747
Distribution Unit further types to 4735 ...
Power Cord Overview complete
Power Cord with IEC Connector C13, Angled 0311
Power Cord with IEC Connector C13, Angled 3011
Power Cord with IEC Connector C13, Angled 3012
Power Cord with IEC Connector C13, Angled 3013
Power Cord with IEC Connector C13 3020
Power Cord further types to 4735 ...
3
Cord Connectors (rewireable)
4735
www.schurter.com/pg07b
Connectors
Category / Description
Power Entry Module Overview complete
IEC Appliance Outlet F with Fuseholder 1-pole 4719
IEC Appliance Inlet C14 with modular extended Components Felcom 64
IEC Appliance Inlet C14 with Appliance Outlet F KP (Outlet)
IEC Appliance Inlet C14 with Appliance Outlet F, Line Switch 2-pole and Voltage Selector PMM
Power Entry Module further types to 4735
Power Entry Module with line filter Overview complete
IEC Appliance Inlet C14 Modular Assembling Options Felcom 54
Power Entry Module with line filter further types to 4735
Power Supply or Interconnection Cord Overview complete
Divers Power Supply and Interconnection Cords 10 A Kabelverbindung/10 A
Power Supply or Interconnection Cord further types to 4735
The specifications, descriptions and illustrations indicated in this document are based on
current information. All content is subject to modifications and amendments.
