NTC thermistors for
temperature measurement
SMD NTC thermistors,
case size 0603 (1608), automotive series
Series/Type: B573**V5
Date: January 2016
© EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
1) Depends on mounting situation
Applications
Temperature measurement and compensation
Features
Qualification based on AEC-Q200 Rev-D
Multilayer SMD NTC with inner electrodes
Nickel barrier termination
For temperature measurement up to 150 °C
Excellent long-term aging stability in high
temperature and high humidity environment
UL approval (E69802)
Options
Alternative resistance ratings, resistance
tolerances and B value tolerances available on
request.
Delivery mode
Cardboard tape, 180-mm reel

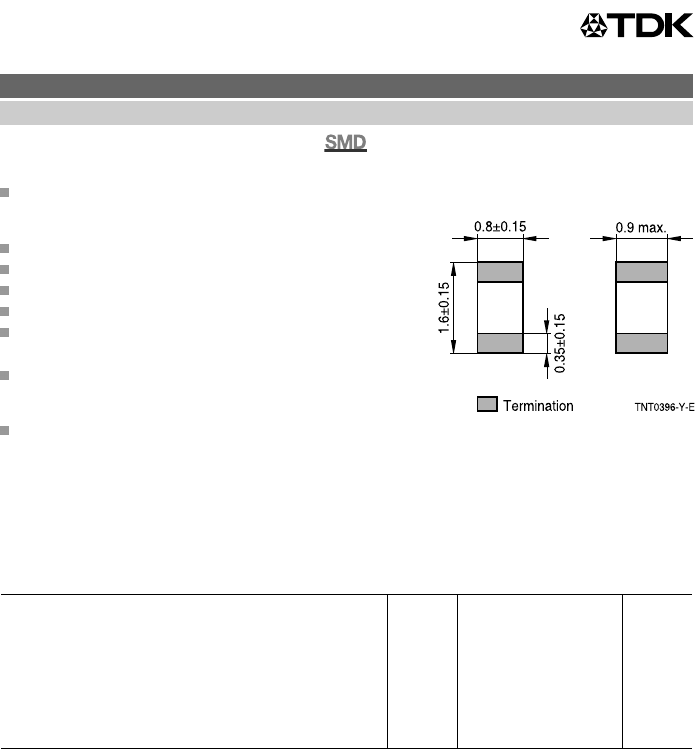

Dimensional drawing
Dimensions in mm
Approx. weight 6 mg
General technical data
Operating temperature range T
op
40 ... 150 °C
Max. power (at 25 °C, on PCB) P
25
1)
180 mW
Resistance tolerance R
R
/R
R
±1, ±3, ±5 %
Rated temperature T
R
25 °C
Dissipation factor (on PCB) δ
th
1)
approx. 3 mW/K
Thermal cooling time constant (on PCB) τ
c
1)
approx. 4 s
Heat capacity C
th
1)
approx. 12 mJ/K
Temperature measurement and compensation B573**V5
SMD NTC thermistors, case size 0603 (1608) Automotive series
Page 2 of 23Please read Cautions and warnings and
Important notes at the end of this document.
Electrical specification and ordering codes
R
25
R
R
/R
R
%
No. of R/T
characteristic
B
25/50
K
B
25/85
K
B
25/100
K
Ordering code
+ = Resistance tolerance
F = ±1% (only for type B57332V5103F360 and B57352V5104F360)
H = ±3%
J = ±5%
10 k ±1 8509 3380 3435 3455 ±1% B57332V5103F360
10 k ±3, ±5 8509 3380 3435 3455 ±1% B57332V5103+360
10 k ±3, ±5 8500 3590 3635 3650 ±3% B57342V5103+060
10 k ±3, ±5 8502 3940 3980 4000 ±3% B57351V5103+060
10 k ±3, ±5 8507 4386 4455 4480 ±3% B57352V5103+060
22 k ±3, ±5 8502 3940 3980 4000 ±3% B57351V5223+060
22 k ±3, ±5 8507 4386 4455 4480 ±3% B57352V5223+060
47 k ±3, ±5 8507 4386 4455 4480 ±3% B57352V5473+060
100 k ±1 8507 4386 4455 4480 ±1% B57352V5104F360
100 k ±3, ±5 8507 4386 4455 4480 ±1% B57352V5104+360
100 k ±3, ±5 8507 4386 4455 4480 ±3% B57352V5104+060
Temperature measurement and compensation B573**V5
SMD NTC thermistors, case size 0603 (1608) Automotive series
Page 3 of 23Please read Cautions and warnings and
Important notes at the end of this document.
