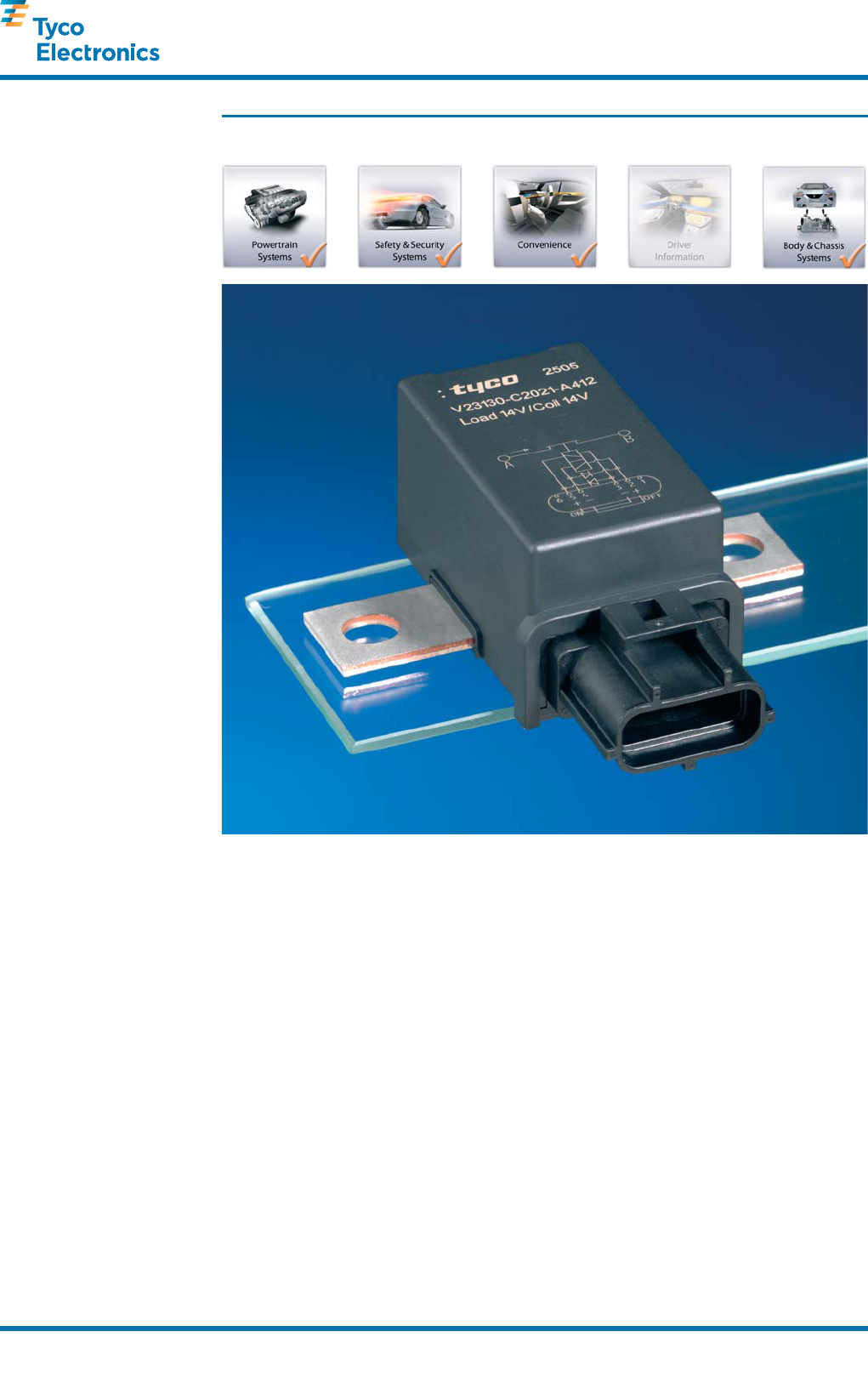

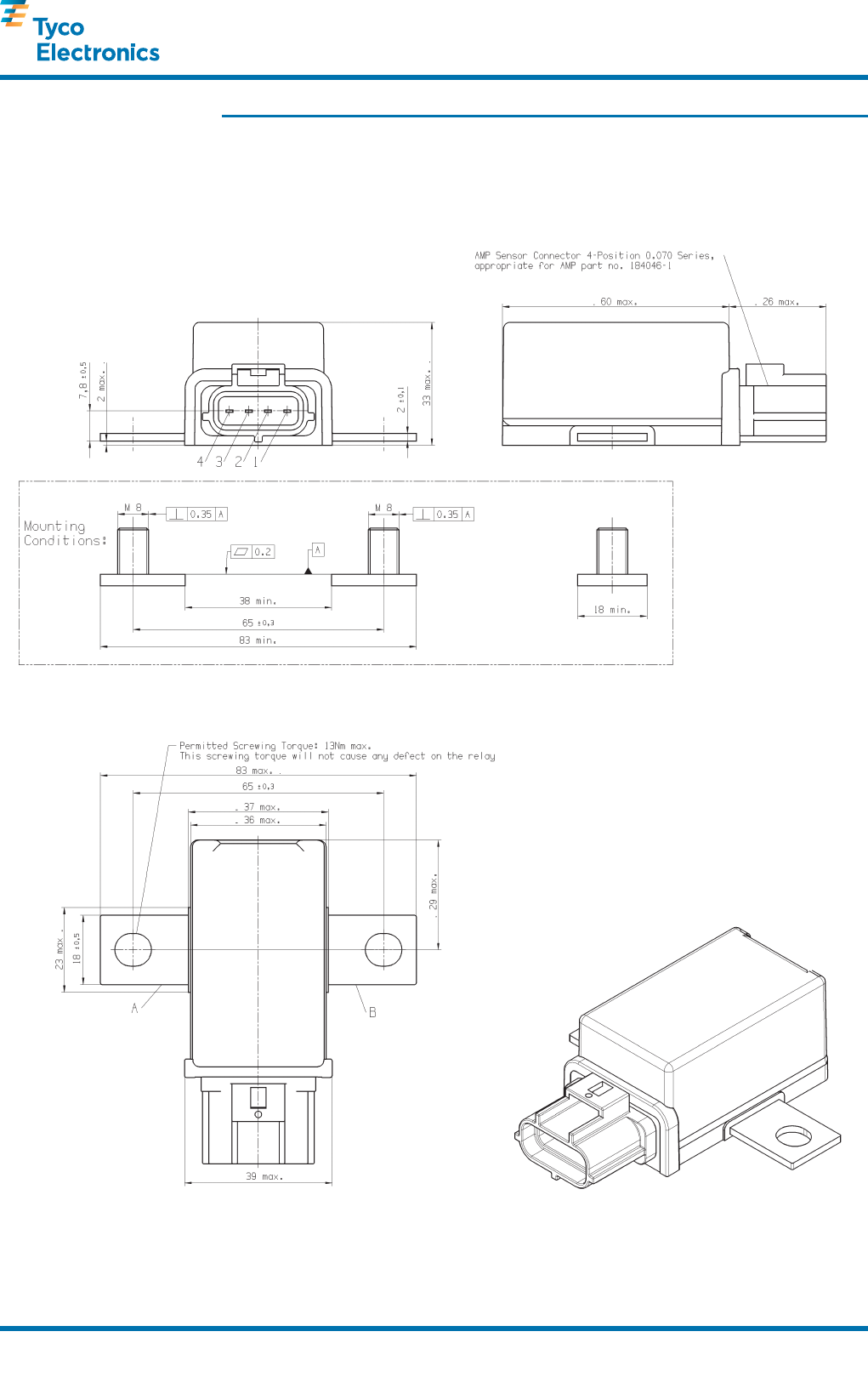

Battery Disconnect Switch BDS-A
High Current Solutions
High Current Devices
Catalog 1308028-2
Revised 3-2008
All specifications subject to change. Consult Tyco Electronics for latest specifications.
201
Contact Data for cable size
≥
50 mm
2
Contact configuration Form X
Circuit symbol
1), 2)
Rated voltage 12 V 24 V
Rated current 190 A
Limiting continuous current
23°C 260 A
85°C 190 A
125°C 88 A
Contact material Silver based
Load current From terminal B to A
Carrying capability: 1000 A 1 s on, 9 s off, 23°C, 50 mm
2
50.000 operations
3)
Carry starter current: 1500 A-0.2 s/600 A-5 s on, 60 s off, 23°C, 50 mm
2
50.000 operations
3)
Voltage drop at 100 A (initial, after 1 min) < 40 mV
Electrical endurance: 180 A 0.1 mH 1.5 s on, 5 s off, (–40/25/120)°C/2 h each, 35 mm
2
13.000 operations –
Electrical endurance: 100 A 0.1 mH 1.5 s on, 5 s off, (–40/25/120)°C/2 h each, 35 mm
2
50.000 operations –
Electrical endurance: 150 A 0.1 mH 0.5 s on, 5 s off, (–40/25/120)°C/2 h each, 35 mm
2
– 25.000 operations
Electrical endurance: 100 A 0.1 mH 0.5 s on, 5 s off, (–40/25/120)°C/2 h each, 35 mm
2
– 70.000 operations
Switching capability: 1500 A 0.5 s on, 10 min off, 23°C, 50 mm
2
resistive load 5 operations
3)
Max. temperature at load terminals 140°C
Mechanical shock, half sine, 6 ms, 6 directions (OFF→ON) 40 g
3)
1)
Delivery status “ex works”.
2)
Refer to
Latching Relay
in the “Glossary”.
3)
Values are influenced by system temperature and load current. For further details please consult our Technical Application Engineers.
130C_PA_3
Coil Data
Available for nominal voltages 12 V 24 V
Must operate voltage at 20°C (ON→OFF→ON)
1)
06 V 12 V
Non operate voltage at 20°C
1)
02 V 04 V
Test voltage winding/contact, contact-contact
1)
500 VAC
rms
Ambient temperature range –40 to +120°C
Coil excitation pulse length recommended/maximum 50 ms/100 ms
Switching time at 14 V ON-OFF typ. 5 ms/OFF-ON typ. 5 ms
Noise level
2)
Typ. 86 dB (A)
1)
Values are influenced by system temperature and load current. For further details please consult our Technical Application Engineers.
2)
Equivalent average sound pressure level leq, switch cycled with 1 Hz, microphone distance 10 cm, measuring time 15 s.
Circuit Diagram
X2C2D
1 Double make contact/1 Form X
with 2 Coils and 2 Diodes
