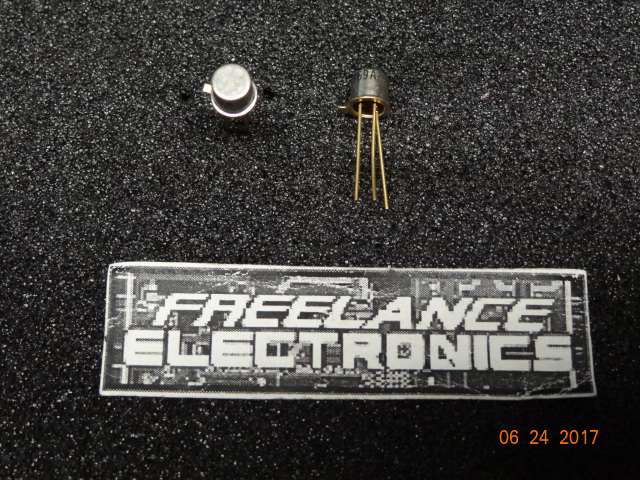

JANTXV2N2369A

Part # JANTXV2N2369A
Description TRANS NPN 15V TO18
Category TRANSISTOR
Availability In Stock
Qty 409
Qty Price
1 - 33 $4.50020
34 - 83 $3.57970
84 - 162 $3.37515
163 - 247 $3.13650
248 + $2.79558
Manufacturer Available Qty
Motorola Corp
Date Code: 8824
  • Shipping Freelance Stock: 11
    Ships Immediately
Motorola Corp
Date Code: 8824
  • Shipping Freelance Stock: 8
    Ships Immediately
Motorola Corp
Date Code: 8314
  • Shipping Freelance Stock: 2
    Ships Immediately
Motorola Corp
Date Code: 9303
  • Shipping Freelance Stock: 2
    Ships Immediately
Motorola Corp
Date Code: 8824
  • Shipping Freelance Stock: 8
    Ships Immediately
Motorola Corp
Date Code: 8740
  • Shipping Freelance Stock: 5
    Ships Immediately
Motorola Corp
  • Shipping Freelance Stock: 40
    Ships Immediately
Motorola Corp
  • Shipping Freelance Stock: 1
    Ships Immediately
Motorola Corp
Date Code: 9531
  • Shipping Freelance Stock: 2
    Ships Immediately
NAT/MOT/RAY
Date Code: 7900
  • Shipping Freelance Stock: 28
    Ships Immediately
RAYTHEON / MOTO
  • Shipping Freelance Stock: 16
    Ships Immediately
RAYTHEON SYSTEMS
Date Code: 8700
  • Shipping Freelance Stock: 231
    Ships Immediately
RAYTHEON SYSTEMS
Date Code: 8632
  • Shipping Freelance Stock: 8
    Ships Immediately
RAYTHEON SYSTEMS
Date Code: 8831
  • Shipping Freelance Stock: 46
    Ships Immediately
Texas Instruments
Date Code: 7812
  • Shipping Freelance Stock: 1
    Ships Immediately

Related Items

JANTX1N3011
NAE
TRANSISTOR
JANTX1N3011

JANTX1N3337B
Infineon
TRANSISTOR
JANTX1N3337B
$627.03963
JANTX1N5109
RAYTHEON SYSTEMS
TRANSISTOR
JANTX1N5109
$52.65545
JANTX1N6492
NES UNITRODE
TRANSISTOR
JANTX1N6492
$45.37543
JANTX2N04A
Generic
TRANSISTOR
JANTX2N04A

JANTX2N1132
Microsemi Corp
TRANSISTOR
JANTX2N1132
$118.47475


Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841 Gort Road Business Park, Ennis, Co. Clare, Ireland
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803 Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
Website: http://www.microsemi.com
NPN SILICON TRANSISTOR
Qualified per MIL-PRF-19500/317
T4-LDS-0057 Rev. 3 (110213) Page 1 of 8
DEVICES LEVELS
2N2369A 2N2369AUB 2N4449
JAN
2N2369AU 2N2369AUBC *
JANTX
2N2369AUA
JANTXV
JANS
* Available to JANS quality level only.
ABSOLUTE MAXIMUM RATINGS (T
C
= +25°C unless otherwise noted)
Parameters / Test Conditions Symbol Value Unit
Collector-Emitter Voltage V
CEO
15 Vdc
Emitter-Base Voltage V
EBO
4.5 Vdc
Collector-Base Voltage V
CBO
40 Vdc
Collector-Emitter Voltage I
CES
40 Vdc
Total Power Dissipation @
T
A
= +25°C
2N2369A; 2N4449
UA, UB, UBC
U
P
T
0.36
(1)
0.36
(1, 3)
0.50
(2)
W
Operating & Storage Junction Temperature Range T
op
, T
stg
-65 to +200 °C
THERMAL CHARACTERISTICS
Parameters / Test Conditions Symbol Value Unit
Thermal Resistance, Ambient-to-Case
R
JA
°C/W
2N2369A; 2N4449
UA, UB, UBC
U
400
486
(3)
350
Note:
1. Derate linearly 2.06 mW°/C above T
A
= +25°C.
2. Derate linearly 3.44 mW°/C above T
A
= +54.5°C.
3. Mounted on FR-4 PCB (1Oz. Cu) with contacts 20 mils larger than package pads.
ELECTRICAL CHARACTERISTICS (T
A
= +25°C, unless otherwise noted)
Parameters / Test Conditions Symbol Min. Max. Unit
OFF CHARACTERTICS
Collector-Emitter Breakdown Voltage
I
C
= 10mAdc
V
(BR)CEO
15
Vdc
Collector-Base Cutoff Current
V
CE
= 20Vdc
I
CES
0.4
Adc
TO-18 (TO-206AA)
2N2369A
TO-46 (TO-206AB)
2N4449
SURFACE MOUNT
UA
SURFACE MOUNT
UB & UBC
(UBC = Ceramic Lid Version)
SURFACE MOUNT
U (Dual Transistor)
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841 Gort Road Business Park, Ennis, Co. Clare, Ireland
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803 Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
Website: http://www.microsemi.com
T4-LDS-0057 Rev. 3 (110213) Page 2 of 8
ELECTRICAL CHARACTERISTICS (T
A
= +25°C, unless otherwise noted)
Parameters / Test Conditions Symbol Min. Max. Unit
OFF CHARACTERISTICS
Emitter-Base Cutoff Current
I
EBO
Adc
V
EB
= 4.5Vdc
V
EB
= 4.0Vdc
10
0.25
Collector- Base Cutoff Current
I
CBO
Adc
V
CB
= 40Vdc
V
CB
= 32Vdc
10
0.2
ON CHARACTERISTICS
(1)
Forward-Current Transfer Ratio
h
FE
I
C
= 10mAdc, V
CE
= 0.35Vdc
I
C
= 30mAdc, V
CE
= 0.4Vdc
I
C
= 10mAdc, V
CE
= 1.0Vdc
I
C
= 100mAdc, V
CE
= 1.0Vdc
40
30
40
20
120
120
120
120
Collector-Emitter Saturation Voltage
V
CE(sat)
Vdc
I
C
= 10mAdc, I
B
= 1.0mAdc
I
C
= 30mAdc, I
B
= 3.0mAdc
I
C
= 100mAdc, I
B
= 10mAdc
0.20
0.25
0.45
Base-Emitter Saturation Voltage
V
BE(sat)
Vdc
I
C
= 10mAdc, I
B
= 1.0mAdc
I
C
= 30mAdc, I
B
= 3.0mAdc
I
C
= 100mAdc, I
B
= 10mAdc
0.70
0.80
0.85
0.90
1.20
DYNAMIC CHARACTERISTICS
Parameters / Test Conditions Symbol Min. Max. Unit
Forward Current Transfer Ratio
I
C
= 10mAdc, V
CE
= 10Vdc, f = 100MHz
|h
fe
| 5.0 10
Output Capacitance
C
obo
4.0 pF
V
CB
= 5.0Vdc, I
E
= 0, 100kHz f 1.0MHz
Input Capacitance
C
ibo
5.0 pF
V
EB
= 0.5Vdc, I
C
= 0, 100kHz f 1.0MHz
SWITCHING CHARACTERISTICS
Parameters / Test Conditions Symbol Min. Max. Unit
Turn-On Time
I
C
= 10mAdc; I
B1
= 3.0mAdc, I
B2
= -1.5mAdc
t
on
12
s
Turn-Off Time
I
C
= 10mAdc; I
B1
= 3.0mAdc, I
B2
= -1.5mAdc
t
off
18
s
Charge Storage Time
I
C
= 10mAdc; I
B1
= 10mAdc, I
B2
= 10mAdc
t
S
13
s
(1) Pulse Test: Pulse Width = 300s, Duty Cycle 2.0%.
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841 Gort Road Business Park, Ennis, Co. Clare, Ireland
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803 Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
Website: http://www.microsemi.com
T4-LDS-0057 Rev. 3 (110213) Page 3 of 8
PACKAGE DIMENSIONS
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Beyond r (radius) maximum, TH shall be held for a minimum length of .011 (0.28 mm).
4. Dimension TL measured from maximum HD.
5. Body contour optional within zone defined by HD, CD, and Q.
6. Leads at gauge plane .054 +.001 -.000 inch (1.37 +0.03 -0.00 mm) below seating plane shall be within .007 inch (0.18
mm) radius of true position (TP) at maximum material condition (MMC) relative to tab at MMC.
7. Dimension LU applies between L1 and L2. Dimension LD applies between L2 and LL minimum. Diameter is
uncontrolled in L1 and beyond LL minimum.
8. All three leads.
9. The collector shall be internally connected to the case.
10. Dimension r (radius) applies to both inside corners of tab.
11. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.
12. Lead 1 = emitter, lead 2 = base, lead 3 = collector.
FIGURE 1. Physical dimensions TO-18 (2N2369A).
Dimensions
Ltr Inches Millimeters Notes
Min Max Min Max
CD .178 .195 4.52 4.95
CH .170 .210 4.32 5.33
HD .209 .230 5.31 5.84
LC .100 TP 2.54 TP 6
LD .016 .021 0.41 0.53 7,8
LL .500 .750 12.70 19.05 7,8,13
LU .016 .019 0.41 0.48 7,8
L
1
.050 1.27 7,8
L
2
.250 6.35 7,8
P .100 2.54 5
Q .030 0.76 5
TL .028 .048 0.71 1.22 3,4
TW .036 .046 0.91 1.17 3
r .010 0.25 10
α 45° TP 45° TP 6
