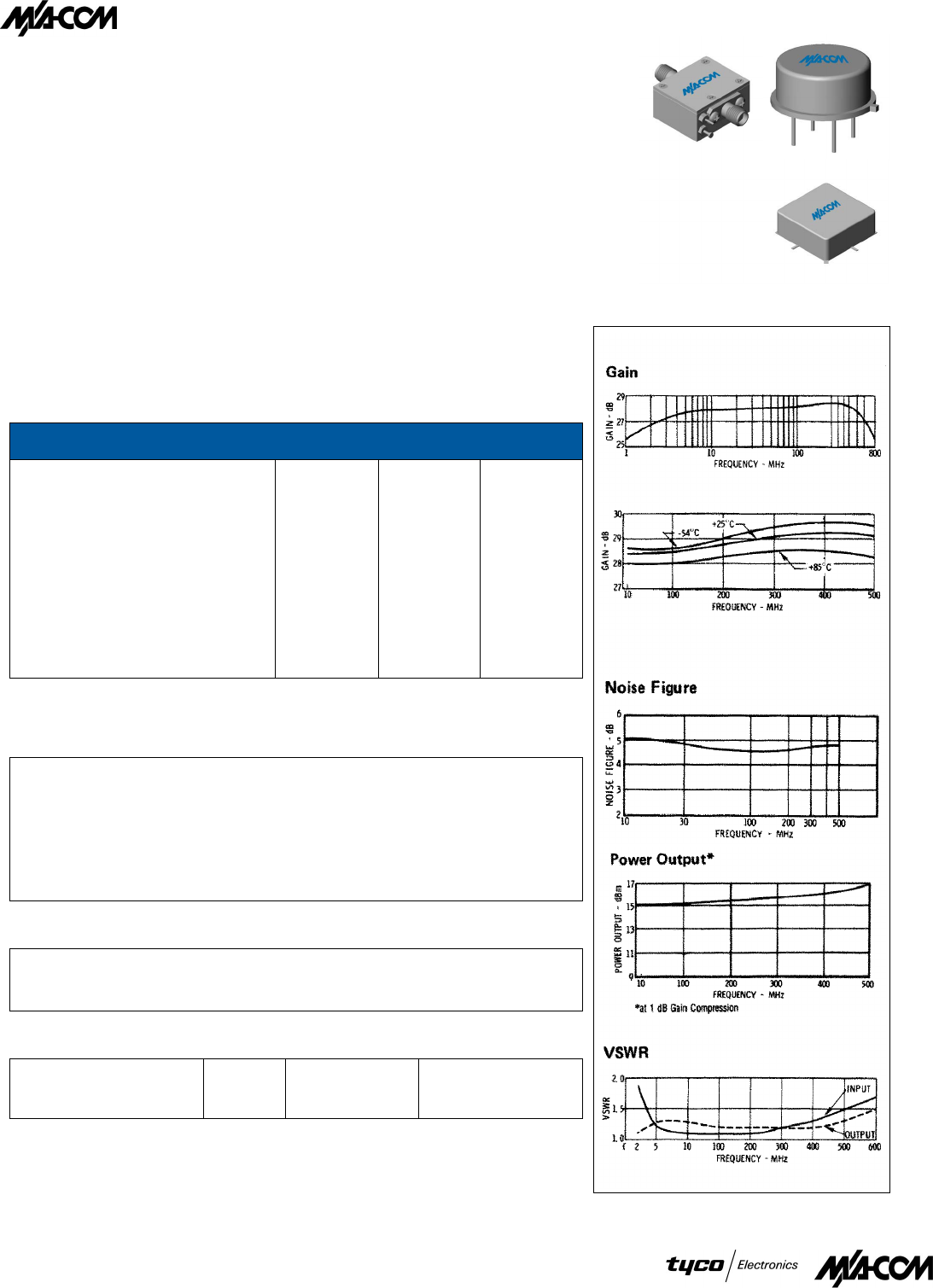

· HIGH GAIN - TWO STAGES: 28 dB (TYP.)
· HIGH OUTPUT LEVEL: +15 dBm (TYP.)
· HIGH THIRD ORDER I.P.: +28 dBm (TYP.)
· WIDE POWER SUPPLY RANGE:
+8 TO +15 VOLTS
A76/SMA76
5 TO 500 MHz
CASCADABLE AMPLIFIER
Specifications (Rev. Date: 11/00)*
* Measured in a 50-ohm system at +15 Vdc Nominal. Subject to change without notice.
BG
AA
CE
3-600 MHz
28.0 dB
±0.3 dB
37 dB
3.0 dB
14.7 dBm
+28 dBm
+42 dBm
+48 dBm
1.3:1 / 1.3:1
60 mA
5-500 MHz
27.0 dB
±0.7 dB
13.5 dBm
14.0 dBm
2.0:1 / 2.0:1
65 mA
1.8:1 / 1.8:1
63 mA
5-500 MHz
26.0 dB
±1.0 dB
4.0 dB
-62° to +125°C
125°C
+17 Volts
+6 dBm
40 mW
0.5 W
125°C
130°C/W
0.411 W
54°C
A76
SMA76
CA76
