A0286

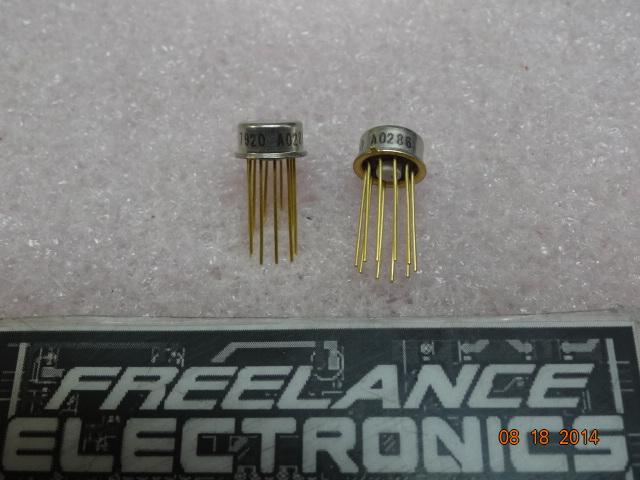

Part # A0286
Description
Category TRANSISTOR
Availability In Stock
Qty 13
Qty Price
1 - 1 $216.81000
2 - 2 $172.46250
3 - 3 $162.60750
4 - 5 $151.11000
6 + $134.68500
Manufacturer Available Qty
National Semiconductor Corp
Date Code: 7920
  • Shipping Freelance Stock: 13
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

TAI-SAW TECHNOLOGY CO., LTD. FR-71S03-01
TST DCC
Release document
TAI-SAW TECHNOLOGY CO., LTD.
No. 3, Industrial 2nd Rd., Ping-Chen Industrial District,
Taoyuan, 324, Taiwan, R.O.C.
TEL: 886-3-4690038 FAX: 886-3-4697532
E-mail: tstsales@mail.taisaw.com
Web: www.taisaw.com
Approval Sheet For Product Specification
Issued Date: 2003/05/16
Product Name: SAW Filter 433MHz SMD 5.0×5.0 mm
TST Parts No.:TA0286A
Customer Parts No.:
Company:
Division:
Approved by :
Date:
Checked by: Elvis Chiu
Approval by: Francis Chen
Date: 2003/05/16
TAI-SAW TECHNOLOGY CO., LTD. 2
TST DCC
Release document
TAI-SAW TECHNOLOGY CO., LTD.
No. 3, Industrial 2nd Rd., Ping-Chen Industrial District,
Taoyuan, 324, Taiwan, R.O.C.
TEL: 886-3-4690038 FAX: 886-3-4697532
E-mail: tstsales@mail.taisaw.com
Web: www.taisaw.com
SAW Filter 433 MHz
MODEL NO.: TA0286A REV. NO.:1
A. MAXIMUM RATING:
1.Input Power Level: 0 dB
m
2.DC voltage: 10 V
3.Operating Temperature: -10°C to +50°C
4.Storage Temperature: -40°C to +85°C
B. ELECTRICAL CHARACTERISTICS:
Item Min. Typical Max.
Center frequency Fc (dB) - 433 -
Insertion loss (F
C
±4 MHz) IL (dB) - 2.7 4.5
Amplitude ripple (F
C
± 4 MHz) (dB) - 0.7 2.5
Attenuation (Reference level from 0 dB)
F
C
- 100 ~ F
C
– 40.8 MHz (dB) 42 50 -
F
C
+ 40 ~ F
C
+ 100 MHz (dB) 40 46 -
Source impedance Zs ()
- 50//0pF -
Load impedance ZL ()
- 50//0pF -
Note1. The standard definitions is in JIS C 6703
Note2.
Z
IN
=50 //0pF
Z
OUT
=50 //0pF
Source impedance
50
Load impedance
50
RoHS Compliant
Lead free
Lead-free soldering
TAI-SAW TECHNOLOGY CO., LTD. 3
TST DCC
Release document
C. Frequency Characteristics :
