ASW316
5 ~ 3000 MHz MMIC Amplifier
(Supply Voltage = +5 V, T
A
= +25 C, Z
0
= 50 )
Parameters
Units
Typical
Frequency
MHz
5
900
1950
Gain
dB
14.8
17.0
16.0
S11
dB
-18
-18
-20
S22
dB
-10
-12
-10
Output IP3
dBm
40.0
1)
42.5
2)
39.0
3)
Noise Figure
dB
2.9
1.9
2.6
Output P1dB
dBm
20.5
21.0
22.5
Current
mA
110
110
110
Device Voltage
V
+5
+5
+5
1) OIP3 is measured with two tones at an output power of +10 dBm/tone separated by 1 MHz.
2) OIP3 is measured with two tones at an output power of +5 dBm/tone separated by 1 MHz.
3) OIP3 is measured with two tones at an output power of +6 dBm/tone separated by 1 MHz.
4) OIP3 is measured with two tones at an output power of +4 dBm/tone separated by 1 MHz.
Parameters
Units
Min
Typ.
Max
Testing Frequency
MHz
900
Gain
dB
17
S11
dB
-18
S22
dB
-12
Output IP3
dBm
42.5
Noise Figure
dB
1.9
Output P1dB
dBm
21
Current
mA
110
Device Voltage
V
+5
Parameters
Rating
Operating Case Temperature
-40 to 85 C
Storage Temperature
-40 to 150 C
Device Voltage
+6 V
Operating Junction Temperature
+150 C
Input RF Power
(CW, 50 matched as in 1950 MHz application circuit)*
+23 dBm
Thermal Resistance
60 C/W
* Please find the max. input power data from http://www.asb.co.kr/pdf/Maximum_Input_Power_Analysis.pdf
The max. input power, in principle, depends upon the application frequency and the matching circuit.
Features
Description
Absolute Maximum Ratings
17 dB Gain at 900 MHz
21 dBm P1dB at 900 MHz
42.5 dBm OIP3 at 900 MHz
1.9 dBm NF at 900 MHz
MTTF > 100 Years
The ASW316, a power amplifier MMIC, has a high
linearity, high gain, and high efficiency over a wide
range of frequency, being suitable for use in both re-
ceiver and transmitter of telecommunication systems
up to 3 GHz. The amplifier is available in a SOT89
package and passes through the stringent DC, RF,
and reliability tests.
Application Circuit
LTE (698 ~ 787 MHz)
CMMB
900 MHz
LTE (1745 ~ 1860 MHz)
1950 MHz
2400 MHz
2700 MHz
500 ~ 3000 MHz
IF (5 ~ 1000 MHz)
IF (50 ~ 1000 MHz)
IF (30 ~ 512 MHz)
Product Specifications
Typical Performance
ASW 313
ASW316
Package Style: SOT89
Pin Configuration
Pin No.
Function
1
RF IN
2
GND
3
RF OUT & Bias
2/15 ASB Inc. sales@asb.co.kr Tel: +82-42-528-7225 February 2017
ASW316
5 ~ 3000 MHz MMIC Amplifier
Pin No.
Function
1
RF IN
2
GND
3
RF OUT & Bias

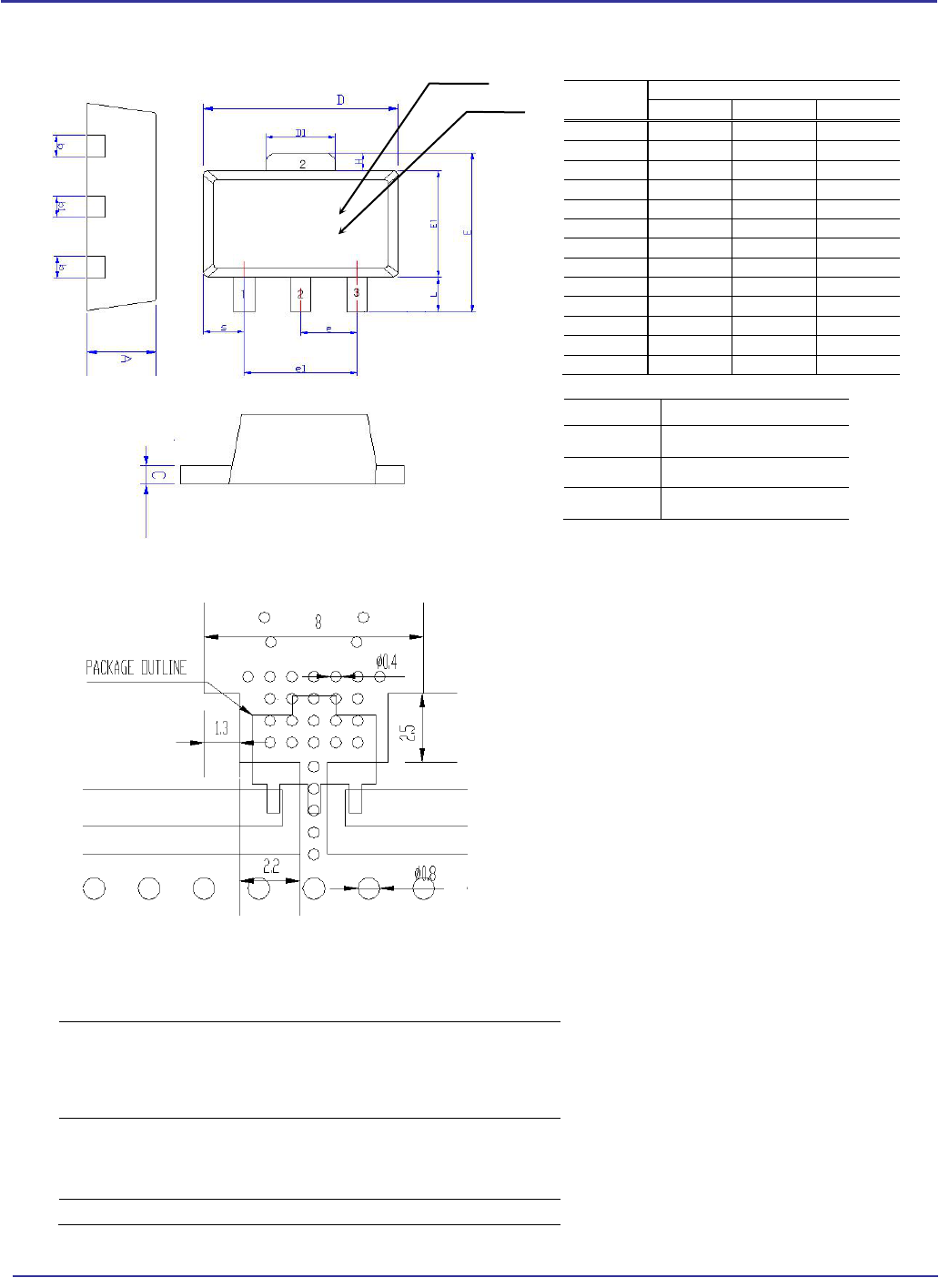

Mounting Recommendation (In mm)
Outline Drawing
ESD Classification
HBM
Class 1A
Voltage Level: 400 V
MM
Class A
Voltage Level: 50 V
CAUTION: ESD-sensitive device!
Moisture Sensitivity Level (MSL)
Level 3 at 260 C reflow
ESD Classification & Moisture Sensitivity Level
Symbols
Dimensions (In mm)
MIN
NOM
MAX
A
1.40
1.50
1.60
L
0.89
1.04
1.20
b
0.36
0.42
0.48
b1
0.41
0.47
0.53
C
0.38
0.40
0.43
D
4.40
4.50
4.60
D1
1.40
1.60
1.75
E
3.64
---
4.25
E1
2.40
2.50
2.60
e1
2.90
3.00
3.10
H
0.35
0.40
0.45
S
0.65
0.75
0.85
e
1.40
1.50
1.60
ASW316
Pxxxx
Lot No.
Part No.
Note: 1. The number and size of ground via holes in
a circuit board is critical for thermal and RF
grounding considerations.
2. We recommend that the ground via holes
be placed on the bottom of the lead pin 2
and exposed pad of the device for better RF
and thermal performance, as shown in the
drawing at the left side.
3/15 ASB Inc. sales@asb.co.kr Tel: +82-42-528-7225 February 2017
ASW316
5 ~ 3000 MHz MMIC Amplifier
1) OIP3 is measured with two tones at an output power of +5
dBm/tone separated by 1 MHz.

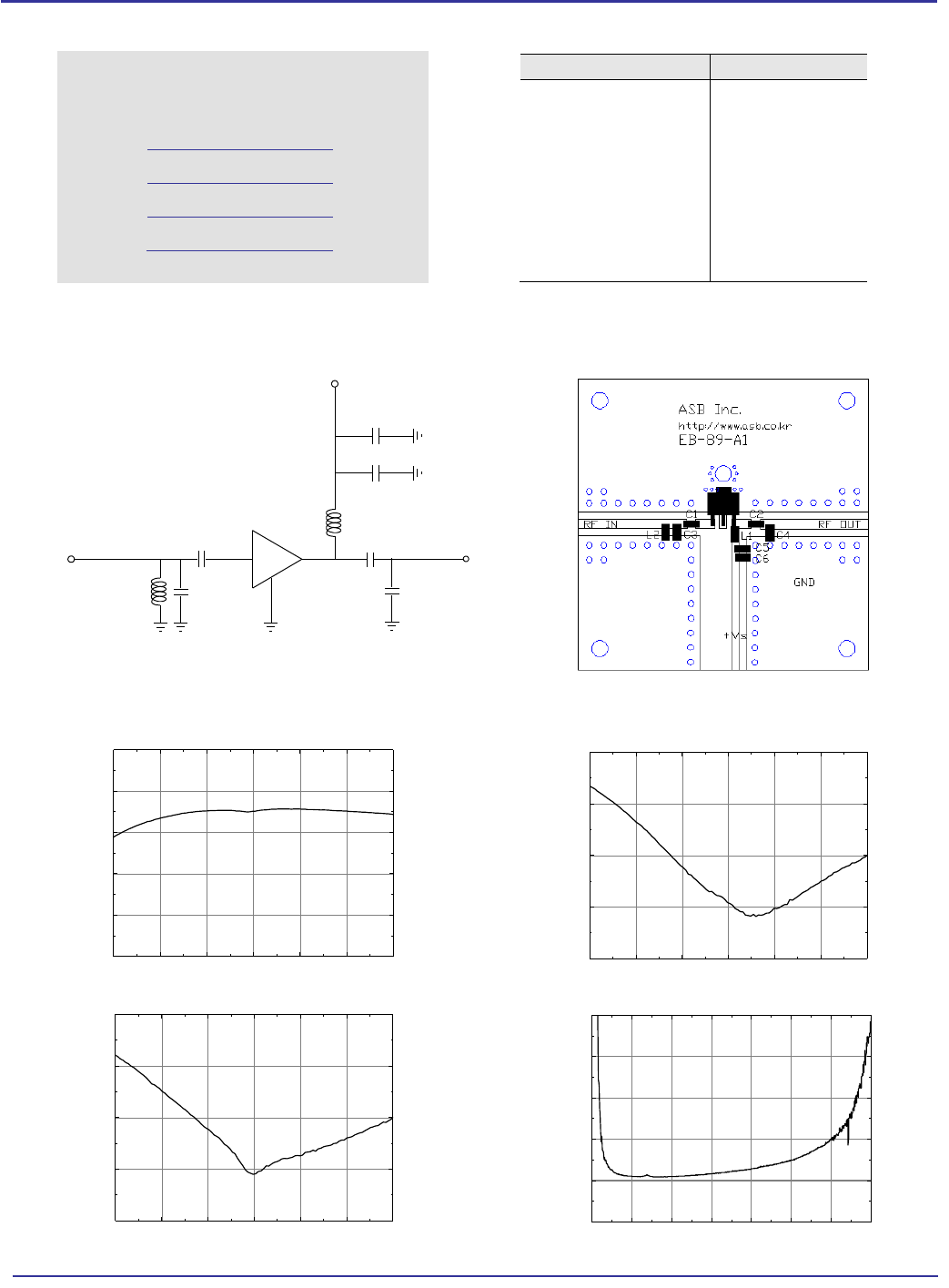

Board Layout (FR4, 40x40 mm
2
, 0.8T)
Schematic
S-parameters & K-factor
APPLICATION CIRCUIT
Frequency (MHz)
698 ~ 787
Magnitude S21 (dB)
17
Magnitude S11 (dB)
-14
Magnitude S22 (dB)
-13
Output P1dB (dBm)
21
Output IP3
1)
(dBm)
42
Noise Figure (dB)
1.8
Device Voltage (V)
+5
Current (mA)
110
LTE
698 ~ 787 MHz
+5 V
L1=15 nH
RF IN
RF OUT
ASW316
Vs=5 V
C1=100 pF
C5=68 pF
C6=1 F
L2=12 nH
C2=100 pF
C3=1.2 pF
C4=1.2 pF
0 500 1000 1500 2000 2500 3000 3500
0
1
2
3
4
5
Stability Factor
Frequency (MHz)
400 500 600 700 800 900 1000
0
5
10
15
20
25
S21 [dB]
Frequency [MHz]
400 500 600 700 800 900 1000
-20
-15
-10
-5
0
S11 [dB]
Frequency [MHz]
400 500 600 700 800 900 1000
-20
-15
-10
-5
0
S22 [dB]
Frequency [MHz]
