MOLEX 19141-0058

Cross Number:

Item Description: TERMINAL, SPADE, #8, CRIMP, Product Range:Krimptite 19141

Qty Price
1 - 178 $0.14190
179 - 357 $0.11073
358 - 535 $0.09675
536 - 714 $0.09353
715 + $0.08385



Other Cross Reference

Manufacturer Date Code Qty Available Qty
MOLEX
  • Freelance Stock: 850
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

This document was generated on 04/14/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0191410058
Status:
Active
Description: Krimptite™ Spade Tongue Terminal for 14-16 AWG Wire
Documents:
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Agency Certification
CSA LR18689
UL E32244
General
Product Family Ring and Spade Terminals
Series 19141
Crimp Quality Equipment Yes
Mil-Spec N/A
Product Name Krimptite™
Type Spade
Physical
Barrel Type Closed
Insulation None
Material - Plating Mating Tin
Packaging Type Bag
Plating min: Mating (µin) 160
Plating min: Mating (µm) 4
Plating min: Termination (µin) 160
Plating min: Termination (µm) 4
Stud Size 8 (M4)
Wire Size AWG 14, 16
Wire Size mm² 1.30 - 2.00
Material Info
Old Part Number BB-124-08
Reference - Drawing Numbers

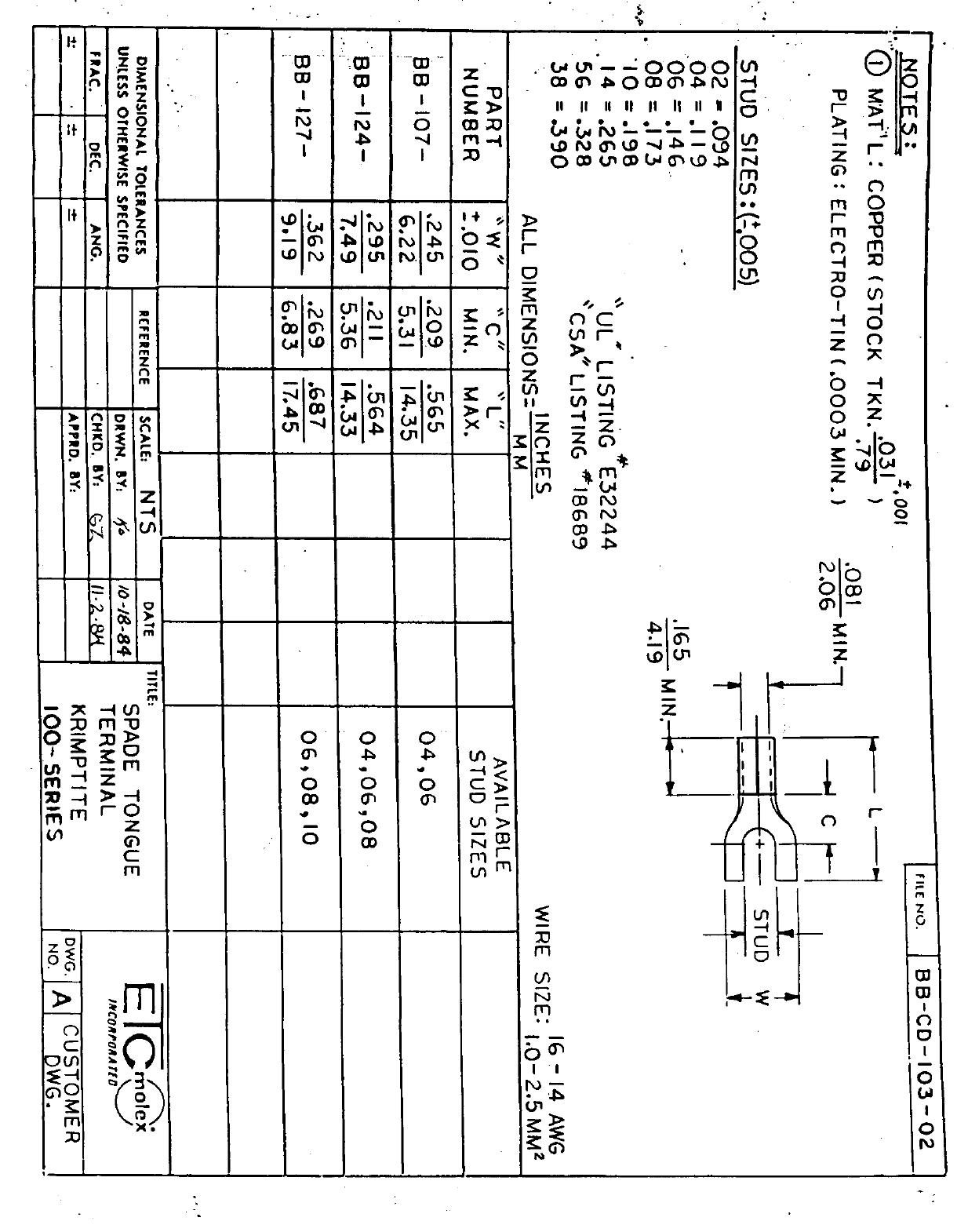

Sales Drawing BBCD10302, SD-19141-001
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
