Bussmann 16220-2

Cross Number:

Item Description: CONN BARRIER STRP 2 POS 20.57MM SCRW ST - Bulk

Qty Price
1 - 2 $47.45545
3 + $37.02963



Other Cross Reference

Manufacturer Date Code Qty Available Qty
Bussmann
  • Freelance Stock: 3
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

1 2 3 4 5
A
B
C
D
SIZE
A4
REV DATE FILE BY
H 22-JAN-13 POLARITY REMOVE QL
APPROVAL: GMo

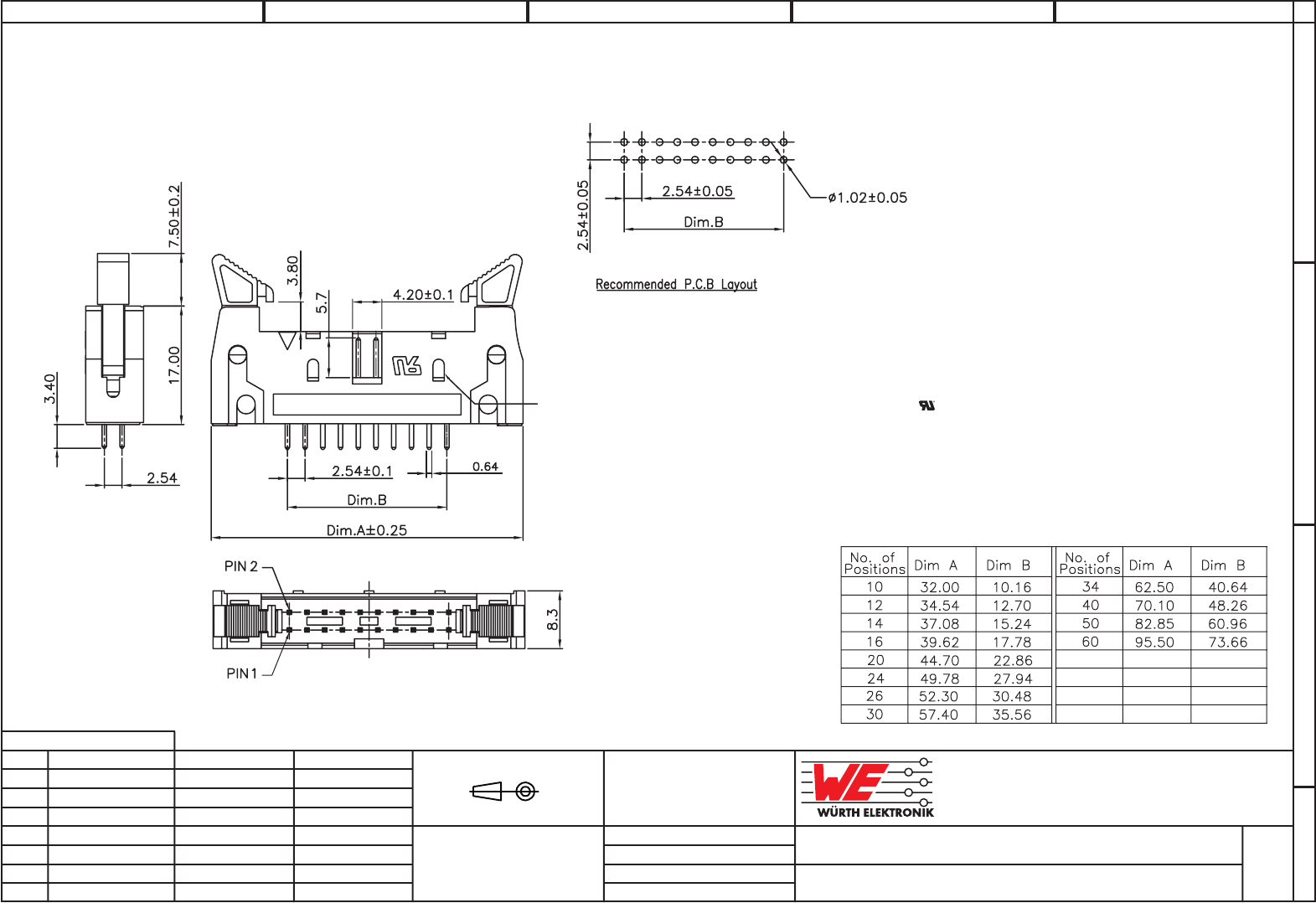

UNIT: MM DESCRIPTION: 2.54MM MALE BOX HEADER WITH SHORT LEVER
SCALE:
SHEET: 1/3 WERI PART
NO: 612 0xx 220 21
DRAW: MIKE
P GENERAL TOLERANCE
.X =
+
/
-
0.2
.XX =
+
/
-
0.15
RoHS Compliant
TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PBT
FLAMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: GOLD
QUALITY CLASS: 3 AS PER CECC 75 301-802
PITCH: 2.54 MM
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 125°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 3A MAX
WORKING VOLTAGE: 250 VAC
INSULATOR RESISTANCE: >1000 MOHM
DIELECT
RIC WITHSTANDING VOLTAGE: 500 VAC/MN
CONTACT
RESISTANCE: 20 mOHM MAX
STANDARD
CERTIFIED: E323964
SOLDERING
JEDEC LEAD FREE WAVE SOLDERING PROCESS

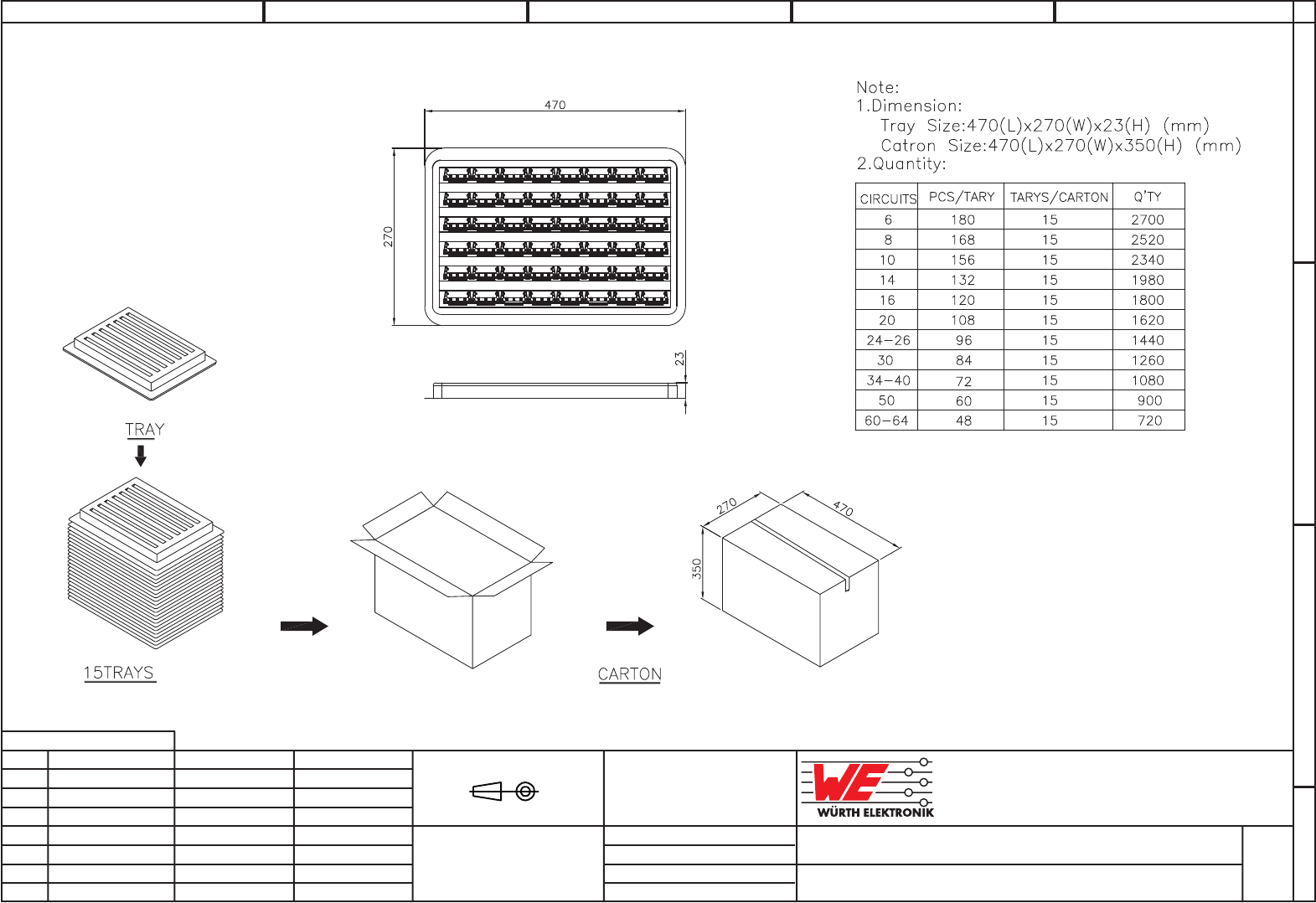

PACKAGING
TRAY
DIMENSION
Holes left and right appear from polarity 20
I 19-MAR-13 NOTES AR
PROJECTION:
J 22-SEP-15 NOTES SBe
K 26-JAN-16 TPK UPDATE AK
Notes:
No. of Positions 64 with three key; Other positions with one key
SQ
1 2 3 4 5
A
B
C
D
SIZE
A4
REV DATE FILE BY
A
B
C
D
E
F
G
APPROVAL:
UNIT: MM
SCALE:
SHEET: 2/3
DRAW: PEARL
PROJECTION: GENERAL TOLERANCE
.X =
+
/
-
0.2
.XX =
+
/
-
0.15
RoHS Compliant
WERI PART NO: 612 0xx 220 21
DESCRIPTION: 2.54MM MALE BOX HEADER WITH SHORT LEVER
GMo
1 2 3 4 5
A
B
C
D
SIZE
A4
REV DATE FILE BY
A 10-SEP-14 PDF QL
B
C
D
E
F
G
APPROVAL: JC
UNIT: MM DESCRIPTION: DISCLAIMER
SCALE:
SHEET: 3/3 WERI PART NO: DISCLAIMER
DRAW: QL
PROJECTION: GENERAL TOLERANCE
.X =
+
/
-
0.2
.XX =
+
/
-
0.15
RoHS Compliant
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
