147 03/01

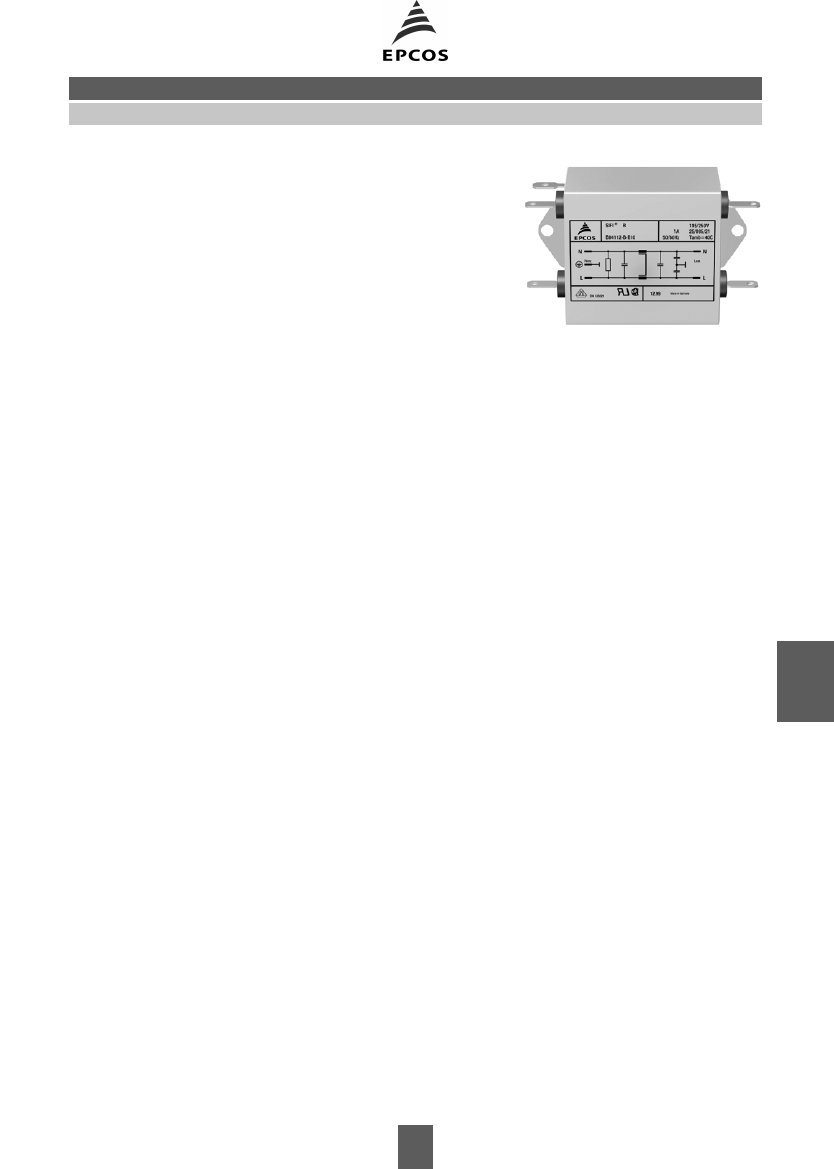

2-Line Filters B84112
SIFI-B Series
SIFI-B for enhanced insertion loss
Rated voltage 250 V~, 50/60 Hz
Rated current 1 A to 20 A
Construction
Two-line filter
Metal case
Polyurethane potting (UL 94 V-0)
Features
Compact design
Low leakage current
All relevant approvals
Cost-optimized construction
Also for assembly on top-hat rails
Applications
Switch-mode power supplies in
industrial electronics
telecommunications
data systems
medical engineering
Case styles and terminal styles
Case style A Tab connectors on face ends, lateral mounting tabs.
Particularly suitable for mounting on a shielding wall.
Case style B Tab connectors on face ends, mounting tabs on face ends.
Case style K IEC connector as per IEC 60320 C 14 on line side,
tab connectors on load side, mounting holes with metric thread.
Case style L Litz wires on face ends
Case style P Pins fitting PCB standard grid
Marking
Marking on component:
Manufacturers logo, ordering code,
rated voltage, rated current,
date code
Minimum marking on packaging:
Manufacturers logo, ordering code
148 03/01
2-Line Filters B84112
SIFI-B Series
Circuit diagram
Technical data
Rated voltage V
R
250 V~, 50/60 Hz
Rated current I
R
Referred to 40 °C ambient temperature
Test voltage V
P
1414 V, 2 s (line/line)
2700 V, 2 s (lines/case)
Leakage current l
leak
< 0,5 mA at 230 V~, 50 Hz
Discharge resistors The discharge resistors are rated such that one second
after having disconnected the device from the power
line, the voltage at the line connector should have
dropped to 34 V.
Climatic category In accordance with EN 60068-1
25/085/21 ( 25
°C/+ 85 °C/21 days damp heat test)
Approvals
SSB0525-W
N
L
N
L
LINE LOAD
EN 133221
149 03/01
2-Line Filters B84112
SIFI-B Series
Characteristics and ordering codes
I
R
A
C
R
L
R
Case
style
Appr.
weight
g
Ordering code Mounting plate
for top-hat rail
(ordering code)
12
× 0,15 µF (X2)
+
2
× 4700 pF (Y2)
2
× 10 mH A
B
K
L
110
110
140
110
B84112-B-A10
B84112-B-B10
B84112-B-K10
B84112-B-L10
C62122-A132-B91
22
× 0,15 µF (X2)
+
2
× 4700 pF (Y2)
2
× 10 mH A
B
L
110
110
110
B84112-B-A20
B84112-B-B20
B84112-B-L20
C62122-A132-B91
32
× 0,22 µF (X2)
+
2
× 4700 pF (Y2)
2
× 10 mH A
B
K
L
P
140
140
210
140
140
B84112-B-A30
B84112-B-B30
B84112-B-K30
B84112-B-L30
B84112-B-P30
C62122-A132-B92
62
× 0,33 µF (X2)
+
2
× 4700 pF (Y2)
2
× 3,3 mH A
B
K
L
150
150
210
150
B84112-B-A60
B84112-B-B60
B84112-B-K60
B84112-B-L60
C62122-A132-B92
10 2
× 0,47 µF (X2)
+
2
× 4700 pF (Y2)
2
× 1,8 mH A
B
L
200
200
200
B84112-B-A110
B84112-B-B110
B84112-B-L110
C62122-A132-B92
20 2
× 0,68 µF (X2)
+
2
× 4700 pF (Y2)
2
× 1,8 mH A
B
700
700
B84112-B-A120
B84112-B-B120
C62122-A132-B92
123NEXT
