AS-12AV

Part # AS-12AV

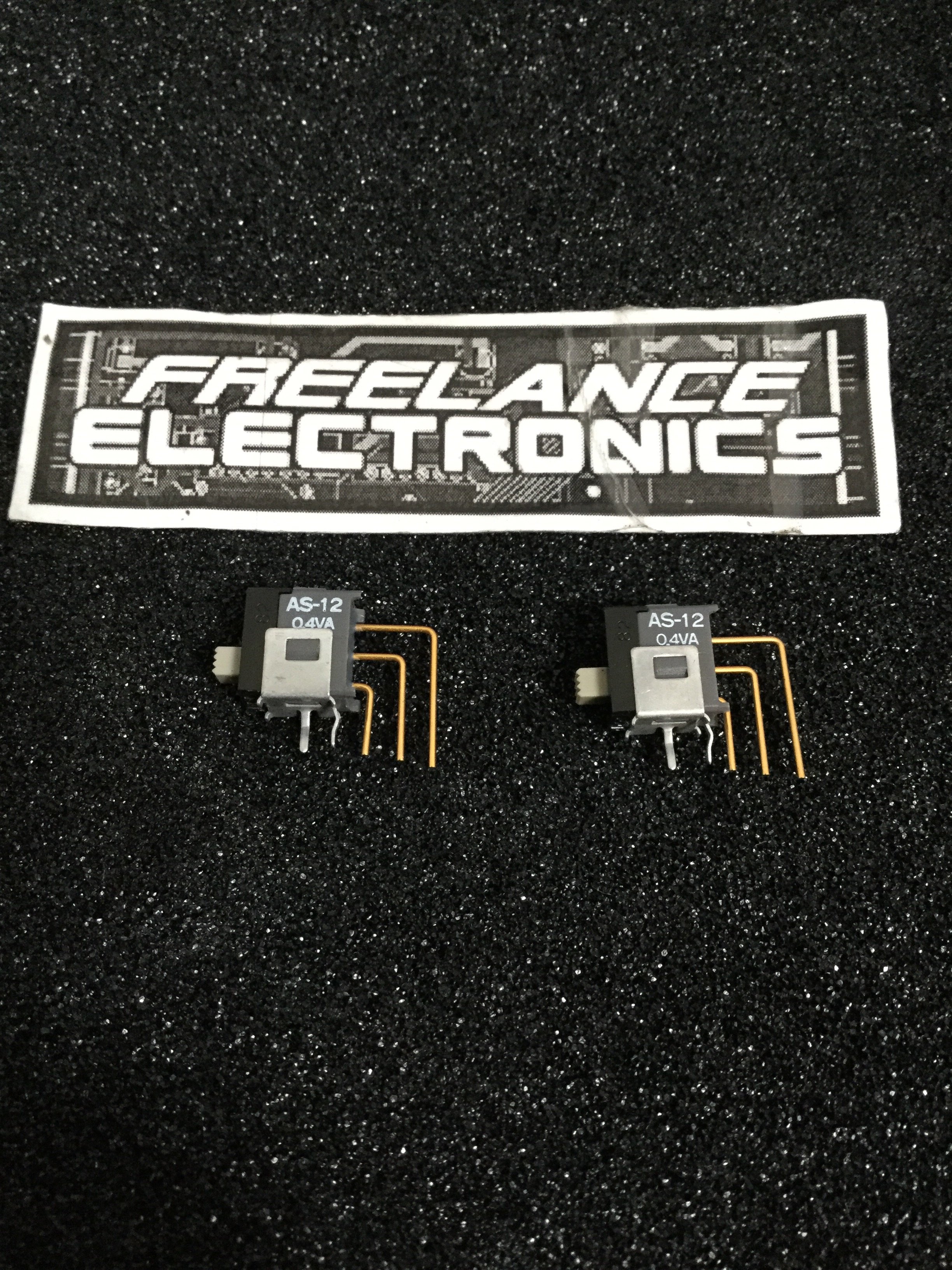

Description Switch Slide ON None ON SPDT0.1A 28VAC 28VDC 0.4VA
Category SWITCH
Availability In Stock
Qty 3
Qty Price
1 + $1.15962
Manufacturer Available Qty
NIHON KAIHEIKI
  • Shipping Freelance Stock: 3
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

NKK Switches email: sales@nkkswitches.com Phone (480) 991-0942 Fax (480) 998-1435 www.nkkswitches.com
03-07
Subminiature Slides Series AS
Distinctive Characteristics
Subminiature size (1/3 size of Series M switches) saves space on PC boards.
Specically developed for logic-level applications.
Award-winning STC contact mechanism with benets
unavailable in conventional mechanisms: smoother,
positive detent actuation, increased contact
stability and unparalleled logic-level reliability.
(Additional STC details in Terms & Acronyms;
see Supplement section.)
Available in various actuator lengths.
Antistatic superstructure of carbon
blended polyacetal prevents static
discharge to the contacts.
Molded-in, epoxy sealed or ultrasonically
welded terminals lock out ux, solvents,
and other contaminants.
.100” x .100” (2.54mm x 2.54mm) terminal
spacing conforms to standard PC board grid
spacing.
Matching indicators available and shown at the
end of Section M.
Actual Size
NKK Switches email: sales@nkkswitches.com Phone (480) 991-0942 Fax (480) 998-1435 www.nkkswitches.com
03-07
Subminiature Slides Series AS
General Specications
Electrical Capacity (Resistive Load)
Logic Level: 0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Other Ratings
Contact Resistance: 50 milliohms maximum
Insulation Resistance: 500 megohms minimum @ 500V DC
Dielectric Strength: 500V AC minimum for 1 minute minimum
Mechanical Life: 50,000 operations minimum
Electrical Life: 50,000 operations minimum
Nominal Operating Force: 2.55N
Contact Timing: Nonshorting (break-before-make)
Travel: Pretravel: .082” (2.1mm); Overtravel: .016” (0.4mm); Total Travel: .098” (2.5mm)
Materials & Finishes
Actuator: Glass ber reinforced polyamide
Upper Case Housing: Carbon blended polyacetal (antistatic)
Lower Case Housing: Glass ber reinforced polyamide
Support Bracket: Tin plated phosphor bronze
Movable Contact: Phosphor bronze with gold plating
Stationary Contacts: Brass with gold plating
Terminals: Brass with gold plating
Environmental Data
Operating Temperature Range: –30°C through +85°C (–22°F through +185°F)
Humidity: 90 ~ 95% humidity for 192 hours @ 40°C (104°F)
Vibration: 10 ~ 60Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 5 minutes; 3 right angled directions for 30 minutes
Shock: 50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
PCB Processing
Soldering: Wave Soldering Recommended. See Prole A in Supplement section.
Manual Soldering: for single pole see Prole B in Supplement section; for double pole see Prole A.
Cleaning: These devices are not process sealed. Hand clean locally using alcohol based solution.
Standards & Certifications
UL Recognition
or CSA Certication: The A Series slides have not been tested for UL recognition or CSA certication.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
NKK Switches email: sales@nkkswitches.com Phone (480) 991-0942 Fax (480) 998-1435 www.nkkswitches.com
03-07
Subminiature Slides Series AS
POLES
1
SPST
SPDT
2
DPDT
SP3T
TYPICAL SWITCH ORDERING EXAMPLE
2 HAS
DPDT
ON-NONE-ON Circuit
Right Angle PC Terminals
Slide Position
Connected Terminals Throw & Schematics
Pole Model
Left Center Right Left Center Right
Note: Terminal numbers are not
actually on the switch.
SP AS11 ON NONE OFF 3-1 OPEN OPEN SPST
SP
AS12
AS13
ON
ON
NONE
OFF
ON
ON
2-1
2-1
OPEN
OPEN
2-3
2-3
SPDT
DP
AS22
AS23
ON
ON
NONE
OFF
ON
ON
2-1 5-4
2-1 5-4
OPEN
OPEN
2-3 5-6
2-3 5-6
DPDT
CIRCUITS
1 ON NONE OFF
2 ON NONE ON
3 ON OFF ON
4 ON ON ON
2
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
AS22AH
POLES & CIRCUITS
A
ACTUATORS
A .098” (2.5mm) Long
B Flush
C .150” (3.8mm) Long
PC TERMINALS
P Straight
B Straight with Bracket
H Right Angle with Bracket
V Vertical with Bracket
Bracketed models are
ESD protected
*
*
*
*
.098” (2.5mm) Long
Actuator
31
INTERNAL
CONNECTION
1 3 4
6
2 5
(COM)
For 3 Throw (3-On)
Connected Terminals & Schematics External Connection
Pole Model Left Center Right
The SP3T model utilizes
a double pole base.
External
connections
must be
made
during eld
installation.
SP AS24
ON
2-1 5-4
ON
2-3 5-4
ON
2-3 5-6
1 (out) 4 (out)
6 (out)
2 (in)
3
5
External
Connection
1 (out) 4 (out) 6 (out)
2 (in)
3
5
External
Connection
2 (COM)
31
3 6
2 5
41
Common
(in)
(out)
(out)
(out)
External
Conn
1 (out) 4 (out) 6 (out)
2 (in)
3
5
External
Connection
12NEXT
