STAC250V2-500E
600 W, 250 V SuperDMOS transistor
Datasheet - production data

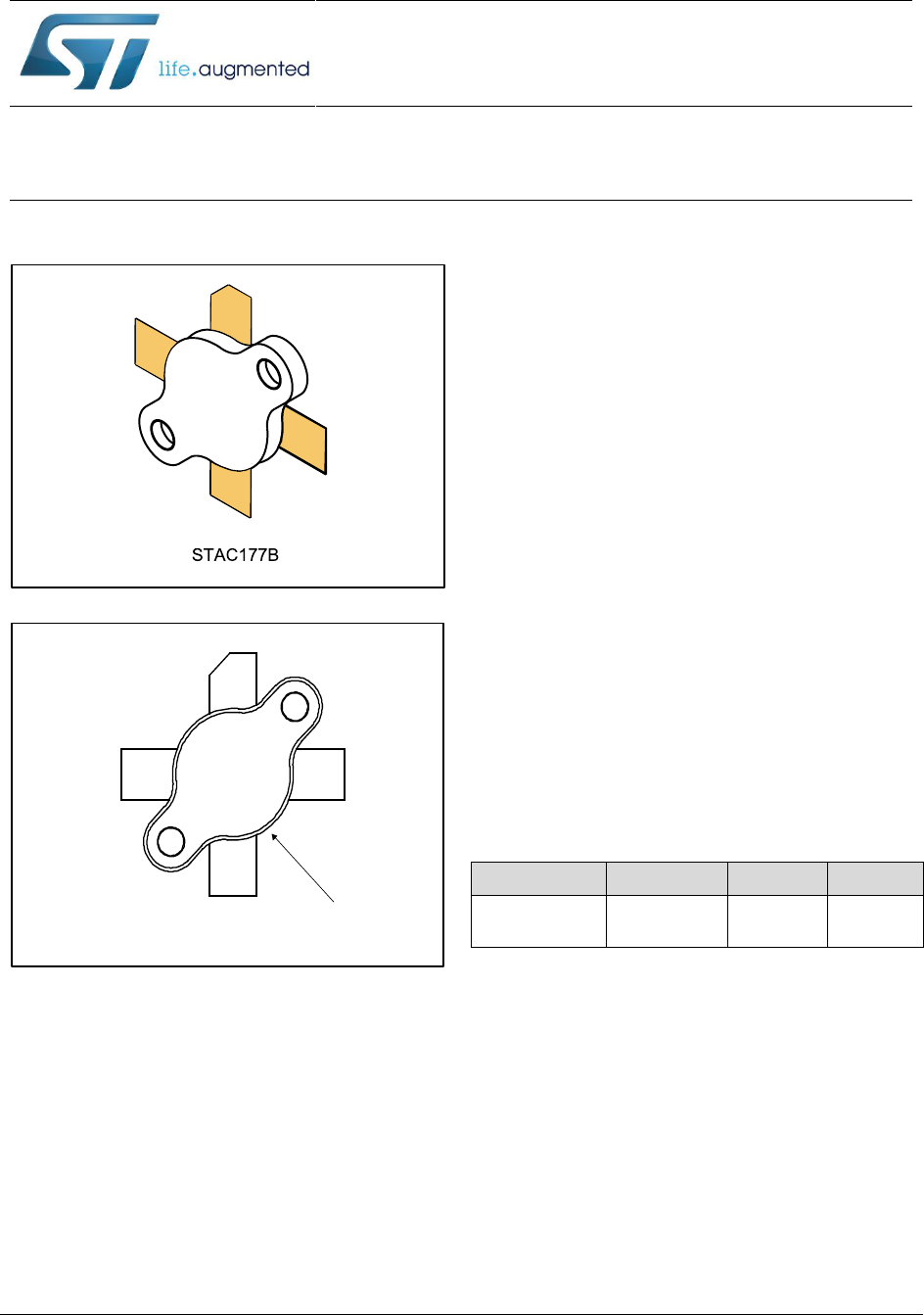

Figure 1: Pin connection
Features
Operating frequency up to 27 MHz
P
OUT
= 600 W typ. with 23 dB gain @
13.56 MHz/250 V
Designed for Class-AB, C, D and E
operation
V
(BR)DSS
> 1000 V
Housed in STAC
®
package, using air cavity
packaging technology
In compliance with the 2002/95/EC1
European Directive
Description
The STAC250V2-500E uses the latest RF Power
SuperDMOS technology specially designed for
150 V and 250 V industrial RF power Class-AB,
C, D and E generators such as PECVD, plasma
sputtering, flat panel and solar cell manufacturing
equipment. The STAC250V2-500E benefits from
the latest generation of STAC® air cavity
packaging, which exhibits a 25% lower thermal
resistance compared to equivalent ceramic
packages.
Table 1: Device summary
Order code
Package
Packing
STAC250V2-
500E
250V2-500
(1)
STAC177B
Plastic
tray
Notes:
(1)
For more details please refer to Section 6: "Marking,
packing and shipping specifications".
1 (drain)
2 (source)
3 (gate)
4 (source)
5 (source) on
backside
Contents
STAC250V2-500E
2/13
DocID026071 Rev 5
Contents
1 Electrical data .................................................................................. 3
1.1 Maximum ratings ............................................................................... 3
1.2 Thermal data ..................................................................................... 3
2 Electrical characteristics ................................................................ 4
2.1 Static ................................................................................................. 4
2.2 Dynamic ............................................................................................ 4
3 Impedance data ............................................................................... 6
4 Typical performance ....................................................................... 7
5 Package information ....................................................................... 9
5.1 STAC177B package information ....................................................... 9
6 Marking, packing and shipping specifications ............................ 11
7 Revision history ............................................................................ 12
STAC250V2-500E
Electrical data
DocID026071 Rev 5
3/13
1 Electrical data
1.1 Maximum ratings
(T
CASE
= 25 °C)
Table 2: Absolute maximum ratings
Symbol
Parameter
Value
Unit
V
(BR)DSS
Drain-source voltage
1000
V
V
GS
Gate-source voltage
± 20
V
T
J
Max. operating junction temperature
200
°C
T
STG
Storage temperature
-65 to +150
°C
1.2 Thermal data
Table 3: Thermal data
Symbol
Parameter
Value
Unit
R
thJC
Junction-case thermal resistance
0.14
°C/W
