7101J1ZQE2

Part # 7101J1ZQE2
Description
Category SWITCH
Availability Out of Stock
Qty 0
Qty Price
1 + $1.51000

Related Items

7101J1AQE2
C&K Components
SWITCH
7101J1AQE2
$4.75736
7101J1V3BE2
C&K Components
SWITCH
7101J1V3BE2
$5.25576

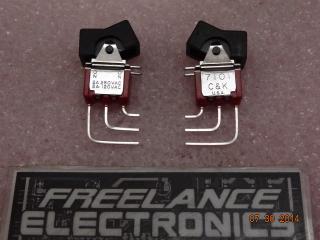

7101J1V5ME2
C&K Components
SWITCH
7101J1V5ME2
$15.16844
7101J1ZQ-BLK
C&K Components
SWITCH
7101J1ZQ-BLK

7101J26ZQE22
C&K Components
SWITCH
7101J26ZQE22
$8.88561
7101J50V8ME2
C&K Components
SWITCH
7101J50V8ME2
$12.61098


Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Our easy Build-A-Switch concept allows you to mix and match options to create the switch you need. Below is a complete listing
of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box. Switches
with standard options are shown on pages F-4 and F-5. Available options are shown and described on pages F-6 thru F-22.
For additional options not shown in catalog, consult Customer Service Center. All models have epoxy terminal seal and are
compatible with all “bottom-wash” PCB cleaning methods.
Build-A-Switch
Features/Benefits
Typical Applications
Multi-pole and multi-position
Wide variety of actuator and
termination options
Epoxy sealed terminals prevent
contamination during soldering
Telecommunications
Instrumentation
Medical equipment
Models Available
Switch Function
7101   
7103   
7201   
7301   
7401   
7105  
7107  
7108  
7109  
7203  
7205  
7207  
7208  
7209  
7211  
7213  
7215  
7303  
7305  
7307  
7308  
7309  
7403  
7405  
7407  
7408  
7409  
7411  
7413  
7415  
Actuator
J1 

J2 
J3 
J8 
J10 
J11   
J15    
J16  
J19   
J21   
J25  
J26    
J37   
J50 
J51   
J52     
J53  
J60 
J61    
J62     
J63  
J76    
J90 
J91    
J92     
J93  
Terminations
A     
AV2      
C   
Z   
A3     
AV3   
  
AW     
AW1     
AW3     
AW4     
V2   
V3   
V4   
V5     
V6   
V7   
V8   
V9   
V21    
V31    
V41    
V51    
V54    
V55    
V61    
V71    
V81    
V91    
W    
W1    
W3    
W4    
W5    
Z3  
Contact Material
B  
Q  
K 
M 
G   
L   
Seal
E  
I   
Actuator Color
2  
1 
3 
Frame Color
2  
NONE    
1 
3 
Metal Frame Color
(J11, J19, J21, J37 Actuators)
2  
1 
C  
S  
Typical Example: 7101 J1 Z Q E 2
Note: UL/CSA models
available, see page F-6.
Rocker and Lever Handle Switches
C&K 7000 Series
Rocker
F
F-3
www.ittcannon.com
ITT Industries
Cannon
SWITCHES WITH STANDARD OPTIONS
SPDT
7101J1ZQE2
DPDT
7201J1ZQE2
NOTE: For PC termination, replace ‘Z’ with ‘C’.
For panel mounting information, see page F-7.
NOTE: For PC termination, replace ‘Z’ with ‘C’.
For panel mounting information, see page F-7.
Rocker and Lever Handle Switches
C&K 7000 Series
Rocker
F
F-4
www.ittcannon.com
ITT Industries
Cannon
Specifications
CONTACT RATING: B contact material: 0.4 VA max. @ 20 V AC or
DC max. Q contact material: 5 AMPS @ 120 V AC or 28 V DC;
2 AMPS @ 250 V AC. See page F-22 for additional ratings.
ELECTRICAL LIFE: 7X01 and UX1 models: 100,000 make-and-break
cycles at full load. All other models: 40,000 cycles.
CONTACT RESISTANCE: Below 10 milliohms typ. initial @ 2-4
V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 10
9
ohms min.
DIELECTRIC STRENGTH: 1000 V RMS min. @ sea level.
OPERATING TEMPERATURE: –30
C to 85C.
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9 (1 hour steam aging).
NOTE: Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Materials
CASE: Glass filled nylon 6/6, flame retardant, heat stabilized, or
diallyl phthalate (DAP) (UL 94V-0).
ACTUATOR: Nylon, black.
FRAME (FRONT MOUNT): Nylon, black.
FRAME (REAR MOUNT): Spring steel, black.
BUSHING: Brass or zinc, nickel plated.
HOUSING: Stainless steel.
SWITCH SUPPORT: Brass or steel, tin plated.
END CONTACTS: B contact material: Copper alloy, with gold plate over
nickel plate. Q contact material: Coin silver, silver plated. See page
F-22 for additional contact materials.
CENTER CONTACTS & ALL TERMINALS: B contact material: Copper
alloy, with gold plate over nickel plate. Q contact material: Copper
alloy, silver plated. See page F-22 for additional contact materials.
TERMINAL SEAL: Epoxy.
HARDWARE: Mounting nuts & screws: Brass. Lockwasher: Stainless
steel. Standoff: Nylon standard, aluminum available, consult
Customer Service Center.
POS. 1 POS. 2 POS. 3
PART NUMBER
7101J1ZQE2
ON NONE ON
POS. 1 POS. 2 POS. 3
PART NUMBER
7201J1ZQE2
ON NONE ON
SWITCHES WITH STANDARD OPTIONS
4PDT
7401J1ZQE2
NOTE: For PC termination, replace ‘Z’ with ‘C’.
For panel mounting information, see page F-7.
7101J1ABE2
SPDT
SECTION A-A
NOTE: For PC mounting information, see page F-15.
7301J1AV2QE2
3PDT
SECTION A-A
NOTE: For PC mounting information, see page F-17.
3PDT
7301J1ZQE2
NOTE: For PC termination, replace ‘Z’ with ‘C’.
For panel mounting information, see page F-7.
Horizontal Actuation
Vertical Actuation
Rocker and Lever Handle Switches
C&K 7000 Series
Rocker
F
F-5
www.ittcannon.com
ITT Industries
Cannon
POS. 1 POS. 2 POS. 3
PART NUMBER
7301J1ZQE2
ON NONE ON
POS. 1 POS. 2 POS. 3
PART NUMBER
7401J1ZQE2
ON NONE ON
POS. 1 POS. 2 POS. 3
PART NUMBER
7101J1ABE2
7101J1AQE2
7103J1ABE2
ON
ON
ON
NONE
NONE
OFF
ON
ON
ON
POS. 1 POS. 2 POS. 3
PART NUMBER
7301J1AV2QE2
ON NONE ON
