Delta Electronics Corp.
Form No.
tMP—D029 Form Rev.
00
1. SPECIFICATION
1.1 Characters
Item Description
Scope
THIS SPECIFICATION DEFINES THE ELECTRICAL AND
MECHANICAL CHARACTERISTICS OF THE HEATSINK
Application
INTEL LGA2011 CPU HEATSINK
Specification
a: Thermal Resistance
0.24 ʻ̓C/W)(REF.)
b: total weight
430 g (REF.)
c: clip force
29.5 Kgf (REF.)

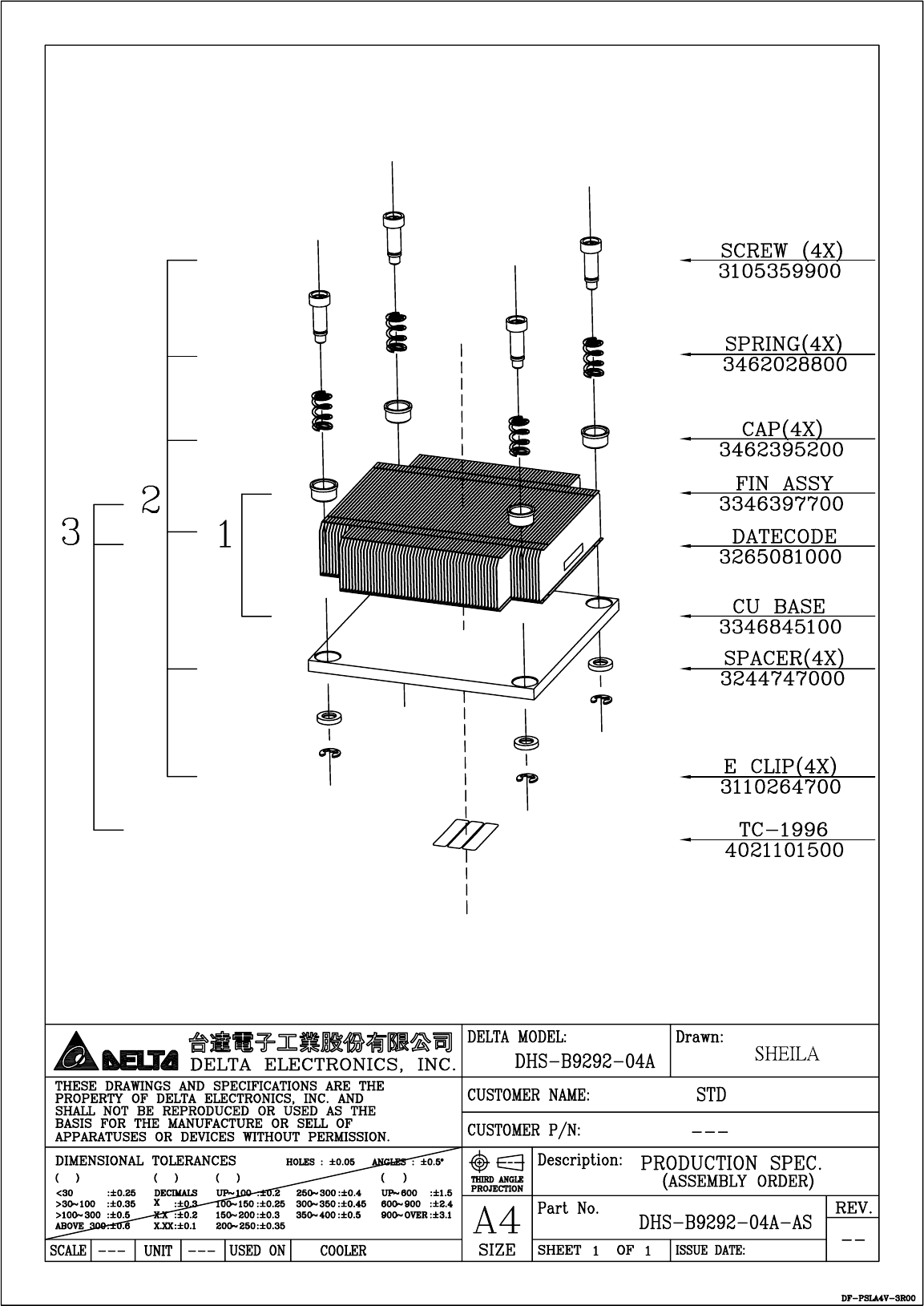

1.2 BOM
Item Part Name Material Part NO. Q’TY Remark
1 FIN AL 1050 3346397700 1PCE
2 CU BASE CU 1100 3346845100 1PCE
3 CAP SUS 304 3462395200 4PCE
4 SCREW SUS 304 3105359900 4PCE
5 SPRING ASTM A228 3462028800 4PCE
6 E CLIP SK7 3110264700 4PCE
7 SPACER POM 3244747000 4PCE
8 GREASE TC-1996 4021101500 0.308 g
9 EPE EPE 3501524000 1PCE
10 BOX PAPER 3518132100 1PCE
11 TRAY PET 3503125100 1PCE
12 PAD PAPER PAPER 3516261800 0.156PCE
13 CARTON PAPER 3513701700 0.031PCE
14 DATECODE POLYESTER 3265081000 1PCE
15 LABEL PAPER 3261447400 0.031PCE
